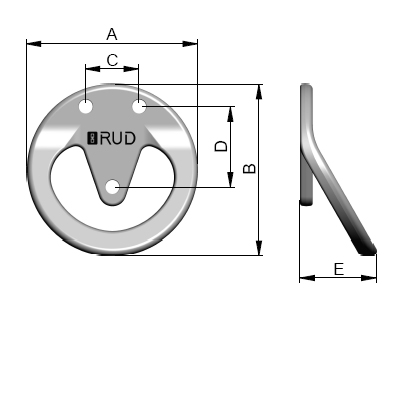

RoRo-Lashing point for bolting

  • Lashing- and connection device at road vehicles for sea transport on Ro/Ro ships.
  • Lashing point forged in one piece, noiseless
  • 100% crack detected
  • acc. to EN 29367-2, Resistance charakteristics with a proof force = 120 kN and a breaking force = 200 kN
  • Simple attachment with three bolts M12, quality 10.9
  • Surface: galvanized
  • Shapely design, appropriate to the load
  • Lightweight construction
  • Suitable for all common lashing means
  • The force contact point at the bracket has been chosen in such a way that the direction of load is in the centre of grafity of the bolts. Advantage: Minimizing the load of the bolte, use of a smaller bolt dimension.

Product variants (2)

Further information of the product
