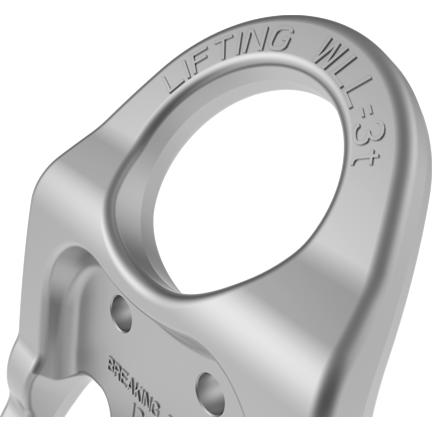

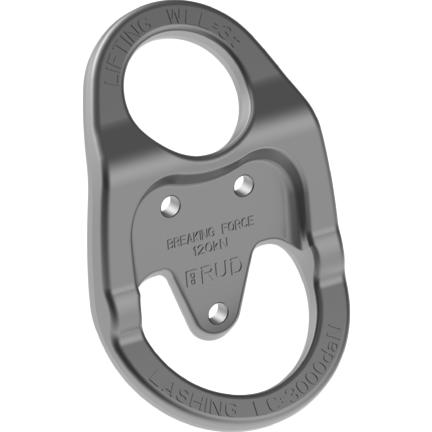

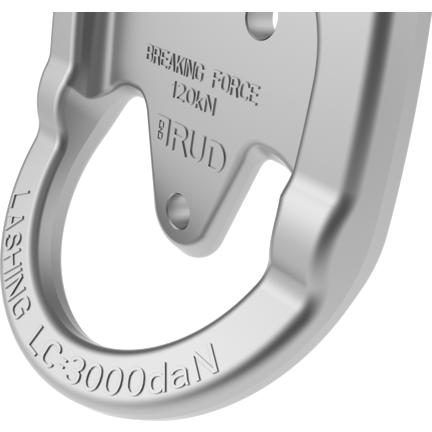

Combi-lashing and lifting point 3t / 3,000 daN
Combi-point for lifting and lashing.
- Forged from a single piece, no rattling noise or shaking even with strong vibrations or shocks
- Surface: electro-galvanised
- Load capacity when lifting in WLL (t), lashing capacity when lashing in LC (daN)
- 4-fold safety factor for lifting and lashing
- Suitable for all standard lashing equipment – also for double connection
Variantes de producto (2)
Combi-lashing and lifting point 3t / 3,000 daN con tornillos (7997727)
Datos técnicos
N.º de artículo: 7997727
| Atributo | Valor | Valor |
|---|---|---|
| Peso | 3.50 kg | 8.14 lbs |
| Capacidad de carga WLL | 3000 kg | 6610 lbs |

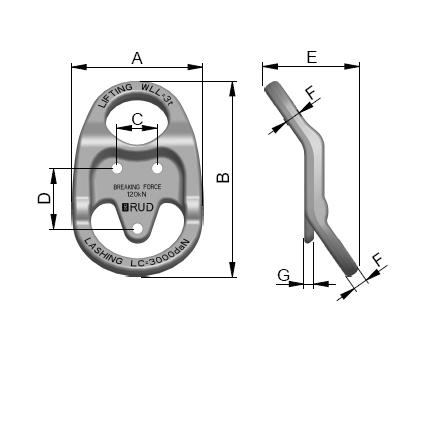

| A | 163 mm | 6-13/32" |
| B | 244 mm | 9-5/8" |
| C | 50 mm | 1-31/32" |
| D | 75 mm | 2-15/16" |
| E | 116 mm | 4-9/16" |
| F | 19 mm | 3/4" |
| G | 12 mm | 15/32" |
| 3000 daN |
Descargas de la variante del producto
Combi-lashing and lifting point 3t / 3,000 daN (7997059)
Datos técnicos
N.º de artículo: 7997059
| Atributo | Valor | Valor |
|---|---|---|
| Peso | 3.50 kg | 7.72 lbs |
| Capacidad de carga WLL | 3000 kg | 6600 lbs |
| A | 163 mm | 6-13/32" |
| B | 244 mm | 9-5/8" |
| C | 50 mm | 1-31/32" |
| D | 75 mm | 2-15/16" |
| E | 116 mm | 4-9/16" |
| F | 19 mm | 3/4" |
| G | 12 mm | 15/32" |
| 3000 daN |
