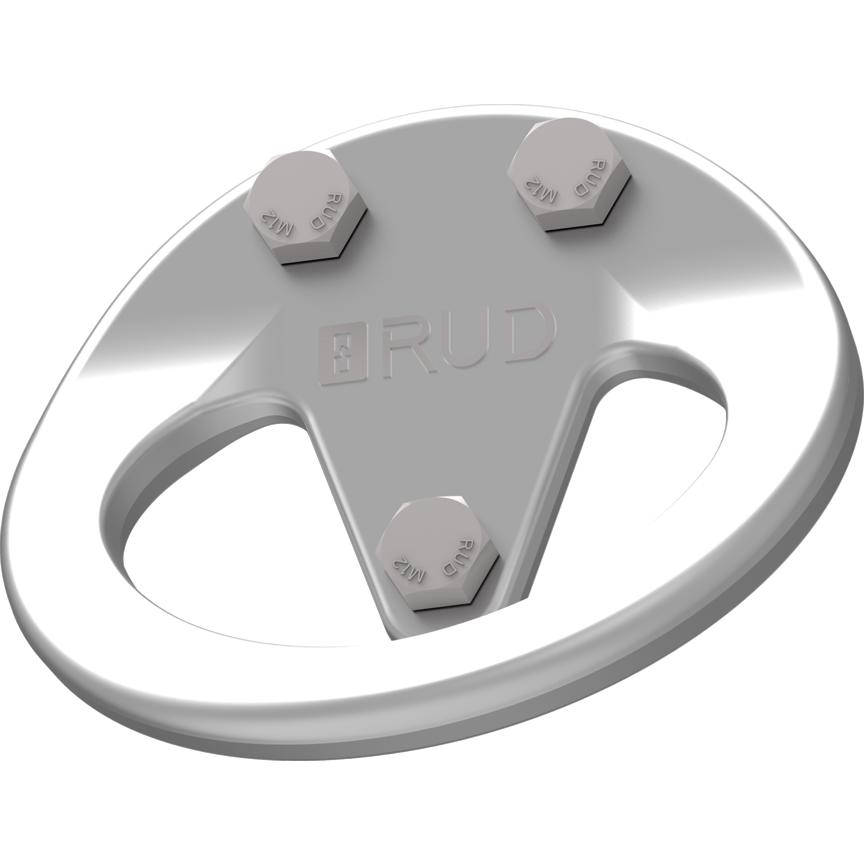

RoRo- anneau d´arrimage 6.000 daN
Lashing point for securing road vehicles for sea transport on Ro/Ro ships.
- Forged from a single piece, no rattling noise or shaking even with strong vibrations or shocks
- According to DIN EN 29367-2
- Surface: electro-galvanised
- Lightweight construction
- Suitable for all standard lashing equipment – also for double connection
Variantes de produit (2)
RoRo- anneau d´arrimage, 6.000 daN, avec vis (7997726)
Données techniques
N° d'article: 7997726

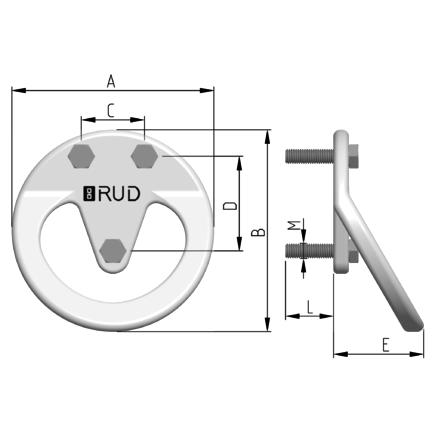

| Attribut | Valeur | Valeur |
|---|---|---|
| poids | 1.8 kg | 3.96 lbs |
| A | 160 mm | 6-13/32" |
| B | 160 mm | 6-13/32" |
| C | 50 mm | 1-31/32" |
| D | 75 mm | 2-15/16" |
| E | 72 mm | 2-2/32" |
| 6000 daN |
Téléchargement relatif à la variante de produit
RoRo- anneau d´arrimage, vissable, 6.000 daN (7994086)
Données techniques
N° d'article: 7994086
| Attribut | Valeur | Valeur |
|---|---|---|
| poids | 1.6 kg | 3.52 lbs |
| A | 160 mm | 6-13/32" |
| B | 160 mm | 6-13/32" |
| C | 50 mm | 1-31/32" |
| D | 75 mm | 2-15/16" |
| E | 72 mm | 2-2/32" |
| 6000 daN |
