Combi-point for lifting and lashing.
Product variant (2)
Combi-lashing and lifting point 3t / 3,000 daN
Article number: 7997727
Combi-lashing and lifting point 3t / 3,000 daN
Article number: 7997059
Article number: 7997727
| Attribute | Value |
|---|---|

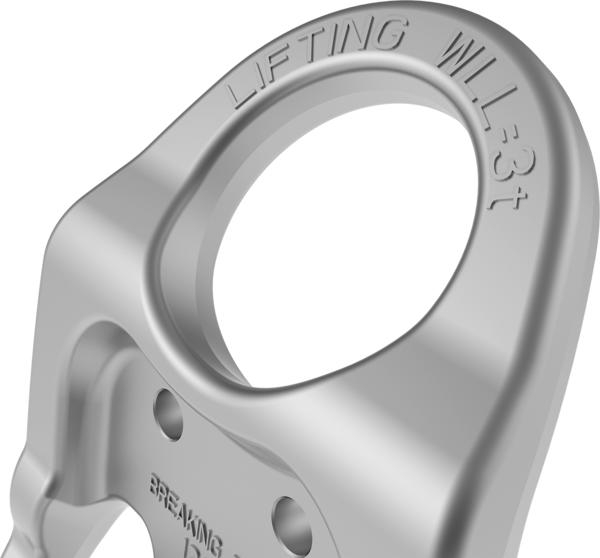

| WLL | |
| Weight | 3,5 kg |

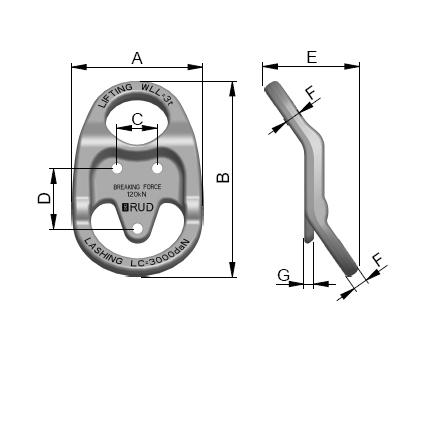

| size A | 163 mm |
| size B | 244 mm |
| size C | 50 mm |
| size D | 75 mm |
| size E | 116 mm |
| size F | 19 mm |
| size G | 12 mm |

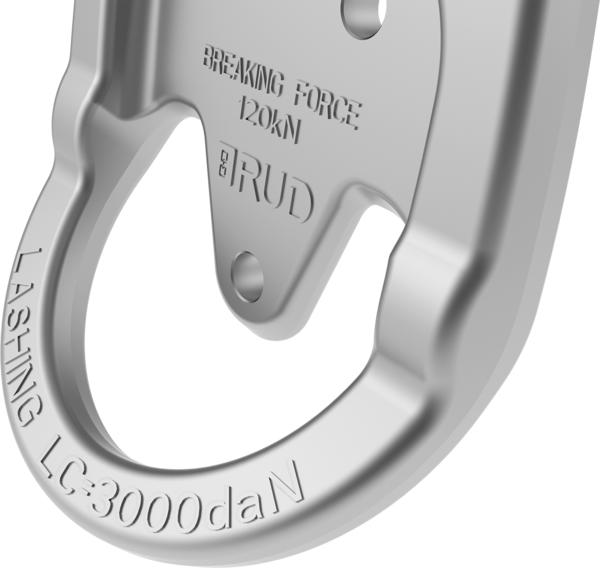

| Permissible LC | 3.000 daN |
Please use the contact form for further questions about our products and services.
Zurr-Anschlagpunkt-kpl - DXF 2D CAD File
(ZIP, 83 KB)
Zurr-Anschlagpunkt-kpl - IGES 3D CAD File
(ZIP, 653 KB)
Zurr-Anschlagpunkt-kpl - STEP 3D CAD File
(ZIP, 499 KB)
Article number: 7997059
| Attribute | Value |
|---|---|
| WLL | |
| Weight | 3,5 kg |
| size A | 163 mm |
| size B | 244 mm |
| size C | 50 mm |
| size D | 75 mm |
| size E | 116 mm |
| size F | 19 mm |
| size G | 12 mm |
| Permissible LC | 3.000 daN |
Please use the contact form for further questions about our products and services.
Zurr-Anschlagpunkt-oS - DXF 2D CAD File
(ZIP, 68 KB)
Zurr-Anschlagpunkt-oS - IGES 3D CAD File
(ZIP, 504 KB)
Zurr-Anschlagpunkt-oS - STEP 3D CAD File
(ZIP, 448 KB)
