ASPA Adaptor

Thread adaptor

Product variant (11)

Thread adapter ASPA-M16/M8

Article number: 7994782

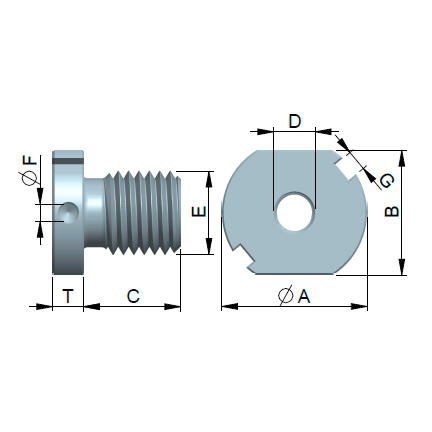

Attribute	Value
size A	35 mm
size B	30 mm
size C	20 mm
size D
size D
size E	16 mm
size F	5 mm
size G	6 mm
size M
pitch T	8 mm

Related downloads

Please use the contact form for further questions about our products and services.

ASPA_M16-M8_7994782_dxf.zip

(ZIP, 13 KB)
ASPA_M16-M8_7994782_igs.zip

(ZIP, 133 KB)
ASPA_M16-M8_7994782_stp.zip

(ZIP, 130 KB)
ASPA-Gewindeadapter_DE_8503494_V05_FG.pdf

(PDF, 624 KB)

Thread adapter ASPA-M20/M10

Article number: 7995682

Attribute	Value
size A	38 mm
size B	32 mm
size C	24 mm
size D
size D
size E	20 mm
size F	5 mm
size G	6 mm
size M
pitch T	9 mm

Related downloads

Please use the contact form for further questions about our products and services.

ASPA_M20-M10_7995682_dxf.zip

(ZIP, 13 KB)
ASPA_M20-M10_7995682_igs.zip

(ZIP, 139 KB)
ASPA_M20-M10_7995682_stp.zip

(ZIP, 137 KB)
ASPA-Gewindeadapter_DE_8503494_V05_FG.pdf

(PDF, 624 KB)

Thread adapter ASPA-M24/M12

Article number: 7993856

Attribute	Value
size A	42 mm
size B	36 mm
size C	28 mm
size D
size D
size E	24 mm
size F	5 mm
size G	6 mm
size M
pitch T	9 mm

Related downloads

Please use the contact form for further questions about our products and services.

ASPA_M24-M12_7993856_dxf.zip

(ZIP, 11 KB)
ASPA_M24-M12_7993856_igs.zip

(ZIP, 113 KB)
ASPA_M24-M12_7993856_stp.zip

(ZIP, 110 KB)
ASPA-Gewindeadapter_DE_8503494_V05_FG.pdf

(PDF, 624 KB)

Thread adapter ASPA-M30/M16

Article number: 7993857

Attribute	Value
size A	51 mm
size B	46 mm
size C	36 mm
size D
size D
size E	30 mm
size F	6 mm
size G	7 mm
size M
pitch T	10 mm

Related downloads

Please use the contact form for further questions about our products and services.

ASPA_M30-M16_7993857_dxf.zip

(ZIP, 14 KB)
ASPA_M30-M16_7993857_igs.zip

(ZIP, 145 KB)
ASPA_M30-M16_7993857_stp.zip

(ZIP, 144 KB)
ASPA-Gewindeadapter_DE_8503494_V05_FG.pdf

(PDF, 624 KB)

Thread adapter ASPA-M36/M20

Article number: 7993858

Attribute	Value
size A	65 mm
size B	55 mm
size C	43 mm
size D
size D
size E	36 mm
size F	6 mm
size G	8 mm
size M
pitch T	12 mm

Related downloads

Please use the contact form for further questions about our products and services.

ASPA_M36-M20_7993858_dxf.zip

(ZIP, 15 KB)
ASPA_M36-M20_7993858_igs.zip

(ZIP, 151 KB)
ASPA_M36-M20_7993858_stp.zip

(ZIP, 151 KB)
ASPA-Gewindeadapter_DE_8503494_V05_FG.pdf

(PDF, 624 KB)

Show 1-5 of 11

« ‹ 1 2 3 › »
