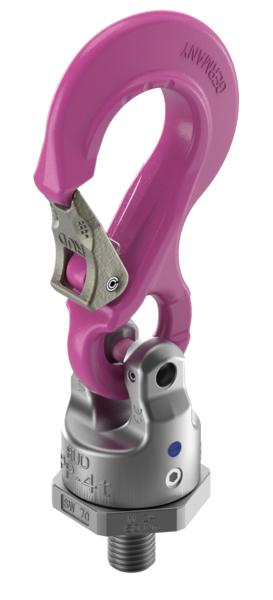

PP-S PowerPoint® universal connection, UNC thread

PowerPoint®-Star

  • Large WLL range 0.63 t – 8 t.
  • PP-S: universal connection with hook for ring suspensions, round slings, wire ropes, hook suspensions.
  • So-PP-S, So-PP-B, So-PP-VIP: variable thread lengths.
  • Rotatable 90° to the bolt-on direction under WLL.
  • Lowest kinking possibility due to cardan joint.
  • PP-S, So-PP-S: The shape of the hook tip prevents hinging in small openings and the WLL on the hook tip.
  • PP-S: Robust forged safety latch.

Product variant (7)

PowerPoint PP-S-0.63t-1/2"-13UNC with max. length F=18 mm

Article number: 8600581

PowerPoint PP-S-1.5t-5/8"-11UNC with max. length F=24 mm

Article number: 8600582

PowerPoint PP-S-2.5t-3/4"-10UNC with max. length F=30 mm

Article number: 8600583

PowerPoint PP-S-2,5t-7/8"-9UNC with Max length F=30 mm

Article number: 8600583

PowerPoint PP-S-4t-1"-8UNC with max. length F=36 mm

Article number: 8600584

Show 1-5 of 7
