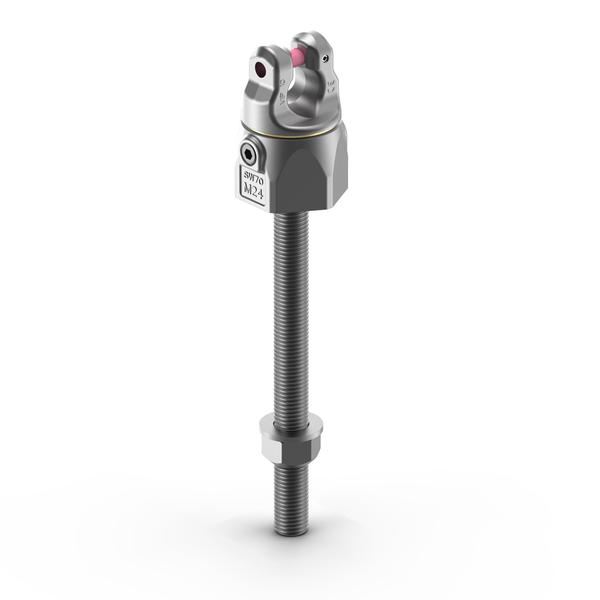

PP-VIP PowerPoint® direct VIP chain connection, metric thread
Easy to rotate and always the right connection
- Large WLL range 0.63 t – 8 t.

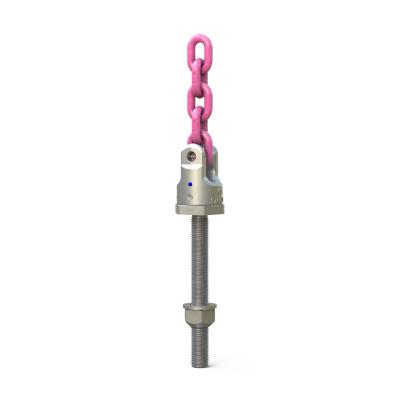

- Direct chain connection.
- So-PP-VIP: variable thread lengths.
- Rotatable 90° to the bolt-on direction under WLL.
- Lowest kinking possibility due to cardan joint.
- Universal and non-mix-up clevis connection for easy construction with chains, hooks and eye.
Product variant (20)
So-PowerPoint PP-VIP-10/3.5t-M27 with special length (27-92)
Article number: 8600323

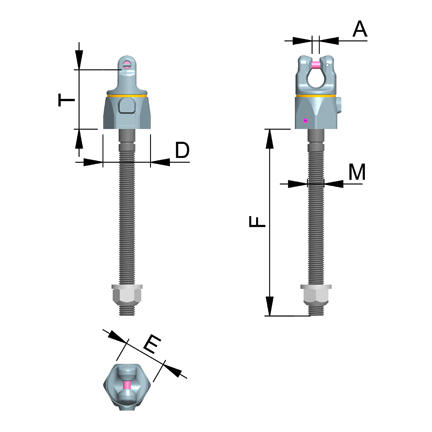

| Attribute | Value |
|---|---|
| WLL | 3.500 kg |
| Weight | |
| size A | 10 mm |
| size B | |
| size C | |
| size D | 81 mm |
| size E | 70 mm |
| size F vario | 27-92 |
| size M | M27 |
| pitch T | 94 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-3,5t-M27-MAX - DXF 2D CAD File
(ZIP, 23 KB)
-
So-PP-VIP-3,5t-M27-MAX - IGES 3D CAD File
(ZIP, 463 KB)
-
So-PP-VIP-3,5t-M27-MAX - STEP 3D CAD File
(ZIP, 426 KB)
-
Instruction handbook Special-Power-Point
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
So-PowerPoint PP-VIP-13/5t-M30 with special length (30-330)
Article number: 8600324
| Attribute | Value |
|---|---|
| WLL | 5.000 kg |
| Weight | |
| size A | 13 mm |
| size B | |
| size C | |
| size D | 99 mm |
| size E | 85 mm |
| size F vario | 30-330 |
| size M | M30 |
| pitch T | 108 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-5t-M30-MAX - DXF 2D CAD File
(ZIP, 25 KB)
-
So-PP-VIP-5t-M30-MAX - IGES 3D CAD File
(ZIP, 512 KB)
-
So-PP-VIP-5t-M30-MAX - STEP 3D CAD File
(ZIP, 477 KB)
-
Instruction handbook Special-Power-Point
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
So-PowerPoint PP-VIP-16/8t-M36 with variable length (36-300)
Article number: 8600305
| Attribute | Value |
|---|---|
| WLL | 8.000 kg |
| Weight | |
| size A | 16 mm |
| size B | |
| size C | |
| size D | 100 mm |
| size E | 90 mm |
| size F vario | 36-300 |
| size M | M36 |
| pitch T | 100 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-8t-M36-MAX - DXF 2D CAD File
(ZIP, 18 KB)
-
So-PP-VIP-8t-M36-MAX - IGES 3D CAD File
(ZIP, 345 KB)
-
So-PP-VIP-8t-M36-MAX - STEP 3D CAD File
(ZIP, 297 KB)
-
Instruction handbook Special-Power-Point
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
So-PowerPoint PP-VIP-16/8t-M39 with variable length (39-300)
Article number: 8600305
| Attribute | Value |
|---|---|
| WLL | 8.000 kg |
| Weight | |
| size A | 16 mm |
| size B | |
| size C | |
| size D | 100 mm |
| size E | 90 mm |
| size F vario | 39-300 |
| size M | M39 |
| pitch T | 100 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-8t-M39-MAX - DXF 2D CAD File
(ZIP, 18 KB)
-
So-PP-VIP-8t-M39-MAX - IGES 3D CAD File
(ZIP, 349 KB)
-
So-PP-VIP-8t-M39-MAX - STEP 3D CAD File
(ZIP, 300 KB)
-
Instruction handbook Special-Power-Point
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
So-PowerPoint PP-VIP-16/8t-M42 with variable length (42-300)
Article number: 8600305
| Attribute | Value |
|---|---|
| WLL | 8.000 kg |
| Weight | |
| size A | 16 mm |
| size B | |
| size C | |
| size D | 100 mm |
| size E | 90 mm |
| size F vario | 42-300 |
| size M | M42 |
| pitch T | 100 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-8t-M42-MAX - DXF 2D CAD File
(ZIP, 18 KB)
-
So-PP-VIP-8t-M42-MAX - IGES 3D CAD File
(ZIP, 345 KB)
-
So-PP-VIP-8t-M42-MAX - STEP 3D CAD File
(ZIP, 297 KB)
-
Instruction handbook Special-Power-Point
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
