VRS STARPOINT Pipe thread ISO 228-1
Pipe thread.
Product variant (8)
STARPOINT VRS-0.75t-G1/4"
Article number: 7999269

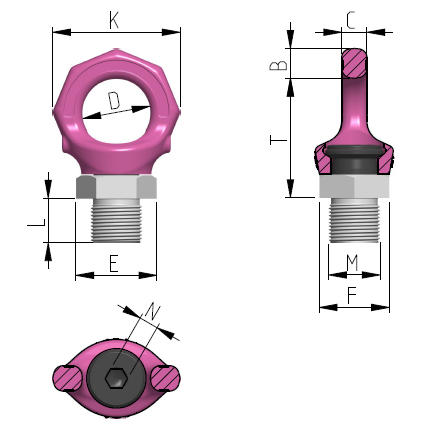

| Attribute | Value |
|---|---|
| WLL | 750 kg |
| Weight | 0,19 kg |
| size B | 13 mm |
| size C | 10 mm |
| size D | 30 mm |
| size E | 30 mm |
| size F | |
| size G | 34 mm |
| size I | 19,8 mm |
| size K | 56 mm |
| size L | 18 mm |
| size M | G 1/4" |
| size N | 8 mm |
| pitch T | 42 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 32 KB)
-
(ZIP, 737 KB)
-
(ZIP, 363 KB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
STARPOINT VRS-0.75t-G1/2"
Article number: 7998682
| Attribute | Value |
|---|---|
| WLL | 750 kg |
| Weight | 0,28 kg |
| size B | 13 mm |
| size C | 10 mm |
| size D | 30 mm |
| size E | 35 mm |
| size F | 30 mm |
| size I | 30 mm |
| size K | 56 mm |
| size L | 20 mm |
| size M | G 1/2" |
| size N | 8 mm |
| pitch T | 52 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 34 KB)
-
(ZIP, 791 KB)
-
(ZIP, 390 KB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
STARPOINT VRS-1.5t-G3/4"
Article number: 7998880
| Attribute | Value |
|---|---|
| WLL | 1.500 kg |
| Weight | 0,49 kg |
| size B | 15 mm |
| size C | 13 mm |
| size D | 35 mm |
| size E | 42 mm |
| size F | 36 mm |
| size I | 36 mm |
| size K | 65 mm |
| size L | 23 mm |
| size M | G 3/4" |
| size N | 10 mm |
| pitch T | 61 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 31 KB)
-
(ZIP, 702 KB)
-
(ZIP, 361 KB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
STARPOINT VRS-1.5t-G1"
Article number: 7999163
| Attribute | Value |
|---|---|
| WLL | 1.500 kg |
| Weight | 0,63 kg |
| size B | 15 mm |
| size C | 13 mm |
| size D | 35 mm |
| size E | 47 mm |
| size F | 41 mm |
| size I | 41 mm |
| size K | 65 mm |
| size L | 32 mm |
| size M | G 1" |
| size N | 10 mm |
| pitch T | 61 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 31 KB)
-
(ZIP, 665 KB)
-
(ZIP, 338 KB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
STARPOINT VRS-1.5t-G1 1/4"
Article number: 7903732
| Attribute | Value |
|---|---|
| WLL | 1.500 kg |
| Weight | 0,92 kg |
| size B | 15 mm |
| size C | 13 mm |
| size D | 35 mm |
| size E | 58 mm |
| size F | 50 mm |
| size I | 50 mm |
| size K | 65 mm |
| size L | 40 mm |
| size M | G 1 1/4" |
| size N | 10 mm |
| pitch T | 64 mm |
