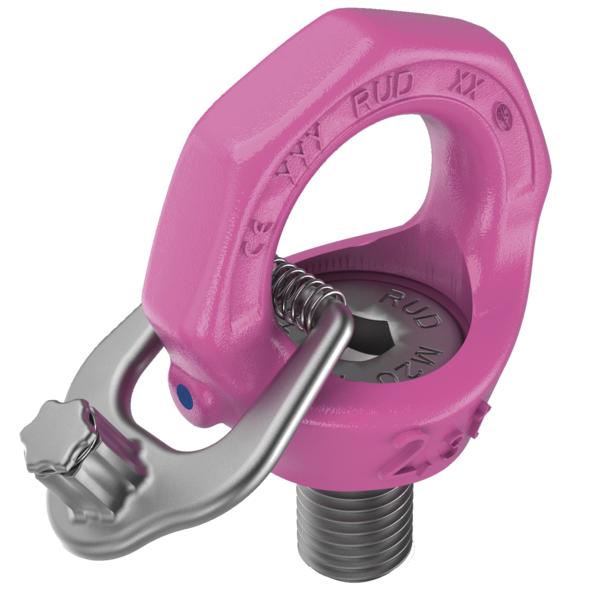

VRS STARPOINT Pipe thread ISO 228-1
Pipe thread.
Product variant (8)
STARPOINT VRS-1.5t-G2"
Article number: 7999164
| Attribute | Value |
|---|---|
| WLL | 1.500 kg |
| Weight | 1,5 kg |
| size B | 15 mm |
| size C | 13 mm |
| size D | 35 mm |
| size E | 81 mm |
| size F | 70 mm |
| size I | 70 mm |
| size K | 65 mm |
| size L | 45 mm |
| size M | G 2" |
| size N | 10 mm |
| pitch T | 64 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 30 KB)
-
(ZIP, 679 KB)
-
(ZIP, 346 KB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
STARPOINT VRS-2.3t-G2"
Article number: 7900433
| Attribute | Value |
|---|---|
| WLL | 2.300 kg |
| Weight | 1,89 kg |
| size B | 17 mm |
| size C | 16 mm |
| size D | 40 mm |
| size E | 81 mm |
| size F | 70 mm |
| size I | 70 mm |
| size K | 76 mm |
| size L | 45 mm |
| size M | G 2" |
| size N | 12 mm |
| pitch T | 73 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 35 KB)
-
(ZIP, 817 KB)
-
(ZIP, 404 KB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
STARPOINT VRS-F-12t-G1 1/2"
Article number: 7901254
| Attribute | Value |
|---|---|
| WLL | 12.000 kg |
| Weight | 8,18 kg |
| size B | 42 mm |
| size C | 38 mm |
| size D | 96 mm |
| size E | 101 mm |
| size F | |
| size G | 128 mm |
| size K | 179 mm |
| size L | 72 mm |
| size M | G 1 1/2" |
| size N | 27 mm |
| pitch T | 138 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 28 KB)
-
(ZIP, 615 KB)
-
(ZIP, 303 KB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
-
VRS-Rohrzollgewinde_EN_7903258_V05_FG.pdf
(PDF, 2 MB)
