VRS with hexagon extension
Product variant (4)

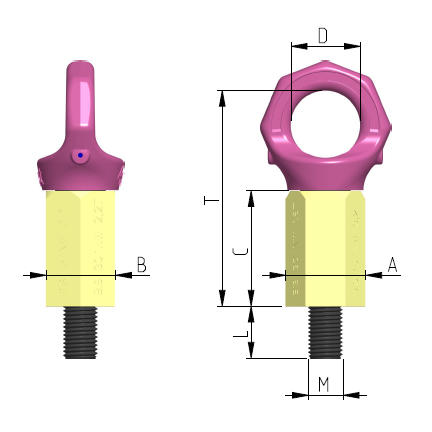

VRS-M8-M30 with hexagon extension with C up to 300 mm
Article number: 8600620
| Attribute | Value |
|---|---|
| WLL | |
| Weight | |
| size C | 300 mm |
| size F vario | 50-300 |
| size L vario | 18-36 |
| size M | M8-M30 |
Related downloads
Please use the contact form for further questions about our products and services.
VRS-M12 with hexagonal spacer 100 mm - SW 30
Article number: 7906187
| Attribute | Value |
|---|---|
| WLL | 250 kg |
| Weight | 0,81 kg |
| size A | 34,5 mm |
| size B | 30 mm |
| size C | 100 mm |
| size D | 30 mm |
| size E | 10 mm |
| size F | 127 mm |
| size L | 18 mm |
| size M | M12 |
| pitch T | 142 mm |
Related downloads
Please use the contact form for further questions about our products and services.
VRS-M16 with hexagonal spacer 97 mm - SW 36
Article number: 7904862
| Attribute | Value |
|---|---|
| WLL | 500 kg |
| Weight | 1,2 kg |
| size A | 41,5 mm |
| size B | 36 mm |
| size C | 97 mm |
| size D | 35 mm |
| size E | 14 mm |
| size F | 129 mm |
| size L | 23 mm |
| size M | M16 |
| pitch T | 154 mm |
Related downloads
Please use the contact form for further questions about our products and services.
VRS-M20 with hexagonal spacer 100 mm - SW 46
Article number: 7904863
| Attribute | Value |
|---|---|
| WLL | 1.000 kg |
| Weight | 2,02 kg |
| size A | 53 mm |
| size B | 46 mm |
| size C | 100 mm |
| size D | 40 mm |
| size E | 16 mm |
| size F | 137 mm |
| size L | 30 mm |
| size M | M20 |
| pitch T | 158 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
