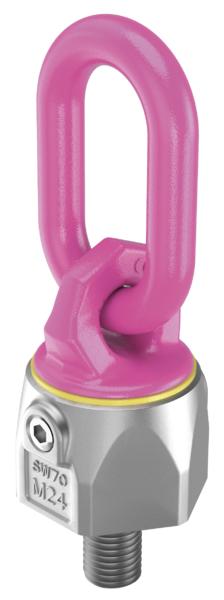

VWBG-V Load ring, metric fine thread with variable length

Metric fine thread with variable length

  • Large WLL range 0.3 t – 5 t
  • Clear indication of the minimum WLL for all loading directions. Higher WLL by optimised attachment or application.
  • Rotatable 90° to the bolt-on direction under rated WLL.
  • Variable bolt lengths available for use in threaded and through holes.
  • Non-removable special bolt (do not use unsuitable standard screws).
  • RUD bolts with special corrosion protection Corrud-DT.
  • Large clearance between the bolt-on surface and load to prevent damage.

Product variant (8)

Swivel bracket-Vario VWBG-V-0.6t-M12x1.5 with special length (12-55)

Article number: 8600332

Swivel bracket-Vario VWBG-V-1t-M14x1.5 with special length (14-65)

Article number: 8600337

Swivel bracket-Vario VWBG-V-1.3t-M16x1.5 with special length (16-70)

Article number: 8600333

Swivel bracket-Vario VWBG-V-1.8t-M18x1.5 with special length (18-83)

Article number: 8600338

Swivel bracket-Vario VWBG-V-2t-M20x1.5 with special length (20-88)

Article number: 8600334

Show 1-5 of 8
