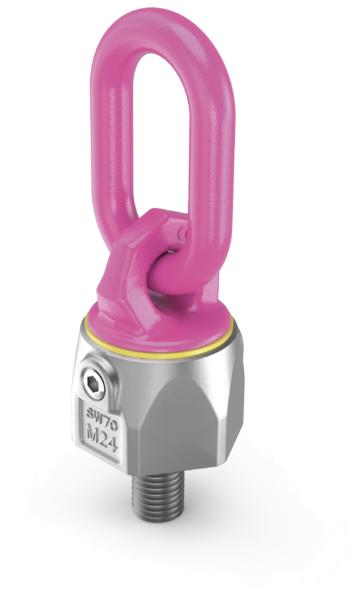

VWBG-V Load ring, metric thread
Diversity, no matter how you turn it
- Large WLL range 0.3 t – 5 t
- Clear indication of the minimum WLL for all loading directions. Higher WLL by optimised attachment or application.
- Rotatable 90° to the bolt-on direction under rated WLL.
- Variable bolt lengths available for use in threaded and through holes.
- Non-removable special bolt (do not use unsuitable standard screws).
- RUD bolts with special corrosion protection Corrud-DT.
- Large clearance between the bolt-on surface and load to prevent damage.
Product variant (11)
Swivel bracket-Vario VWBG-V-0.3t-M8
Article number: 7103720
| Attribute | Value |
|---|---|
| WLL | 300 kg |
| Weight | 0,18 kg |
| size A | 8 mm |
| size B | 31 mm |
| size C | 29 mm |
| size D | 30 mm |
| size E | 27 mm |
| size F | 13 mm |
| size G | 36 mm |
| size M | M8 |
| pitch T | 76 mm |
