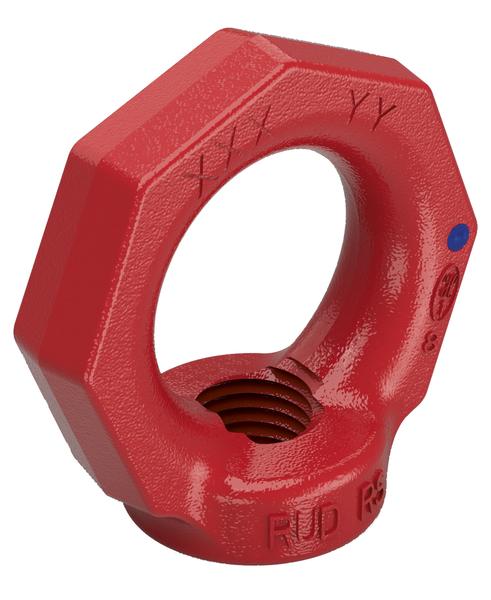

RM Eye nut, pipe thread ISO 228-1
pipe thread ISO 228-1.
Product variant (4)
Ring nut rigid RM-0.4t-G1/4" ISO 228-1
Article number: 7998753

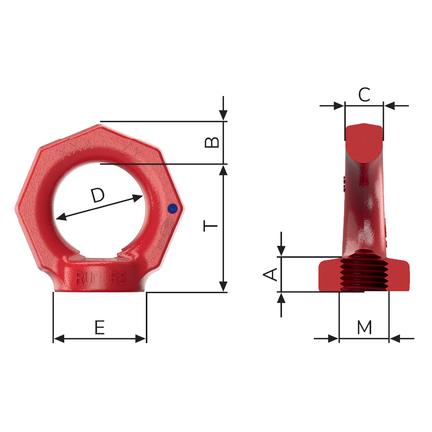

| Attribute | Value |
|---|---|
| WLL | 400 kg |
| Weight | 0,16 kg |
| size A | 14 mm |
| size B | 13 mm |
| size C | 12 mm |
| size D | 30 mm |
| size E | 30 mm |
| size M | G 1/4" |
| pitch T | 41 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 21 KB)
-
(ZIP, 311 KB)
-
(ZIP, 262 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
Ring nut rigid RM-1.5t-G1/2" ISO 228-1
Article number: 7998754
| Attribute | Value |
|---|---|
| WLL | 1.500 kg |
| Weight | 0,39 kg |
| size A | 18 mm |
| size B | 17 mm |
| size C | 16 mm |
| size D | 40 mm |
| size E | 40 mm |
| size M | G 1/2" |
| pitch T | 55 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 19 KB)
-
(ZIP, 282 KB)
-
(ZIP, 239 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
Rigid ring nut RM-2t-G3/4" ISO 228-1
Article number: 7998755
| Attribute | Value |
|---|---|
| WLL | 2.000 kg |
| Weight | 0,74 kg |
| size A | 22 mm |
| size B | 21 mm |
| size C | 20 mm |
| size D | 50 mm |
| size E | 50 mm |
| size M | G 3/4" |
| pitch T | 70 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 21 KB)
-
(ZIP, 295 KB)
-
(ZIP, 247 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
Rigid ring nut RM-3t-G1" ISO 228-1
Article number: 7907850
| Attribute | Value |
|---|---|
| WLL | 3.000 kg |
| Weight | 1,32 kg |
| size A | 25 mm |
| size B | 26 mm |
| size C | 24 mm |
| size D | 60 mm |
| size E | 60 mm |
| size M | G 1" |
| pitch T | 87 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 19 KB)
-
(ZIP, 277 KB)
-
(ZIP, 234 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
-
(PDF, 559 KB)
