Socket wrench for starpoint VRS
Socket key.
Product variant (11)
RUD hexagon socket wrench SW 17 cranked for VRS-M30, M33
Article number: 7902078

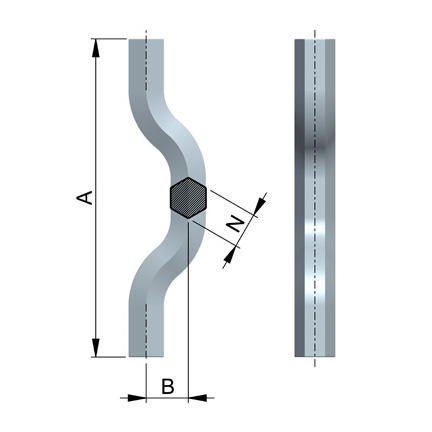

| Attribute | Value |
|---|---|
| WLL | |
| Weight | 0,47 kg |
| size A | 152 mm |
| size B | 21 mm |
| size D | 3/4" |
| size N | 17 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
6kt-Steckschluessel_VRS_SW17_igs.zip
(ZIP, 47 KB)
-
6kt-Steckschluessel_VRS_SW17_stp.zip
(ZIP, 26 KB)
-
PDF-Info-6kt-Steckschlüssel gekr. f. VRS-M30+M33-en
(PDF, 54 KB)
-
PDF-Info-6kt-Steckschlüssel gekr. f. VRS-M30+M33-fr
(PDF, 55 KB)
-
PDF-Info-6kt-Steckschlüssel gekr. f. VRS-M30+M33-it
(PDF, 55 KB)
-
PDF-Info-6kt-Steckschlüssel gekr. f. VRS-M30+M33-es
(PDF, 55 KB)
RUD hexagon socket wrench SW 22 cranked for VRS-M36
Article number: 7902079
| Attribute | Value |
|---|---|
| WLL | |
| Weight | 1,08 kg |
| size A | 192 mm |
| size B | 26 mm |
| size D | 1" |
| size N | 22 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
6kt-Steckschluessel_VRS_SW22_igs.zip
(ZIP, 48 KB)
-
6kt-Steckschluessel_VRS_SW22_stp.zip
(ZIP, 26 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M36-en
(PDF, 54 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M36-fr
(PDF, 55 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M36-it
(PDF, 54 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M36-es
(PDF, 54 KB)
RUD hexagon socket wrench SW 24 cranked for VRS-M42
Article number: 7902080
| Attribute | Value |
|---|---|
| WLL | |
| Weight | 1,22 kg |
| size A | 215 mm |
| size B | 29 mm |
| size D | 1" |
| size N | 24 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
6kt-Steckschluessel_VRS_SW24_igs.zip
(ZIP, 46 KB)
-
6kt-Steckschluessel_VRS_SW24_stp.zip
(ZIP, 25 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M42-en
(PDF, 54 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M42-fr
(PDF, 55 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M42-it
(PDF, 55 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M42-es
(PDF, 55 KB)
RUD hexagon socket wrench SW 27 cranked for VRS-M48
Article number: 7902081
| Attribute | Value |
|---|---|
| WLL | |
| Weight | 2 kg |
| size A | 228 mm |
| size B | 32,5 mm |
| size D | 1" |
| size N | 27 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
6kt-Steckschluessel_VRS_SW27_igs.zip
(ZIP, 46 KB)
-
6kt-Steckschluessel_VRS_SW27_stp.zip
(ZIP, 25 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M48-en
(PDF, 54 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M48-fr
(PDF, 55 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M48-it
(PDF, 55 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M48-es
(PDF, 55 KB)
RUD hexagon socket wrench SW 32 cranked for VRS-M56
Article number: 7908744
| Attribute | Value |
|---|---|
| WLL | |
| Weight | 2,41 kg |
| size A | 324 mm |
| size B | 38 mm |
| size N | 32 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
6kt-Steckschluessel_VRS_SW32_igs.zip
(ZIP, 214 KB)
-
6kt-Steckschluessel_VRS_SW32_stp.zip
(ZIP, 163 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M56-en
(PDF, 54 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M56-fr
(PDF, 55 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M56-it
(PDF, 54 KB)
-
PDF-Info-6kt-Steckschlüssel gekröpft f. VRS-M56-es
(PDF, 54 KB)
