VLBG-PLUS Load ring, metric thread
Tried and tested – full WLL in all directions
- Large WLL range 0.63 t – 20 t.
- Captive but exchangeable ICE-Bolt made of patented steel up to size M24 with special corrosion protection Corrud-DT. Safe deep temperature usage; improved toughness meaning higher bending strength and lower wear occurrence.
- The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state.
- DNV certification from size M30.
Product variant (13)
VLBG-PLUS-3.5t-M20 load frame with ICE screw
Article number: 8504657

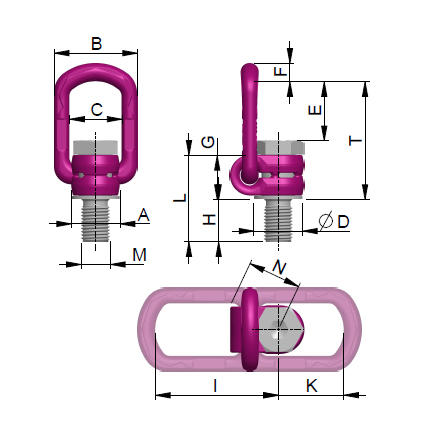

| Attribute | Value |
|---|---|
| WLL | 3.500 kg |
| Weight | 1,3 kg |
| size A | 50 mm |
| size B | 82 mm |
| size C | 54 mm |
| size D | 45 mm |
| size E | 55 mm |
| size F | 17 mm |
| size G | 43 mm |
| size H | 32 mm |
| size I | 113 mm |
| size K | 64 mm |
| size L | 75 mm |
| size M | M20 |
| size N | 48 mm |
| pitch T | 110 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 50 KB)
-
(ZIP, 576 KB)
-
(ZIP, 497 KB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_IT_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_FR_7907302_V07_FG.pdf
(PDF, 1 MB)
VLBG-PLUS-4.5t-M24 load frame with ICE screw
Article number: 8504659
| Attribute | Value |
|---|---|
| WLL | 4.500 kg |
| Weight | 1,4 kg |
| size A | 50 mm |
| size B | 82 mm |
| size C | 54 mm |
| size D | 45 mm |
| size E | 67 mm |
| size F | 17 mm |
| size G | 43 mm |
| size H | 37 mm |
| size I | 130 mm |
| size K | 78 mm |
| size L | 80 mm |
| size M | M24 |
| size N | 48 mm |
| pitch T | 125 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 52 KB)
-
(ZIP, 553 KB)
-
(ZIP, 479 KB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_IT_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_FR_7907302_V07_FG.pdf
(PDF, 1 MB)
VLBG-PLUS-6.7t-M30 load support with RUD screw
Article number: 8504661
| Attribute | Value |
|---|---|
| WLL | 6.700 kg |
| Weight | 3,22 kg |
| size A | 60 mm |
| size B | 103 mm |
| size C | 65 mm |
| size D | 60 mm |
| size E | 67 mm |
| size F | 22,5 mm |
| size G | 61 mm |
| size H | 49 mm |
| size I | 151 mm |
| size K | 80 mm |
| size L | 110 mm |
| size M | M30 |
| size N | 67 mm |
| pitch T | 147 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 44 KB)
-
(ZIP, 567 KB)
-
(ZIP, 497 KB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_IT_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_FR_7907302_V07_FG.pdf
(PDF, 1 MB)
Load ring VLBG-PLUS-7t-M36 with special-bolt
Article number: 8500829
| Attribute | Value |
|---|---|
| WLL | 7.000 kg |
| Weight | 3,4 kg |
| size A | 60 mm |
| size B | 103 mm |
| size C | 65 mm |
| size D | 60 mm |
| size E | 74 mm |
| size F | 22,5 mm |
| size G | 55 mm |
| size H | 52 mm |
| size I | 151 mm |
| size K | 80 mm |
| size L | 107 mm |
| size M | M36 |
| size N | 67 mm |
| pitch T | 146 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 52 KB)
-
(ZIP, 488 KB)
-
(ZIP, 452 KB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_IT_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_FR_7907302_V07_FG.pdf
(PDF, 1 MB)
Load ring VLBG-PLUS-8t-M36 with RUD-bolt
Article number: 7983553
| Attribute | Value |
|---|---|
| WLL | 8.000 kg |
| Weight | 5,97 kg |
| size A | 77 mm |
| size B | 122 mm |
| size C | 82 mm |
| size D | 70 mm |
| size E | 97 mm |
| size F | 26,5 mm |
| size G | 77 mm |
| size H | 63 mm |
| size I | 205 mm |
| size K | 113 mm |
| size L | 140 mm |
| size M | M36 |
| size N | 79 mm |
| pitch T | 196 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 53 KB)
-
(ZIP, 548 KB)
-
(ZIP, 472 KB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_IT_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_EN_7907302_V07_FG.pdf
(PDF, 1 MB)
-
VLBG-PLUS_FR_7907302_V07_FG.pdf
(PDF, 1 MB)
