W-ABA Lifting point for welding
Ready and indestructible – from all directions
- Large WLL range 0.8 t – 31.5 t.
- Forged from a single piece, no rattling noise or shaking even with strong vibrations or shock loads, easy hinging of the lifting means possible.
- The weld arrangement (circular fillet weld) fulfils the requirements of DIN EN 1090, i.e. the endless weld seam prevents the formation of contact/crevice corrosion (thus suitable for outdoor constructions).
- Wear markings for easy determination of wear.
Product variant (7)
W-ABA-20t - lifting point for welding, loadable from any direction
Article number: 7902174
| Attribute | Value |
|---|---|
| WLL | 20.000 kg |
| Weight | 11,3 kg |
| size A | 90 mm |
| size B | 52 mm |
| size C | 272 mm |
| size D | 115 mm |
| size E | 40 mm |
| size F | 175 mm |
| pitch T | 135 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 13 KB)
-
(ZIP, 975 KB)
-
(ZIP, 205 KB)
-
(PDF, 957 KB)
-
(PDF, 943 KB)
-
(PDF, 933 KB)
-
(PDF, 919 KB)
-
(PDF, 99 KB)
-
(PDF, 100 KB)
-
(PDF, 100 KB)
-
(PDF, 101 KB)

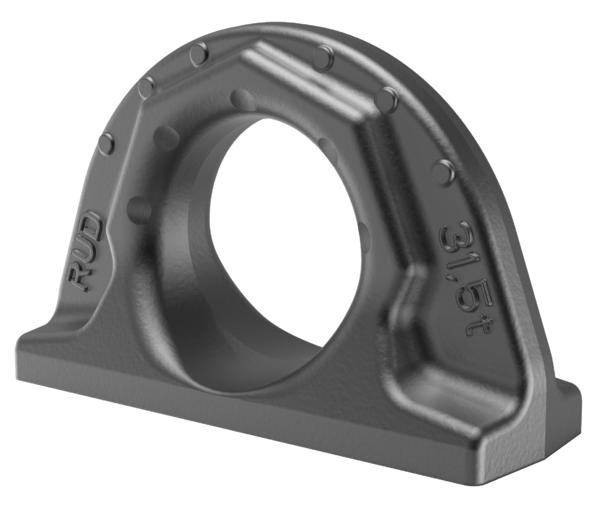

W-ABA-31,5t - lifting point for welding, loadable from any direction
Article number: 7902175
| Attribute | Value |
|---|---|
| WLL | 31.500 kg |
| Weight | 19,2 kg |
| size A | 108 mm |
| size B | 64 mm |
| size C | 320 mm |
| size D | 130 mm |
| size E | 50 mm |
| size F | 204 mm |
| pitch T | 154 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 17 KB)
-
(ZIP, 1 MB)
-
(ZIP, 265 KB)
-
(PDF, 957 KB)
-
(PDF, 943 KB)
-
(PDF, 933 KB)
-
(PDF, 919 KB)
-
(PDF, 102 KB)
-
(PDF, 102 KB)
-
(PDF, 102 KB)
-
(PDF, 103 KB)
Show 6-7 of 7
