LRBS-FIX / LRBK-FIX Ring
Octagonal lashing ring link.
- Forged load ring according to EN 1677-1,
- 100% electromagnetic crack detected,
- phosphated.
- Meets the requirements of the respective employer´s liability insurance association.
Product variant (4)
LRBS-FIX Ring LRL-FIX 8000 daN
Article number: 7910471

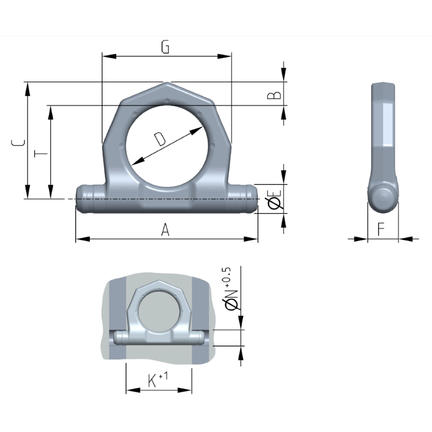

| Attribute | Value |
|---|---|
| Weight | 0,4 kg |
| size A | 107 mm |
| size B | 13,4 mm |
| size C | 68,4 mm |
| size D | 48 mm |
| size E | 17 mm |
| size F | 18 mm |
| size G | 76 mm |
| size K | 78 mm |
| size N | 19 mm |
| pitch T | 55 mm |
| Permissible LC | 8.000 daN |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 20 KB)
-
(ZIP, 1 MB)
-
(ZIP, 372 KB)
-
(PDF, 876 KB)
-
Instructions de soudure LRBS-FIX
(PDF, 889 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 8000 daN-en
(PDF, 80 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 8000 daN-fr
(PDF, 81 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 8000 daN-it
(PDF, 81 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 8000 daN-es
(PDF, 81 KB)
LRBS-FIX Ring LRL-FIX 13400 daN
Article number: 7910472
| Attribute | Value |
|---|---|
| Weight | 0,93 kg |
| size A | 134 mm |
| size B | 19 mm |
| size C | 90 mm |
| size D | 60 mm |
| size E | 23 mm |
| size F | 24 mm |
| size G | 99 mm |
| size K | 101 mm |
| size N | 25 mm |
| pitch T | 71 mm |
| Permissible LC | 13.400 daN |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 20 KB)
-
(ZIP, 1 MB)
-
(ZIP, 370 KB)
-
(PDF, 876 KB)
-
Instructions de soudure LRBS-FIX
(PDF, 889 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 13400 daN-en
(PDF, 80 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 13400 daN-fr
(PDF, 81 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 13400 daN-it
(PDF, 81 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 13400 daN-es
(PDF, 81 KB)
LRBS-FIX Ring LRL-FIX 20000 daN
Article number: 7910473
| Attribute | Value |
|---|---|
| Weight | 1,43 kg |
| size A | 152 mm |
| size B | 19,4 mm |
| size C | 96,9 mm |
| size D | 65 mm |
| size E | 28 mm |
| size F | 28 mm |
| size G | 105 mm |
| size K | 107 mm |
| size N | 30 mm |
| pitch T | 78 mm |
| Permissible LC | 20.000 daN |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 19 KB)
-
(ZIP, 1 MB)
-
(ZIP, 366 KB)
-
(PDF, 876 KB)
-
Instructions de soudure LRBS-FIX
(PDF, 889 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 20000 daN-en
(PDF, 80 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 20000 daN-fr
(PDF, 81 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 20000 daN-it
(PDF, 81 KB)
-
PDF-Info-LRBS-FIX Zurrlasche LC 20000 daN-es
(PDF, 81 KB)
LRBS-FIX Ring LRL-FIX 32000 daN
Article number: 7999300
| Attribute | Value |
|---|---|
| Weight | 3,2 kg |
| size A | 204 mm |
| size B | 27,5 mm |
| size C | 131 mm |
| size D | 90 mm |
| size E | 35 mm |
| size F | 37 mm |
| size G | 146 mm |
| pitch T | 104 mm |
| Permissible LC | 32.000 daN |
