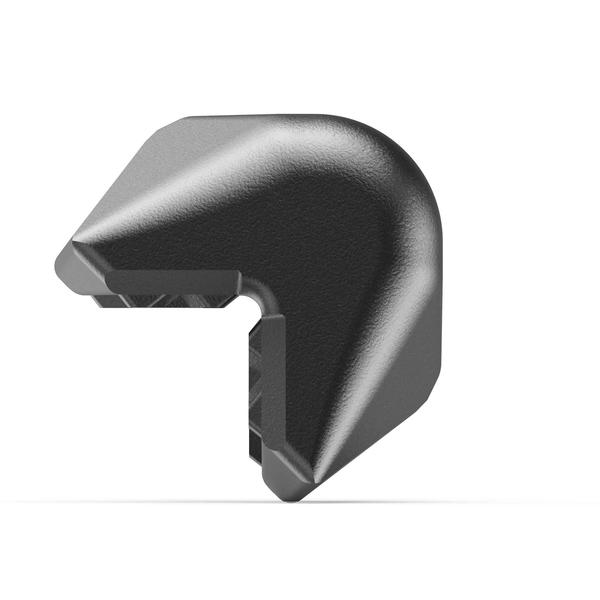

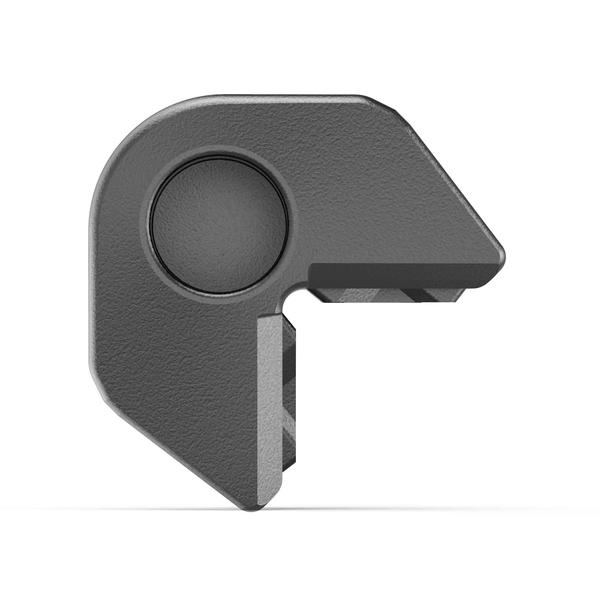

VRBK-FIX Weld-on block

VRBK-FIX Weld-on block

Operating temperature range of the lifting means without permanent reduction of load capacity.

Maximum operating temperature of the lifting means with percentage, product-dependent load capacity reduction.

All load-bearing elements are 100 % electromagnetically crack-tested.

Product variant (3)

VRBK-FIX welding block VASKK-FIX-4t

Article number: 7910942

Attribute	Value
WLL
Weight	0,32 kg

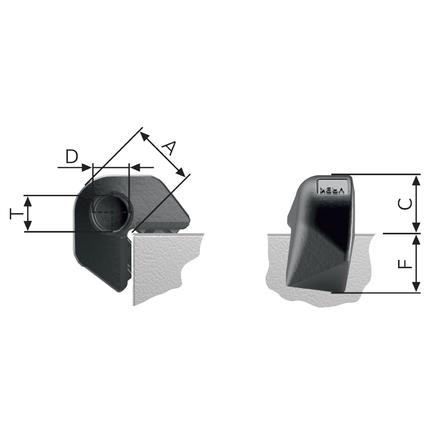

size A	32 mm
size C	28 mm
size D	18,5 mm
size F	30 mm
pitch T	18 mm
Permissible LC	8.000 daN

Related downloads

Please use the contact form for further questions about our products and services.

VRBK-FIX welding block VASKK-FIX-6.7t

Article number: 7910943

Attribute	Value
WLL
Weight	0,58 kg
size A	40 mm
size C	35 mm
size D	24,5 mm
size F	34 mm
pitch T	24 mm
Permissible LC	13.400 daN

Related downloads

Please use the contact form for further questions about our products and services.

PDF-Info-VASKK-FIX-6,7t-en

(PDF, 87 KB)
PDF-Info-VASKK-FIX-6,7t-fr

(PDF, 88 KB)
PDF-Info-VASKK-FIX-6,7t-it

(PDF, 87 KB)
PDF-Info-VASKK-FIX-6,7t-es

(PDF, 87 KB)

VRBK-FIX welding block VASKK-FIX-10t

Article number: 7910944

Attribute	Value
WLL
Weight	1,44 kg
size A	52 mm
size C	46 mm
size D	30 mm
size F	46 mm
pitch T	29 mm
Permissible LC	20.000 daN
