VIP-Equalizer

VIP-Equalizer

VIP-Equalizer - the three-stranded, movable, force-balancing special suspension, thus evenly stressing the 3 chain strands.
Increased service life compared to conventional hangers.

1 Safety factor (e. g. 4:1) for lifting means (safety against breakage).

All load-bearing elements are 100 % electromagnetically crack-tested.

Operating temperature range of the lifting means without permanent reduction of load capacity.

Maximum operating temperature of the lifting means with percentage, product-dependent load capacity reduction.

Easy testing and documentation. With the RUD BLUE-ID system (equipped with an RFID chip).

Product variant (2)

RUD-Equalizer VT-16

Article number: 59076

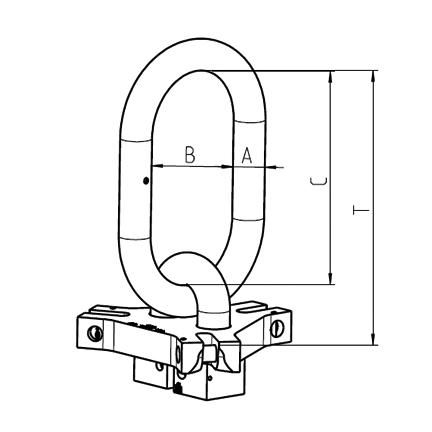

Attribute	Value
WLL	17.000 kg
Weight	17,6 kg
size A	36 mm
size B	140 mm
size C	260 mm
pitch T	310 mm

Related downloads

Please use the contact form for further questions about our products and services.

PDF-Info-VT-16-en

(PDF, 104 KB)
PDF-Info-VT-16-fr

(PDF, 105 KB)
PDF-Info-VT-16-it

(PDF, 104 KB)
PDF-Info-VT-16-es

(PDF, 105 KB)

RUD-Equalizer VT-22

Article number: 59078

Attribute	Value
WLL	32.000 kg
Weight	47 kg
size A	51 mm
size B	190 mm
size C	350 mm
pitch T	418 mm
