VIP-Master links VBK-1, 1-leg
VIP-Master link 1-strand for smaller load hook.
- All master links on this page are equipped with welded-in connectors that can be moved on all sides.
- This results in a non-mix-up connection to chain diameter and number of strands.
- The master link is supplemented with an identification tag (VKZA) with integrated chain test gauge.
- Dimensions according to intermediate link shape B according to DIN 5688.
- Adequate for hanging on small load hooks like chain hoist.
Product variant (8)
VIP-Master link single strand VBK-1-20
Article number: 7104092
| Attribute | Value |
|---|---|
| WLL | 16.000 kg |
| Weight | 7,7 kg |
| size A | 32 mm |
| size B | 75 mm |
| size C | 170 mm |
| pitch T | 264 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 33 KB)
-
(ZIP, 362 KB)
-
(ZIP, 284 KB)
-
(PDF, 4 MB)
-
(PDF, 88 KB)
-
(PDF, 89 KB)
-
(PDF, 89 KB)
-
(PDF, 89 KB)
VIP-Master link single strand VBK-1-22
Article number: 7100680
| Attribute | Value |
|---|---|
| WLL | 20.000 kg |
| Weight | 9 kg |
| size A | 36 mm |
| size B | 110 mm |
| size C | 200 mm |
| pitch T | 294 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 32 KB)
-
(ZIP, 329 KB)
-
(ZIP, 258 KB)
-
(PDF, 4 MB)
-
(PDF, 88 KB)
-
(PDF, 89 KB)
-
(PDF, 89 KB)
-
(PDF, 89 KB)

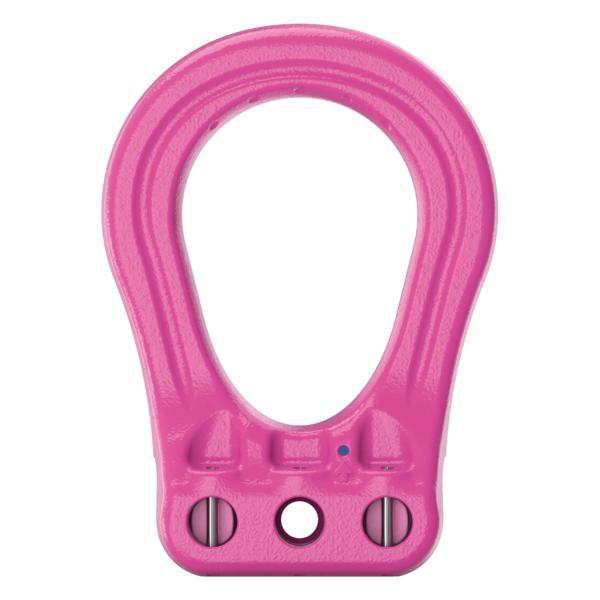

VIP-MAXI-Master link for single strand VBK-1 / 2-28
Article number: 8504022
| Attribute | Value |
|---|---|
| WLL | 31.500 kg |
| Weight | 31,9 kg |
| size A | 60 mm |
| size B | 190 mm |
| size C | 265 mm |
| size D | 240 mm |
| size E | 120 mm |
| size F | 55 mm |
| pitch T | 322 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 17 KB)
-
(ZIP, 242 KB)
-
(ZIP, 221 KB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 222 KB)
-
(PDF, 223 KB)
-
(PDF, 223 KB)
-
(PDF, 223 KB)
Show 6-8 of 8
