VIP-Shortening claw VV
VIP-Shortening claw.
- For VIP chain 20, 22 and 28 mm is only the standard shortening claw in VIP- Quality grade is available.
- Ideal support of the chain by the link-shaped bag support – meaning no reduction of WLL.
- Lightweight design.
- The robust, spring-mounted safety bolt prevents the suspended chain from loosening automatically when unloaded or under load.
- Complies with DIN 5692.
Product variant (3)
VIP shortening claw VV-20 with locking pin
Article number: 7994856

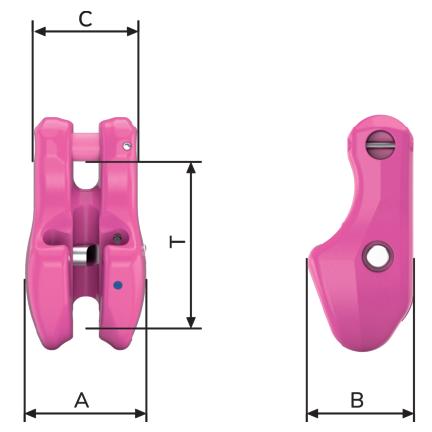

| Attribute | Value |
|---|---|
| WLL | 16.000 kg |
| Weight | 8,83 kg |
| size A | 117 mm |
| size B | 100 mm |
| size C | 102 mm |
| pitch T | 140 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 25 KB)
-
(ZIP, 458 KB)
-
(ZIP, 292 KB)
-
Instruction handbook IMVK / VMVK / VV / BSEK
(PDF, 3 MB)
-
Istruzioni d'uso IMVK - VMVK - VV - BSEK
(PDF, 3 MB)
-
manual de instrucciones IMVK/VMVK/VV/BSEK
(PDF, 3 MB)
-
Notice d'instructions IMVK / VMVK / VV / BSEK
(PDF, 3 MB)
VIP shortening claw VV-22 with safety bolt
Article number: 7994855
| Attribute | Value |
|---|---|
| WLL | 20.000 kg |
| Weight | 8,45 kg |
| size A | 117 mm |
| size B | 100 mm |
| size C | 102 mm |
| pitch T | 140 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 25 KB)
-
(ZIP, 467 KB)
-
(ZIP, 294 KB)
-
Instruction handbook IMVK / VMVK / VV / BSEK
(PDF, 3 MB)
-
Istruzioni d'uso IMVK - VMVK - VV - BSEK
(PDF, 3 MB)
-
manual de instrucciones IMVK/VMVK/VV/BSEK
(PDF, 3 MB)
-
Notice d'instructions IMVK / VMVK / VV / BSEK
(PDF, 3 MB)
VIP-MAXI shortening claw VV-28 with safety bolt
Article number: 7900643
| Attribute | Value |
|---|---|
| WLL | 31.500 kg |
| Weight | 17,3 kg |
| size A | 150 mm |
| size B | 130 mm |
| size C | 130 mm |
| pitch T | 170 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 16 KB)
-
(ZIP, 510 KB)
-
(ZIP, 318 KB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
manual de instrucciones VIP-MAXI
(PDF, 3 MB)
-
Notice d'instructions VIP-MAXI
(PDF, 3 MB)
