VIP-Special master links VSAK-1 , 1-leg
VIP-Special master links with welded-in connectors.
- All special master links on this page are equipped with welded-in connectors that can be moved on all sides.
- This results in a non-mix-up connection to chain diameter and number of strands.
- The master link is supplemented with an identification tag (VKZA) with integrated chain test gauge.
- Due to the greater diameter of the inner width “B” of the VSAK reduces an unauthorised use (DGUV-rule 109-017) and wear occurrence on the crane hook. This saves a costly intermediate suspension for oversized crane hooks.
Product variant (15)
VIP special master link one strand VSAK-1-13 / 250
Article number: 7100697
| Attribute | Value |
|---|---|
| WLL | 6.700 kg |
| Weight | 12,83 kg |
| size A | 36 mm |
| size B | 250 mm |
| size C | 460 mm |
| pitch T | 634 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
VSAK-1-13/250 - DXF 2D CAD File
(ZIP, 27 KB)
-
VSAK-1-13/250 - IGES 3D CAD File
(ZIP, 295 KB)
-
VSAK-1-13/250 - STEP 3D CAD File
(ZIP, 230 KB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
VIP special master link one strand VSAK-1-16 / 250
Article number: 7100698
| Attribute | Value |
|---|---|
| WLL | 10.000 kg |
| Weight | 17,2 kg |
| size A | 40 mm |
| size B | 250 mm |
| size C | 460 mm |
| pitch T | 671 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
VSAK-1-16/250 - DXF 2D CAD File
(ZIP, 27 KB)
-
VSAK-1-16/250 - IGES 3D CAD File
(ZIP, 314 KB)
-
VSAK-1-16/250 - STEP 3D CAD File
(ZIP, 247 KB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
VIP special master link one strand VSAK-1-20 / 250
Article number: 7104100
| Attribute | Value |
|---|---|
| WLL | 16.000 kg |
| Weight | 28,08 kg |
| size A | 45 mm |
| size B | 250 mm |
| size C | 460 mm |
| pitch T | 724 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
VSAK-1-20/250 - DXF 2D CAD File
(ZIP, 33 KB)
-
VSAK-1-20/250 - IGES 3D CAD File
(ZIP, 361 KB)
-
VSAK-1-20/250 - STEP 3D CAD File
(ZIP, 286 KB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
VIP special master link one strand VSAK-1-22 / 250
Article number: 7100699
| Attribute | Value |
|---|---|
| WLL | 20.000 kg |
| Weight | 34,52 kg |
| size A | 51 mm |
| size B | 250 mm |
| size C | 460 mm |
| pitch T | 754 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
VSAK-1-22/250 - DXF 2D CAD File
(ZIP, 32 KB)
-
VSAK-1-22/250 - IGES 3D CAD File
(ZIP, 331 KB)
-
VSAK-1-22/250 - STEP 3D CAD File
(ZIP, 260 KB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)

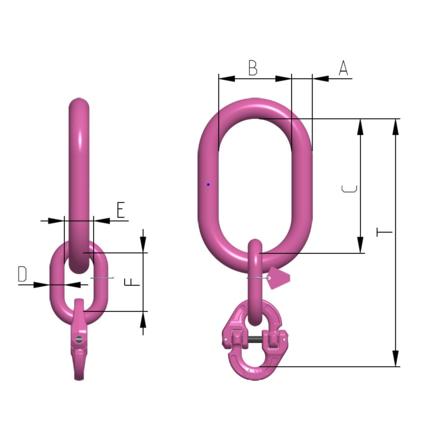

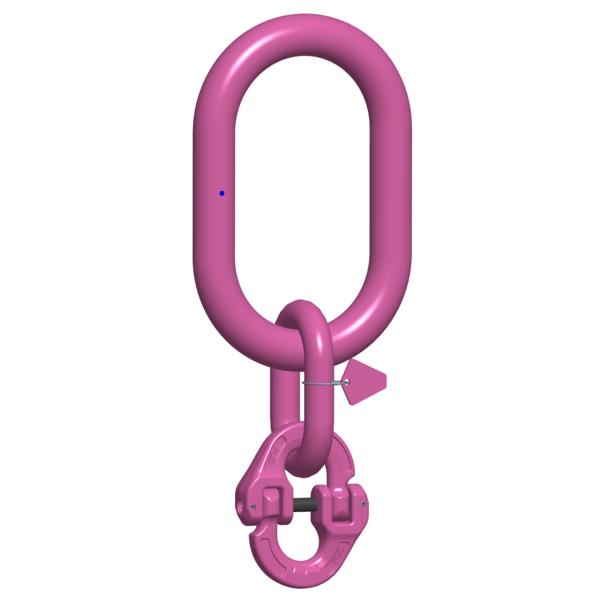

VIP-Special master link VSAK-1-28/250 with VVS-28
Article number: 7914863
| Attribute | Value |
|---|---|
| WLL | 31.500 kg |
| Weight | 65,28 kg |
| size A | 71 mm |
| size B | 250 mm |
| size C | 460 mm |
| size D | 50 mm |
| size E | 100 mm |
| size F | 200 mm |
| pitch T | 850 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
-
(PDF, 4 MB)
