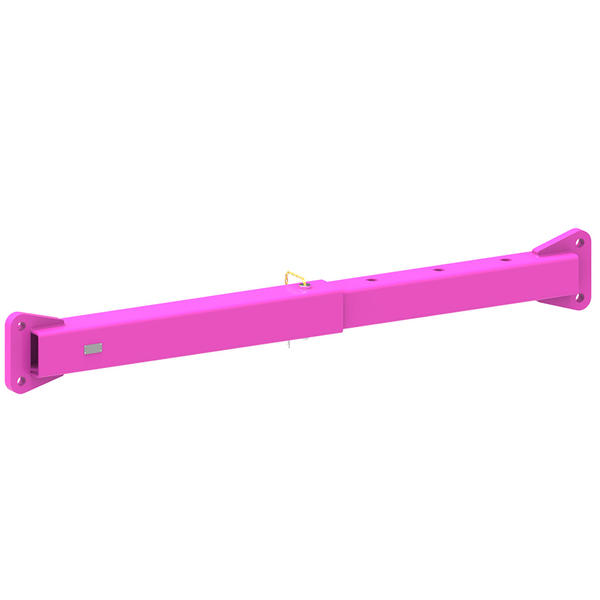

VIP-Spreader bar adjustable
VIP-Spreader bar adjustable.
- Please state usable length Lmax. of the strut with your order.
- Adjustable strut also available with chain suspension. Please state the version of master link and the required inclination angle β with your order!
- Surface: pink powder coated.
- Lmin. depends on Lmax. and the nominal size!
Product variant (7)
VIP-Spreader bar adjustable VSRV-6
Article number: 8600120
| Attribute | Value |
|---|---|
| WLL | 2.100 kg |
| Weight | |

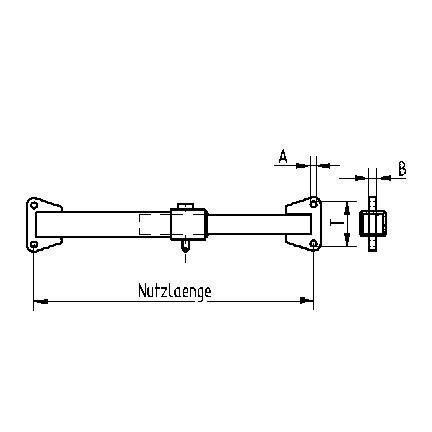

| size A | 13,5 mm |
| size B | 36 mm |
| size K | 1.500 mm |
| size L vario | 1500-4000 |
| pitch T | 200 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
Instruction handbook VSRS/VSRV
(PDF, 436 KB)
-
(PDF, 426 KB)
-
(PDF, 68 KB)
-
(PDF, 68 KB)
-
(PDF, 68 KB)
-
(PDF, 69 KB)
VIP-Spreader bar adjustable VSRV-8
Article number: 8600121
| Attribute | Value |
|---|---|
| WLL | 3.500 kg |
| Weight | |
| size A | 16,5 mm |
| size B | 50 mm |
| size K | 1.500 mm |
| size L vario | 1500-4000 |
| pitch T | 250 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
Instruction handbook VSRS/VSRV
(PDF, 436 KB)
-
(PDF, 426 KB)
-
(PDF, 68 KB)
-
(PDF, 68 KB)
-
(PDF, 68 KB)
-
(PDF, 69 KB)
VIP-Spreader bar adjustable VSRV-10
Article number: 8600122
| Attribute | Value |
|---|---|
| WLL | 5.600 kg |
| Weight | |
| size A | 22,5 mm |
| size B | 65 mm |
| size K | 1.500 mm |
| size L vario | 1500-4000 |
| pitch T | 330 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
Instruction handbook VSRS/VSRV
(PDF, 436 KB)
-
(PDF, 426 KB)
-
(PDF, 68 KB)
-
(PDF, 68 KB)
-
(PDF, 68 KB)
-
(PDF, 69 KB)
VIP-Spreader bar adjustable VSRV-13
Article number: 8600123
| Attribute | Value |
|---|---|
| WLL | 9.500 kg |
| Weight | |
| size A | 26,5 mm |
| size B | 65 mm |
| size K | 1.500 mm |
| size L vario | 1500-4000 |
| pitch T | 360 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
Instruction handbook VSRS/VSRV
(PDF, 436 KB)
-
(PDF, 426 KB)
-
(PDF, 68 KB)
-
(PDF, 68 KB)
-
(PDF, 68 KB)
-
(PDF, 69 KB)
VIP-Spreader bar adjustable VSRV-16
Article number: 8600124
| Attribute | Value |
|---|---|
| WLL | 14.000 kg |
| Weight | |
| size A | 28 mm |
| size B | 35 mm |
| size K | 1.500 mm |
| size L vario | 1500-4000 |
| pitch T | 250 mm |
