VIP-Spreader bar fixed
VIP-Spreader bar fixed.
- Strut also available with chain suspension. Please state the version of master link and the required inclination angle β with your order!
- Surface: Usable length L up to 2,500 mm pink powder coated.
- Usable length L over 2,500 mm yellow painted.
Product variant (7)
VIP-Spreader bar fixed VSRS-6
Article number: 8600110

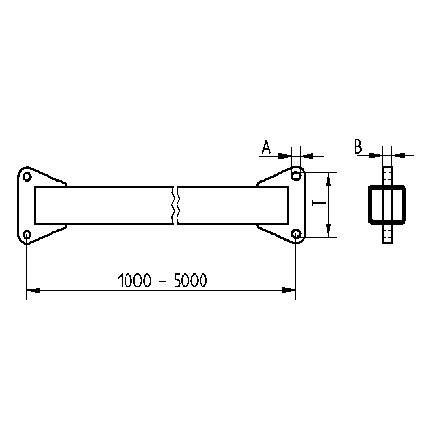

| Attribute | Value |
|---|---|
| WLL | 2.100 kg |
| Weight | |
| size A | 13,5 mm |
| size B | 36 mm |
| size K | 500 mm |
| size L vario | 500-4000 |
| pitch T | 190 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
Instruction handbook VSRS/VSRV
(PDF, 436 KB)
-
(PDF, 426 KB)
-
(PDF, 66 KB)
-
(PDF, 67 KB)
-
(PDF, 66 KB)
-
(PDF, 67 KB)
VIP-Spreader bar fixed VSRS-8
Article number: 8600111
| Attribute | Value |
|---|---|
| WLL | 3.500 kg |
| Weight | |
| size A | 16,5 mm |
| size B | 50 mm |
| size K | 500 mm |
| size L vario | 500-5000 |
| pitch T | 240 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
Instruction handbook VSRS/VSRV
(PDF, 436 KB)
-
(PDF, 426 KB)
-
(PDF, 66 KB)
-
(PDF, 67 KB)
-
(PDF, 66 KB)
-
(PDF, 67 KB)
VIP-Spreader bar fixed VSRS-10
Article number: 8600112
| Attribute | Value |
|---|---|
| WLL | 5.600 kg |
| Weight | |
| size A | 22,5 mm |
| size B | 65 mm |
| size K | 500 mm |
| size L vario | 500-5000 |
| pitch T | 320 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
Instruction handbook VSRS/VSRV
(PDF, 436 KB)
-
(PDF, 426 KB)
-
(PDF, 66 KB)
-
(PDF, 67 KB)
-
(PDF, 66 KB)
-
(PDF, 67 KB)
VIP-Spreader bar fixed VSRS-13
Article number: 8600113
| Attribute | Value |
|---|---|
| WLL | 9.500 kg |
| Weight | |
| size A | 26,5 mm |
| size B | 65 mm |
| size K | 1.000 mm |
| size L vario | 1000-5000 |
| pitch T | 350 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
Instruction handbook VSRS/VSRV
(PDF, 436 KB)
-
(PDF, 426 KB)
-
(PDF, 66 KB)
-
(PDF, 67 KB)
-
(PDF, 66 KB)
-
(PDF, 67 KB)
VIP-Spreader bar fixed VSRS-16
Article number: 8600114
| Attribute | Value |
|---|---|
| WLL | 14.000 kg |
| Weight | |
| size A | 28 mm |
| size B | 35 mm |
| size K | 1.000 mm |
| size L vario | 1000-5000 |
| pitch T | 250 mm |
