VIP-End link

VIP-End link

VIP-End links with welded-in connectors.

VIP-End link VA-1 / VB-1 with an all direction movable welded VRG connector, thus ensuring that only the correct chain diameter and number of strands can be connected. VSAK-Special master links can be used for this but without VIP-KZA identification tag.
The VIP-load and retaining pins are preassembled.

1 Safety factor (e. g. 4:1) for lifting means (safety against breakage).

All load-bearing elements are 100 % electromagnetically crack-tested.

Operating temperature range of the lifting means without permanent reduction of load capacity.

Maximum operating temperature of the lifting means with percentage, product-dependent load capacity reduction.

Component has been approved by the DGUV (German Social Accident Insurance) and has the corresponding certificate.

DNV-approved. This product is suitable for marine and offshore applications.

Easy testing and documentation. With the RUD BLUE-ID system (equipped with an RFID chip).

Product variant (18)

VIP-End link VB-1-28

Article number: 7900641

Attribute	Value
WLL	31.500 kg
Weight	15,3 kg
size A	62 mm
size B	130 mm
size C	150 mm
size D	130 mm
size E	80 mm
size F	100 mm
size G	52 mm
pitch T	215 mm

Related downloads

Please use the contact form for further questions about our products and services.

VB-28-dxf.zip

(ZIP, 119 KB)
VB-28-igs.zip

(ZIP, 466 KB)
VB-28-stp.zip

(ZIP, 277 KB)
Instruction handbook VIP MAXI

(PDF, 3 MB)
Istruzioni d'uso VIP-MAXI

(PDF, 3 MB)
PDF-Info-VB-1-28-en

(PDF, 116 KB)
PDF-Info-VB-1-28-fr

(PDF, 117 KB)
PDF-Info-VB-1-28-it

(PDF, 117 KB)
PDF-Info-VB-1-28-es

(PDF, 117 KB)

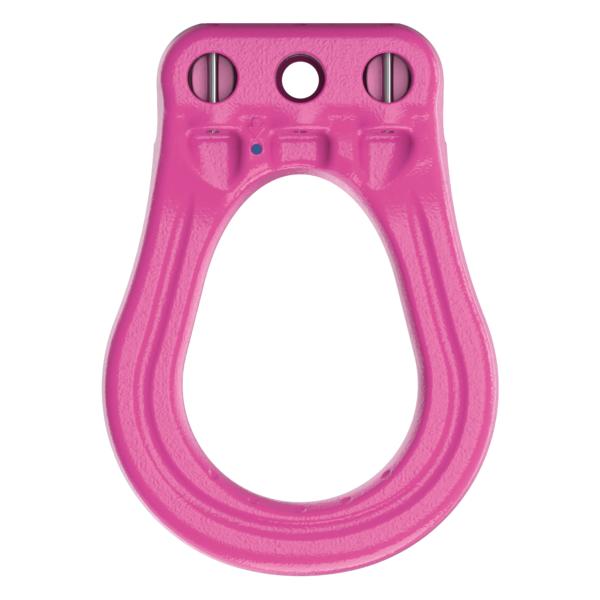

VIP-MAXI-Master link VBK-1/2-28 as end link

Article number: 8504022

Attribute	Value
WLL	31.500 kg
Weight	31,9 kg
size A	60 mm
size B	190 mm
size C	265 mm
size D	240 mm
size E	120 mm
size F	55 mm
pitch T	322 mm

Related downloads

Please use the contact form for further questions about our products and services.

Instruction handbook VIP MAXI

(PDF, 3 MB)
Istruzioni d'uso VIP-MAXI

(PDF, 3 MB)
PDF-Info-VBK-1/2- 28 (als Endglied)-en

(PDF, 222 KB)
PDF-Info-VBK-1/2- 28 (als Endglied)-fr

(PDF, 223 KB)
PDF-Info-VBK-1/2- 28 (als Endglied)-it

(PDF, 222 KB)
PDF-Info-VBK-1/2- 28 (als Endglied)-es

(PDF, 222 KB)

VIP-Maxi-End link tournable VUW-GLD-28

Article number: 7903436

Attribute	Value
WLL	31.500 kg
Weight	32,2 kg
size A	153 mm
size D	46 mm
size E	110 mm
size F	169 mm
pitch T	416 mm

Related downloads

Please use the contact form for further questions about our products and services.

VUW-GLD-28_dxf.zip

(ZIP, 27 KB)
VUW-GLD-28_igs.zip

(ZIP, 657 KB)
VUW-GLD-28_stp.zip

(ZIP, 554 KB)
Instruction handbook VIP MAXI

(PDF, 3 MB)
Istruzioni d'uso VIP-MAXI

(PDF, 3 MB)
PDF-Info-VUW-GLD-28-en

(PDF, 100 KB)
PDF-Info-VUW-GLD-28-fr

(PDF, 102 KB)
PDF-Info-VUW-GLD-28-it

(PDF, 101 KB)
PDF-Info-VUW-GLD-28-es

(PDF, 101 KB)

Show 16-18 of 18
