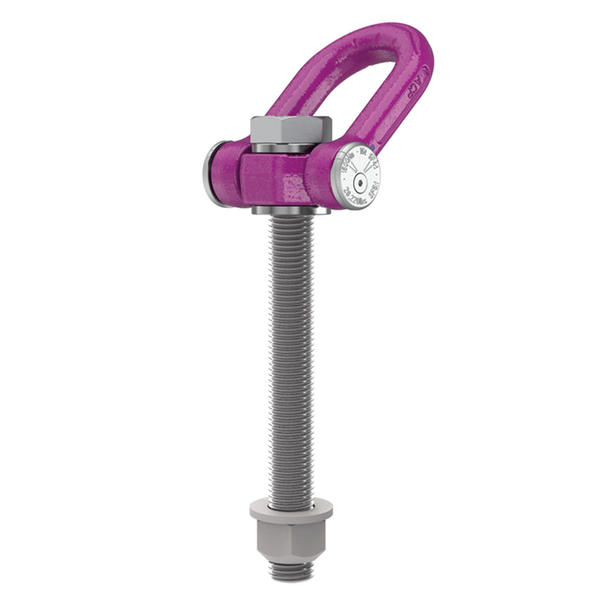

ACP-TURNADO - metric thread with variable length, comes with locknut and washer

ACP-TURNADO - metric thread with variable length, comes with locknut and washer

The world’s first smart lifting point

Innovative spring mechanism – prevents the lift bail from stopping with transverse load.
Swivel joint in the lifting ring axis.
Wear lenses for checking discard criteria.
Integrated RFID transponder to make checks easier.
Safety factors 4:1 and 5:1.
Meets and exceeds the requirements of the American standard ASME B30.26.

1 Safety factor (e. g. 4:1) for lifting means (safety against breakage).

1 Safety factor (e. g. 5:1) for lifting means (safety against breakage).

All load-bearing elements are 100 % electromagnetically crack-tested.

Loadable on all sides: Lifting points which can be loaded in all conceivable directions or which automatically turn into the load direction.

The lifting point can be rotated by 360°. However, this is not to be equated with rotating and turning under load!

The lifting point has a pivoting area in the suspension link of 180°.

Possible thread types of the respective lifting point. Symbols according to: METRIC THREAD

Meets and exceeds the requirements of the American standard ASME B30.26.

Easy testing and documentation. With the RUD BLUE-ID system (equipped with an RFID chip).

The lifting points with this symbol are equipped with the ICE-BOLT.

Maximum operating temperature of the lifting means with percentage, product-dependent load capacity reduction.

Operating temperature range of the lifting means without permanent reduction of load capacity.

The lifting point is available with variable/different thread lengths.

Product variant (17)

ACP-TURNADO-6.3t-M24 with variable length (24-210)

Article number: 8600638

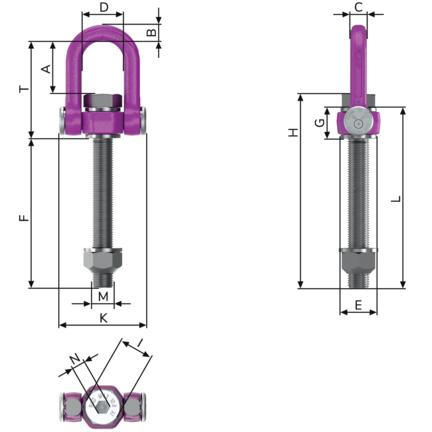

Attribute	Value
WLL	6.300 kg
Weight
size B	23 mm
size C	23 mm
size D	66 mm
size E	60 mm
size F vario	24-210
size G	55 mm
size H vario	104-280
size I	36 mm
size K	121 mm
size L vario	79-265
size M	M24
size N	14 mm
pitch T	154 mm
