ACP-TURNADO - metric thread with variable length, comes with locknut and washer
The world’s first smart lifting point
- Innovative spring mechanism – prevents the lift bail from stopping with transverse load.
- Swivel joint in the lifting ring axis.
- Wear lenses for checking discard criteria.
- Integrated RFID transponder to make checks easier.
- Safety factors 4:1 and 5:1.
- Meets and exceeds the requirements of the American standard ASME B30.26.
Product variant (17)
ACP-TURNADO MAX-24t-M52 with variable length (32-300)
Article number: 8600647

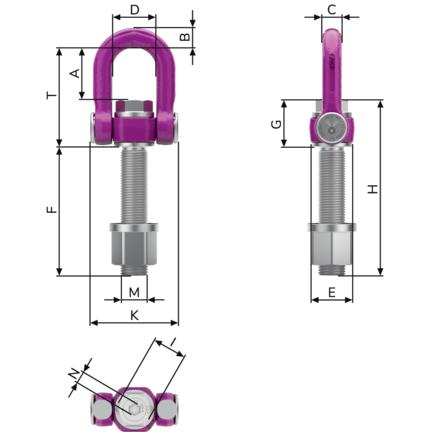

| Attribute | Value |
|---|---|
| WLL | 24.000 kg |
| Weight | |
| size A | 124 mm |
| size B | 45 mm |
| size C | 45 mm |
| size D | 103 mm |
| size E | 95 mm |
| size F vario | 52-300 |
| size G | 108 mm |
| size H vario | 160-408 |
| size I | 75 mm |
| size K | 204 mm |
| size M | M52 |
| size N | 24 mm |
| pitch T | 232 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 2 MB)
-
(ZIP, 1 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
ACP-TURNADO MAX-27t-M56 with variable length (56-300)
Article number: 8600648
| Attribute | Value |
|---|---|
| WLL | 27.000 kg |
| Weight | |
| size A | 124 mm |
| size B | 45 mm |
| size C | 45 mm |
| size D | 103 mm |
| size E | 95 mm |
| size F vario | 56-300 |
| size G | 108 mm |
| size H vario | 164-408 |
| size I | 75 mm |
| size K | 204 mm |
| size M | M56 |
| size N | 24 mm |
| pitch T | 232 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 2 MB)
-
(ZIP, 1 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
ACP-TURNADO SUPERMAX-32,5t-M64 with variable length (64-300)
Article number: 8600649
| Attribute | Value |
|---|---|
| WLL | 32.500 kg |
| Weight | |
| size A | 124 mm |
| size B | 45 mm |
| size C | 45 mm |
| size D | 103 mm |
| size E | 95 mm |
| size F vario | 64-300 |
| size G | 108 mm |
| size H vario | 172-408 |
| size I | 75 mm |
| size K | 204 mm |
| size M | M64 |
| size N | 24 mm |
| pitch T | 232 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 3 MB)
-
(ZIP, 1 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
ACP-TURNADO SUPERMAX-32,5t-M72 with variable length (72-300)
Article number: 8600649
| Attribute | Value |
|---|---|
| WLL | 32.500 kg |
| Weight | |
| size A | 124 mm |
| size B | 45 mm |
| size C | 45 mm |
| size D | 103 mm |
| size E | 95 mm |
| size F vario | 72-300 |
| size G | 108 mm |
| size H vario | 180-408 |
| size I | 75 mm |
| size K | 204 mm |
| size M | M72 |
| size N | 24 mm |
| pitch T | 232 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 3 MB)
-
(ZIP, 1 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
ACP-TURNADO SUPERMAX-32,5t-M80 with variable length (80-300)
Article number: 8600649
| Attribute | Value |
|---|---|
| WLL | 32.500 kg |
| Weight | |
| size A | 124 mm |
| size B | 45 mm |
| size C | 45 mm |
| size D | 103 mm |
| size E | 100 mm |
| size F vario | 80-300 |
| size G | 108 mm |
| size H vario | 188-408 |
| size I | 75 mm |
| size K | 204 mm |
| size M | M80 |
| size N | 24 mm |
| pitch T | 232 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
