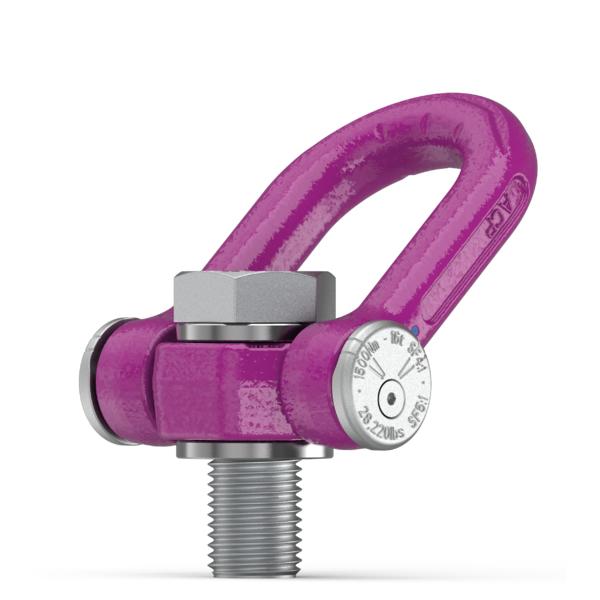

ACP-TURNADO - metric thread
The world’s first smart lifting point
- Large WLL range 0,7 t – 32,5 t.
- Innovative spring mechanism – prevents the lift bail from stopping with transverse load.
- Swivel joint in the lifting ring axis.
- Wear lenses for checking discard criteria.
- Integrated RFID transponder to make checks easier.
- Safety factors 4:1 and 5:1.
- Meets and exceeds the requirements of the American standard ASME B30.26.
Product variant (17)
ACP-TURNADO-6.3t-M24
Article number: 7909318

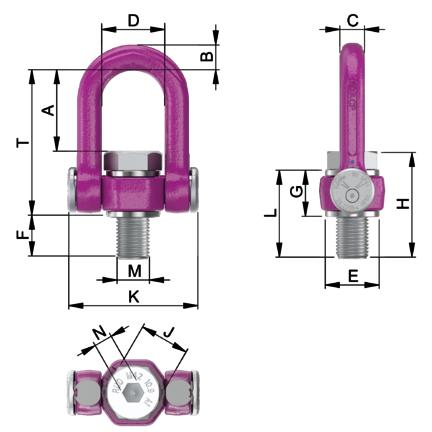

| Attribute | Value |
|---|---|
| WLL | 6.300 kg |
| Weight | 3,27 kg |
| size B | 23 mm |
| size C | 23 mm |
| size D | 66 mm |
| size E | 60 mm |
| size F | 34 mm |
| size G | 55 mm |
| size H | 104 mm |
| size I | 36 mm |
| size K | 121 mm |
| size L | 89 mm |
| size M | M24 |
| size N | 14 mm |
| pitch T | 154 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 31 KB)
-
(ZIP, 517 KB)
-
(ZIP, 465 KB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
ACP-TURNADO-8t-M30
Article number: 7909319
| Attribute | Value |
|---|---|
| WLL | 8.000 kg |
| Weight | 5,69 kg |
| size B | 29 mm |
| size C | 27 mm |
| size D | 76 mm |
| size E | 75 mm |
| size F | 41,5 mm |
| size G | 68,5 mm |
| size H | 129 mm |
| size I | 46 mm |
| size K | 148 mm |
| size L | 110 mm |
| size M | M30 |
| size N | 17 mm |
| pitch T | 183 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 27 KB)
-
(ZIP, 511 KB)
-
(ZIP, 457 KB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
ACP-TURNADO MAX-12.5t-M36
Article number: 7911052

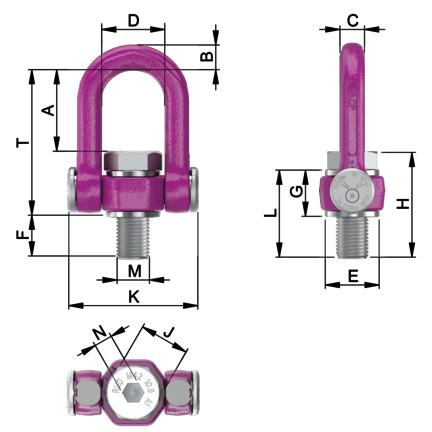

| Attribute | Value |
|---|---|
| WLL | 12.500 kg |
| Weight | 7,1 kg |
| size A | 106 mm |
| size B | 32 mm |
| size C | 32 mm |
| size D | 82 mm |
| size E | 70 mm |
| size F | 45 mm |
| size G | 60 mm |
| size H | 128 mm |
| size I | 55 mm |
| size K | 168 mm |
| size L | 105 mm |
| size M | M36 |
| size N | 22 mm |
| pitch T | 189 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 78 KB)
-
(ZIP, 2 MB)
-
(ZIP, 1 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
ACP-TURNADO MAX-16t-M42
Article number: 7911053
| Attribute | Value |
|---|---|
| WLL | 16.000 kg |
| Weight | 7,5 kg |
| size A | 106 mm |
| size B | 32 mm |
| size C | 32 mm |
| size D | 82 mm |
| size E | 70 mm |
| size F | 53 mm |
| size G | 60 mm |
| size H | 136 mm |
| size I | 65 mm |
| size K | 168 mm |
| size L | 113 mm |
| size M | M42 |
| size N | 24 mm |
| pitch T | 189 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 78 KB)
-
(ZIP, 2 MB)
-
(ZIP, 1,004 KB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
ACP-TURNADO MAX-20t-M48
Article number: 7912630
| Attribute | Value |
|---|---|
| WLL | 20.000 kg |
| Weight | 16,04 kg |
| size A | 127 mm |
| size B | 45 mm |
| size C | 45 mm |
| size D | 103 mm |
| size E | 90 mm |
| size F | 61 mm |
| size G | 78,5 mm |
| size H | 169 mm |
| size I | 75 mm |
| size K | 204 mm |
| size L | 139 mm |
| size M | M48 |
| size N | 27 mm |
| pitch T | 235 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 3 MB)
-
(ZIP, 1 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
-
(PDF, 3 MB)
