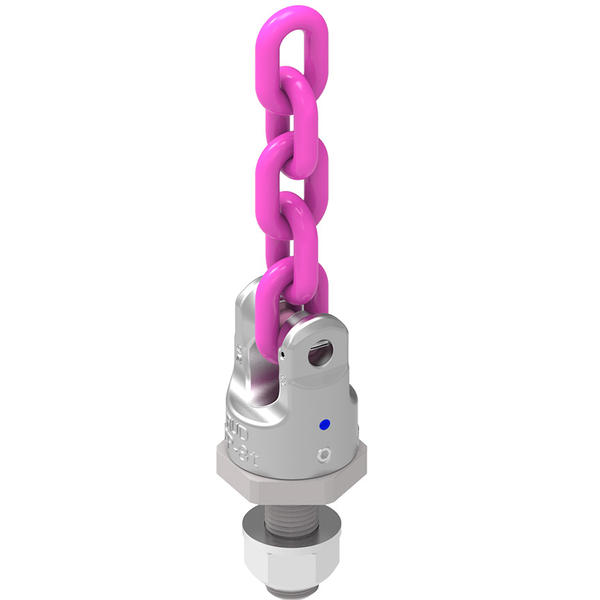

PP-VIP PowerPoint® Direct VIP chain connection, UNC thread
UNC inch thread.
- Large WLL range 0.63 t – 8 t.
- PP-VIP: direct chain connection.
- So-PP-S, So-PP-B, So-PP-VIP: variable thread lengths.
- Rotatable 90° to the bolt-on direction under WLL.
- Lowest kinking possibility due to cardan joint.
- PP-VIP, So-PP-VIP: universal and non-mix-up clevis connection for easy construction with chains, hooks and eye.
Product variant (14)
PowerPoint PP-VIP-13/5t-1 1/4"-7UNC with max. length F=45 mm
Article number: 8600575
| Attribute | Value |
|---|---|
| WLL | 5.000 kg |
| Weight | 3,5 kg |
| size A | 13 mm |
| size B | |
| size C | |
| size D | 95 mm |
| size E | 85 mm |
| size F | 45 mm |
| size M | 1 1/4"-7UNC |
| pitch T | 93 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
PP-VIP-5t-1 1/4" - DXF 2D CAD File
(ZIP, 21 KB)
-
PP-VIP-5t-1 1/4" - IGES 3D CAD File
(ZIP, 371 KB)
-
PP-VIP-5t-1 1/4" - STEP 3D CAD File
(ZIP, 328 KB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
manual de instrucciones PP-S/PP-B/PP-VIP
(PDF, 2 MB)
-
(PDF, 1 MB)
PowerPoint PP-VIP-16/8t-1 1/2"-6UNC with max length F=300
Article number: 8600305
| Attribute | Value |
|---|---|
| WLL | 8.000 kg |
| Weight | 6,9 kg |
| size A | 16 mm |
| size D | 100 mm |
| size E | 90 mm |
| size F max | 300 mm |
| size M | 1 1/2"-6UNC |
| pitch T | 100 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
PP-VIP-8t-1 1/2" - DXF 2D CAD File
(ZIP, 21 KB)
-
PP-VIP-8t-1 1/2" - IGES 3D CAD File
(ZIP, 411 KB)
-
PP-VIP-8t-1 1/2" - STEP 3D CAD File
(ZIP, 367 KB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
manual de instrucciones PP-S/PP-B/PP-VIP
(PDF, 2 MB)
-
(PDF, 1 MB)
So-PowerPoint PP-VIP-4/0.6t-1/2"-13UNC with special length (40-149)
Article number: 8600320
| Attribute | Value |
|---|---|
| WLL | 600 kg |
| Weight | |
| size A | 4 mm |
| size D | 42 mm |
| size E | 36 mm |
| size F vario | 40-149 |
| size M | 1/2"-13UNC |
| pitch T | 47 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-0,6t-1/2" - DXF 2D CAD File
(ZIP, 19 KB)
-
So-PP-VIP-0,6t-1/2" - IGES 3D CAD File
(ZIP, 506 KB)
-
So-PP-VIP-0,6t-1/2" - STEP 3D CAD File
(ZIP, 469 KB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
manual de instrucciones PP-S/PP-B/PP-VIP
(PDF, 2 MB)
-
(PDF, 1 MB)
So-PowerPoint PP-VIP-6/1.3t-5/8"-11UNC with special length (50-180)
Article number: 8600321
| Attribute | Value |
|---|---|
| WLL | 1.300 kg |
| Weight | |
| size A | 6 mm |
| size D | 48 mm |
| size E | 41 mm |
| size F vario | 50-180 |
| size M | 5/8"-11UNC |
| pitch T | 58 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-1,3t-5/8" - DXF 2D CAD File
(ZIP, 20 KB)
-
So-PP-VIP-1,3t-5/8" - IGES 3D CAD File
(ZIP, 516 KB)
-
So-PP-VIP-1,3t-5/8" - STEP 3D CAD File
(ZIP, 480 KB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
manual de instrucciones PP-S/PP-B/PP-VIP
(PDF, 2 MB)
-
(PDF, 1 MB)
So-PowerPoint PP-VIP-8/2t-3/4"-10UNC with special length (56-222)
Article number: 8600322
| Attribute | Value |
|---|---|
| WLL | 2.000 kg |
| Weight | |
| size A | 8 mm |
| size D | 62 mm |
| size E | 55 mm |
| size F vario | 56-222 |
| size M | 3/4"-10UNC |
| pitch T | 73 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-2t-3/4" - DXF 2D CAD File
(ZIP, 19 KB)
-
So-PP-VIP-2t-3/4" - IGES 3D CAD File
(ZIP, 468 KB)
-
So-PP-VIP-2t-3/4" - STEP 3D CAD File
(ZIP, 436 KB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
manual de instrucciones PP-S/PP-B/PP-VIP
(PDF, 2 MB)
-
(PDF, 1 MB)
