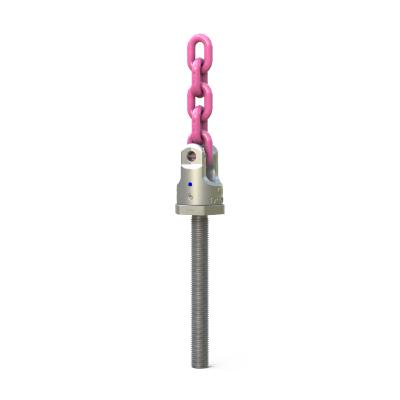

PP-VIP PowerPoint® Direct VIP chain connection, UNC thread
UNC inch thread.
- Large WLL range 0.63 t – 8 t.
- PP-VIP: direct chain connection.
- So-PP-S, So-PP-B, So-PP-VIP: variable thread lengths.
- Rotatable 90° to the bolt-on direction under WLL.
- Lowest kinking possibility due to cardan joint.
- PP-VIP, So-PP-VIP: universal and non-mix-up clevis connection for easy construction with chains, hooks and eye.
Product variant (14)
So-PowerPoint PP-VIP-10/3.5t-1"-8UNC with variable length (25-74)
Article number: 8600323
| Attribute | Value |
|---|---|
| WLL | 3.500 kg |
| Weight | |
| size A | 10 mm |
| size D | 81 mm |
| size E | 70 mm |
| size F vario | 25-74 |
| size M | 1"-8UNC |
| pitch T | 94 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 18 KB)
-
(ZIP, 420 KB)
-
(ZIP, 384 KB)
-
(PDF, 2 MB)
-
(PDF, 1 MB)
-
(PDF, 2 MB)
-
PDF-Info-So-PP-VIP-10/3,5t-1"-8UNC Vario-en
(PDF, 118 KB)
-
PDF-Info-So-PP-VIP-10/3,5t-1"-8UNC Vario-fr
(PDF, 119 KB)
-
PDF-Info-So-PP-VIP-10/3,5t-1"-8UNC Vario-it
(PDF, 119 KB)
-
PDF-Info-So-PP-VIP-10/3,5t-1"-8UNC Vario-es
(PDF, 119 KB)
So-PowerPoint PP-VIP-13/5t-1 1/4"-7UNC with variable length (31-91)
Article number: 8600324
| Attribute | Value |
|---|---|
| WLL | 5.000 kg |
| Weight | |
| size A | 13 mm |
| size D | 99 mm |
| size E | 85 mm |
| size F vario | 31-91 |
| size M | 1 1/4"-7UNC |
| pitch T | 108 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-5t_1-1-4_MAX_dxf.zip
(ZIP, 19 KB)
-
So-PP-VIP-5t_1-1-4_MAX_igs.zip
(ZIP, 463 KB)
-
So-PP-VIP-5t_1-1-4_MAX_stp.zip
(ZIP, 426 KB)
-
(PDF, 2 MB)
-
(PDF, 1 MB)
-
(PDF, 2 MB)
-
PDF-Info-So-PP-VIP-13/5t-1 1/4"-7UNC Vario-en
(PDF, 118 KB)
-
PDF-Info-So-PP-VIP-13/5t-1 1/4"-7UNC Vario-fr
(PDF, 119 KB)
-
PDF-Info-So-PP-VIP-13/5t-1 1/4"-7UNC Vario-it
(PDF, 119 KB)
-
PDF-Info-So-PP-VIP-13/5t-1 1/4"-7UNC Vario-es
(PDF, 119 KB)
PowerPoint PP-VIP-16/8t-1 1/2"-6UNC with variable length (39-300)
Article number: 8600305
| Attribute | Value |
|---|---|
| WLL | 8.000 kg |
| Weight | |
| size A | 16 mm |
| size D | 100 mm |
| size E | 90 mm |
| size F vario | 39-300 |
| size M | 1 1/2"-6UNC |
| pitch T | 100 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-8t_1-1-2_MAX_dxf.zip
(ZIP, 15 KB)
-
So-PP-VIP-8t_1-1-2_MAX_igs.zip
(ZIP, 334 KB)
-
So-PP-VIP-8t_1-1-2_MAX_stp.zip
(ZIP, 287 KB)
-
(PDF, 2 MB)
-
(PDF, 1 MB)
-
(PDF, 2 MB)
-
PDF-Info-So-PP-VIP-16/8t-1 1/2"-6UNC Vario -en
(PDF, 120 KB)
-
PDF-Info-So-PP-VIP-16/8t-1 1/2"-6UNC Vario -fr
(PDF, 121 KB)
-
PDF-Info-So-PP-VIP-16/8t-1 1/2"-6UNC Vario -it
(PDF, 120 KB)
-
PDF-Info-So-PP-VIP-16/8t-1 1/2"-6UNC Vario -es
(PDF, 121 KB)
PowerPoint PP-VIP-16/8t-1 1/2"-8UN with variable length (39-300)
Article number: 8600305
| Attribute | Value |
|---|---|
| WLL | 8.000 kg |
| Weight | |
| size A | 16 mm |
| size D | 100 mm |
| size E | 90 mm |
| size F vario | 39-300 |
| size M | 1 1/2"-8UN |
| pitch T | 100 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
So-PP-VIP-8t_1-1-2_MAX_dxf.zip
(ZIP, 15 KB)
-
So-PP-VIP-8t_1-1-2_MAX_igs.zip
(ZIP, 334 KB)
-
So-PP-VIP-8t_1-1-2_MAX_stp.zip
(ZIP, 287 KB)
-
(PDF, 2 MB)
-
(PDF, 1 MB)
-
(PDF, 2 MB)
-
PDF-Info-So-PP-VIP-16/8t-1 1/2"-8UN Vario-en
(PDF, 120 KB)
-
PDF-Info-So-PP-VIP-16/8t-1 1/2"-8UN Vario-fr
(PDF, 121 KB)
-
PDF-Info-So-PP-VIP-16/8t-1 1/2"-8UN Vario-it
(PDF, 120 KB)
-
PDF-Info-So-PP-VIP-16/8t-1 1/2"-8UN Vario-es
(PDF, 121 KB)
