VLBG Load ring metric thread with variable length, comes with locknut and washer
Metric thread in variable length.
- Large WLL range.
- Captive but exchangeable RUD-Bolt with special corrosion protection Corrud-DT.
- The clamping spring achieves noise reduction and keeps the suspension ring in the desired direction; thereby simple hinging of the lifting means is possible or a flat design in the folded state.
Product variant (3)
Load support VLBG-2t-M18 with special length H=18-27 mm
Article number: 8600384

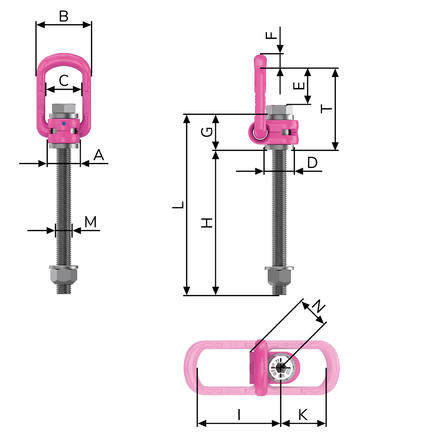

| Attribute | Value |
|---|---|
| WLL | 2.000 kg |
| Weight | |
| size A | 50 mm |
| size B | 82 mm |
| size C | 54 mm |
| size D | 45 mm |
| size E | 55 mm |
| size F | 16,5 mm |
| size G | 43 mm |
| size H vario | 18-27 |
| size I | 113 mm |
| size K | 64 mm |
| size L vario | 61-70 |
| size M | M18 |
| size N | 48 mm |
| pitch T | 110 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 47 KB)
-
(ZIP, 517 KB)
-
(ZIP, 453 KB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
Load ring VLBG-2,5t-M22 with variable length H=22-57 mm
Article number: 8600385
| Attribute | Value |
|---|---|
| WLL | 2.500 kg |
| Weight | |
| size A | 50 mm |
| size B | 82 mm |
| size C | 54 mm |
| size D | 45 mm |
| size E | 54 mm |
| size F | 16,5 mm |
| size G | 43 mm |
| size H vario | 22-57 |
| size I | 113 mm |
| size K | 64 mm |
| size L vario | 65-100 |
| size M | M22 |
| size N | 48 mm |
| pitch T | 110 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 500 KB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(PDF, 2 MB)
-
(ZIP, 562 KB)
Load support VLBG-4t-M27 with special length H=27-239 mm
Article number: 8600387
| Attribute | Value |
|---|---|
| WLL | 4.000 kg |
| Weight | |
| size A | 60 mm |
| size B | 103 mm |
| size C | 65 mm |
| size D | 60 mm |
| size E | 59 mm |
| size F | 22,5 mm |
| size G | 61 mm |
| size H vario | 27-239 |
| size I | 151 mm |
| size K | 80 mm |
| size L vario | 88-300 |
| size M | M27 |
| size N | 67 mm |
| pitch T | 147 mm |
