VIP Master links VAK-4, 4-leg
VIP-Standard master link with welded-in connectors.
- All master links on this page are equipped with welded-in connectors that can be moved on all sides.
- This results in a non-mix-up connection to chain diameter and number of strands.
- The master link is supplemented with an identification tag (VKZA) with integrated chain test gauge.
- Dimensions in accordance with suspension link shape A according to DIN 5688.
Product variant (9)
VIP-Master link VAK-4-16
Article number: 7100746
| Attribute | Value |
|---|---|
| WLL | 21.200 kg |
| Weight | 17,6 kg |
| size A | 36 mm |
| size B | 140 mm |
| size C | 260 mm |
| pitch T | 470 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 99 KB)
-
(ZIP, 1 MB)
-
(ZIP, 251 KB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
VIP-Master link VAK-4-20
Article number: 7104181
| Attribute | Value |
|---|---|
| WLL | 33.600 kg |
| Weight | 39,1 kg |
| size A | 51 mm |
| size B | 190 mm |
| size C | 350 mm |
| pitch T | 614 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 95 KB)
-
(ZIP, 1 MB)
-
(ZIP, 290 KB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
VIP-Master link VAK-4-22
Article number: 7100747
| Attribute | Value |
|---|---|
| WLL | 42.000 kg |
| Weight | 45,7 kg |
| size A | 51 mm |
| size B | 190 mm |
| size C | 350 mm |
| pitch T | 644 mm |
Related downloads
Please use the contact form for further questions about our products and services.
-
(ZIP, 96 KB)
-
(ZIP, 1 MB)
-
(ZIP, 265 KB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)
-
RUD-VIP_Englisch_DGUV109-017_MRL.pdf
(PDF, 2 MB)

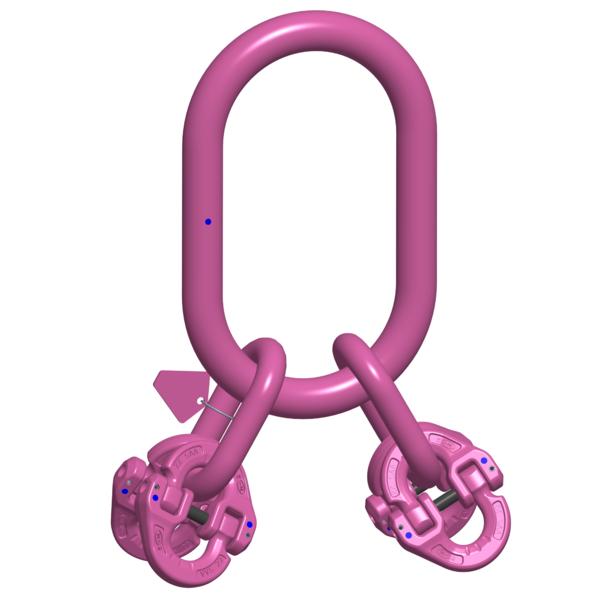

VIP-Special master link VAK-4-28 with VVS-28
Article number: 7905160

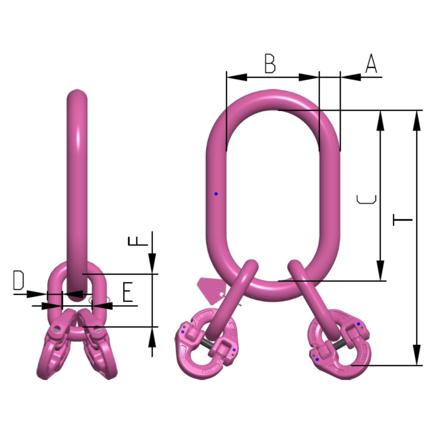

| Attribute | Value |
|---|---|
| WLL | 67.000 kg |
| Weight | 106,6 kg |
| size A | 71 mm |
| size B | 250 mm |
| size C | 460 mm |
| size D | 50 mm |
| size E | 100 mm |
| size F | 200 mm |
| pitch T | 850 mm |
