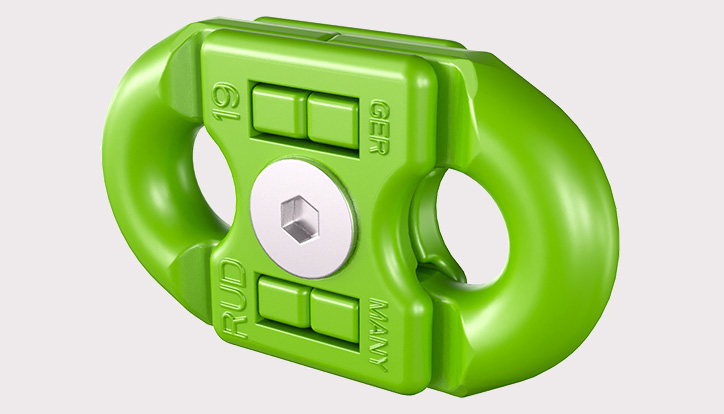

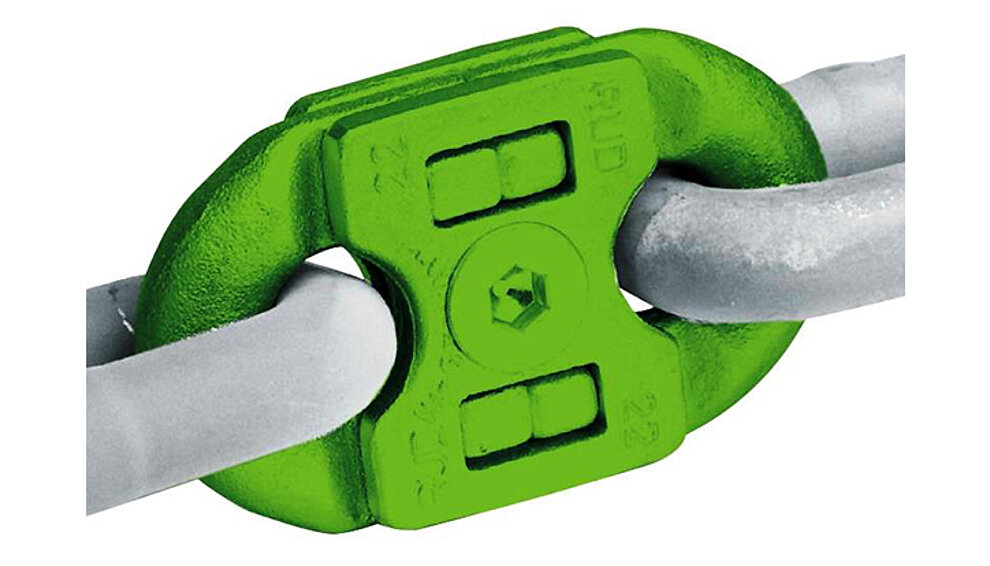

RUD conveyor technology - chain connector RSP

RUD RSP chain connector (spacesaving) can use in single and multi-strand conveyors. Runs over sprocket wheels (multi-part and single-part), grooved wheels and flat guide wheels.

Note:Make sure that the chain connectors are mounted with the correct orientation to the sprocket wheels.

Applications of the chain connector RSP

· For using in single and multi-strand conveyors
· For medium operating conditions

Advantages of the chain connector RSP

  • For medium operating condtions
  • Highly wear-resistant Installation
  • Dimension corresponding to chain link
  • Dimension Run over sprocket wheels, grooves wheels and flat wheels - vertical Run over pocket wheels vertical
  • Overall dimensions same as those of chain link

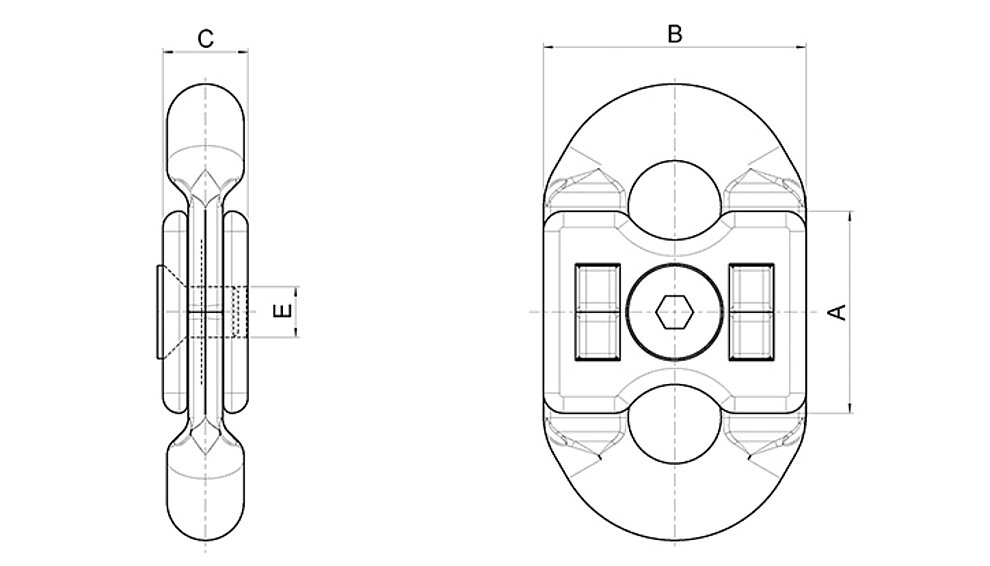

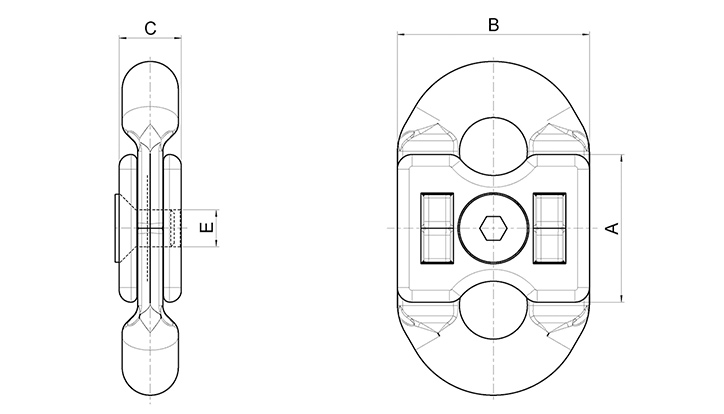

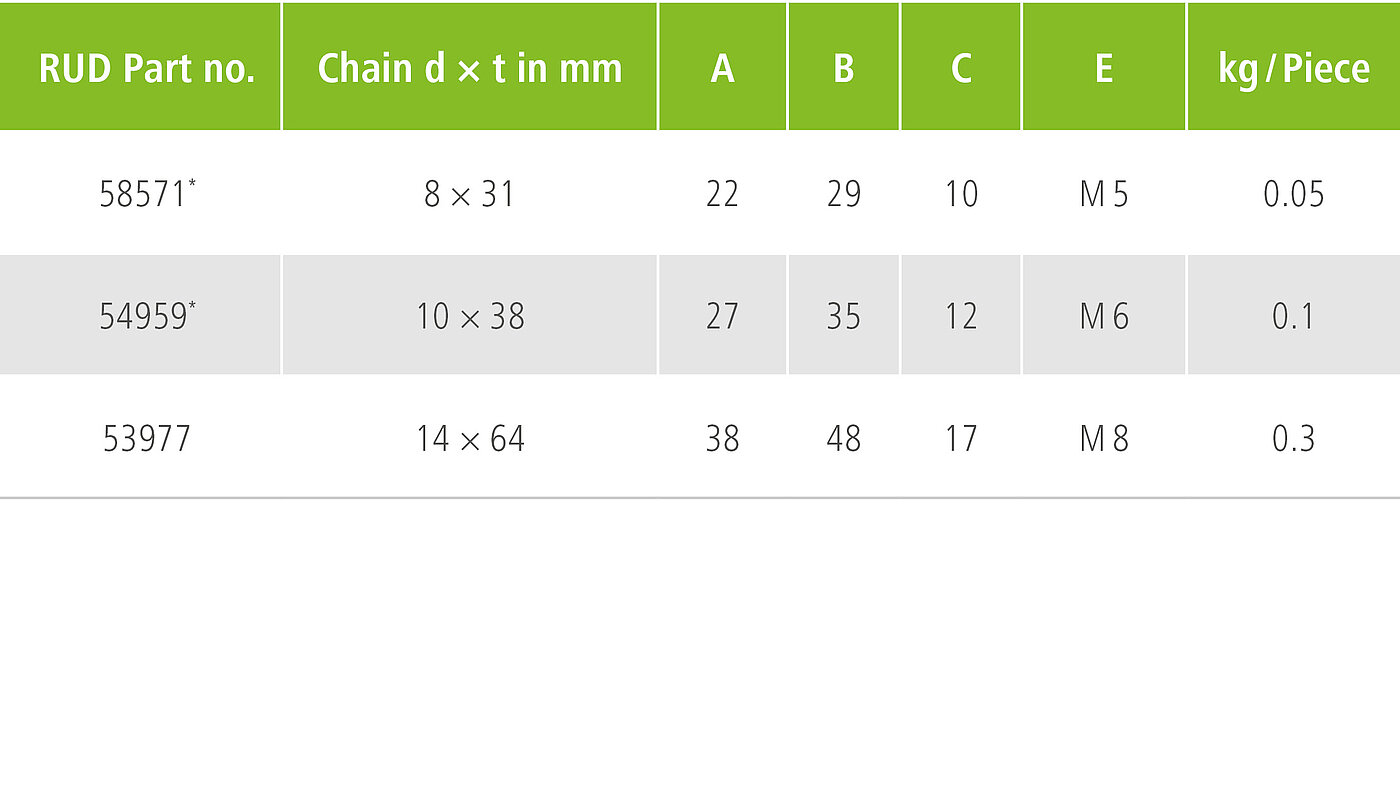

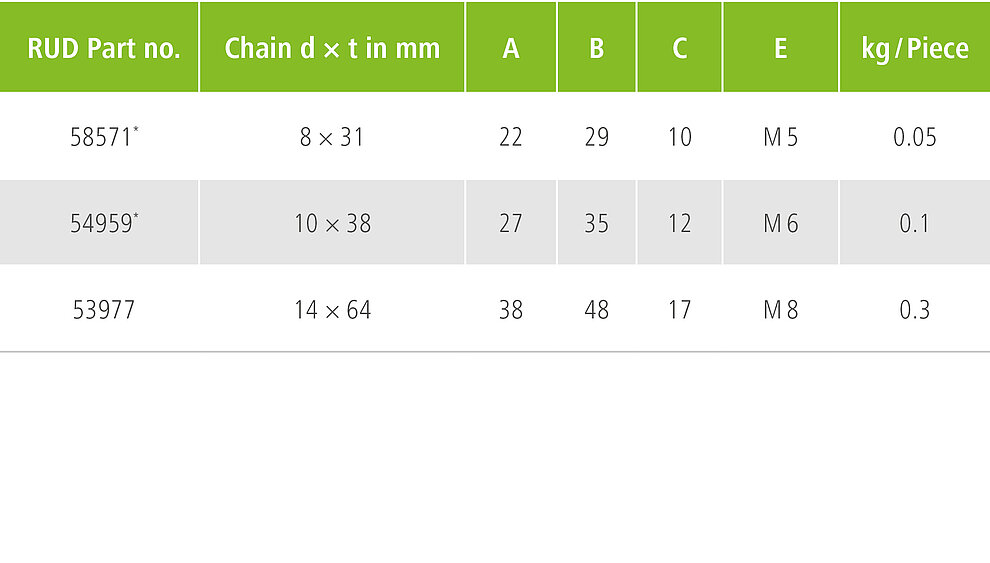

Product variants and technical data of the chain connector RSP
