RUD conveyor technology - multiple link attachments for round link chains

RUD's extensive range of multiple link attachments has bespoke solutions for every occasion. RUD can supply attachments and scrapers for conveyor chains/round steel chains, such as those used in wet ash removal systems, that can handle even the most challenging tasks.

Specially designed attachment systems for moving the plates in apron conveyors and transporting material into coaling plants are also available.

RUD offers attachments & scrapers for small to very high conveying capacities in conveyor systems based on the round link chain.

Multiple link attachment: SSRF, SSR, DUOMOUNT

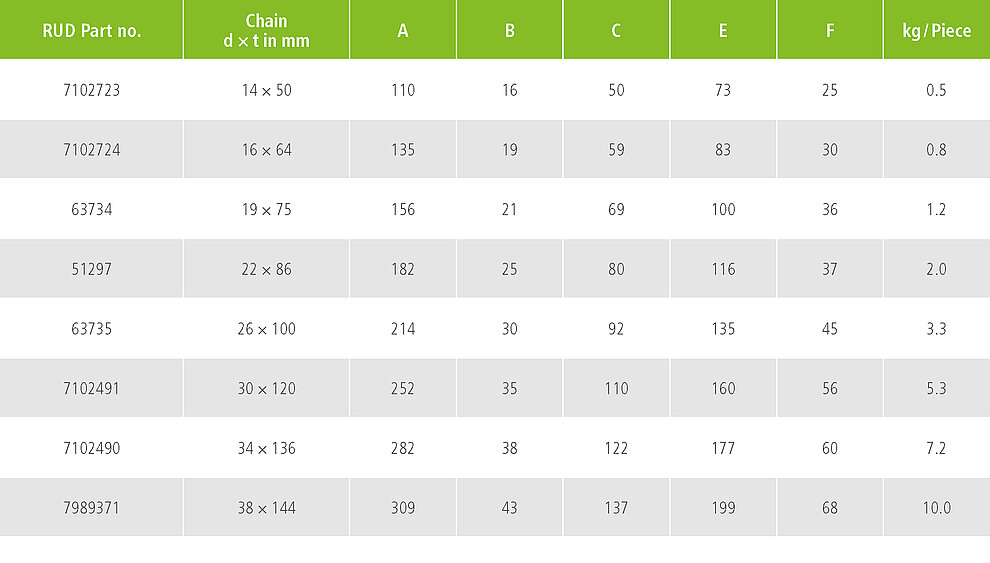

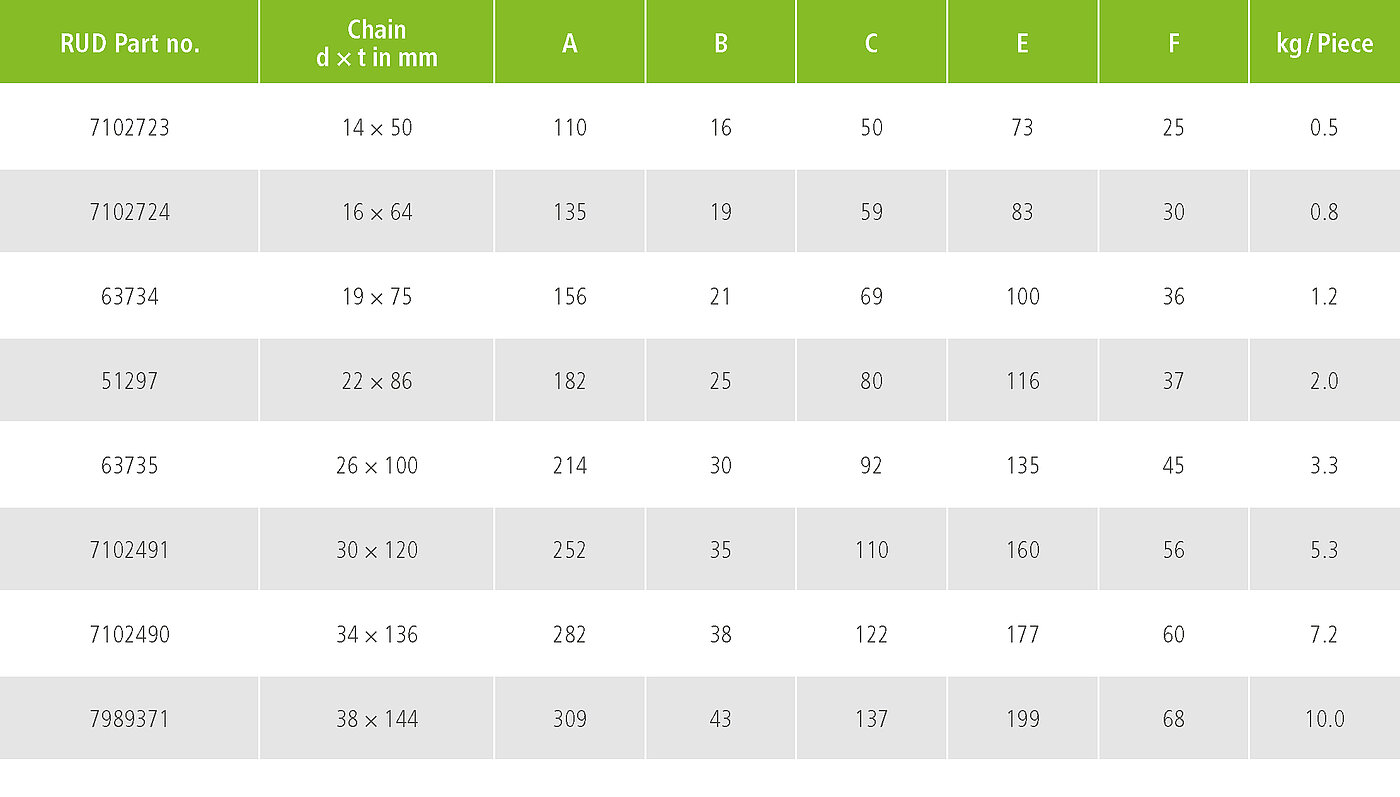

Attachment-System SSRF

For very high conveyance capacities

Advantages of Mitnehmer-Systems SSRF:
• Multiple link attachment
• For scraper height up to 2.5 times the outer chain link width
• Weldable at scraper profiles of any shapes
• Variable scraper distance possible
• Highly wear-resistant
• Run over sprocket wheels (single-part or multi-part) and reversion wheels (type A or B)
• Attachment self-locking – reversible flat SSRF

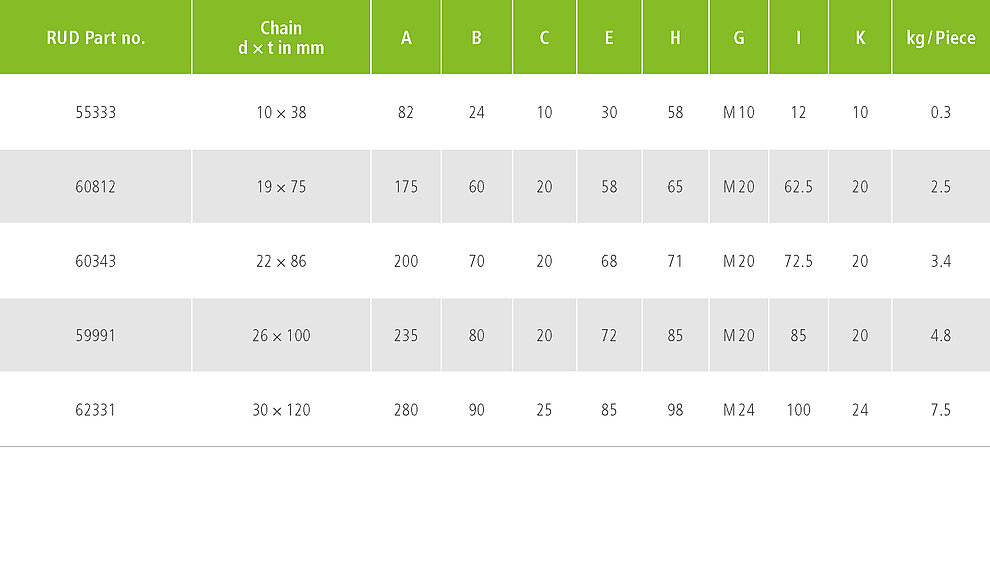

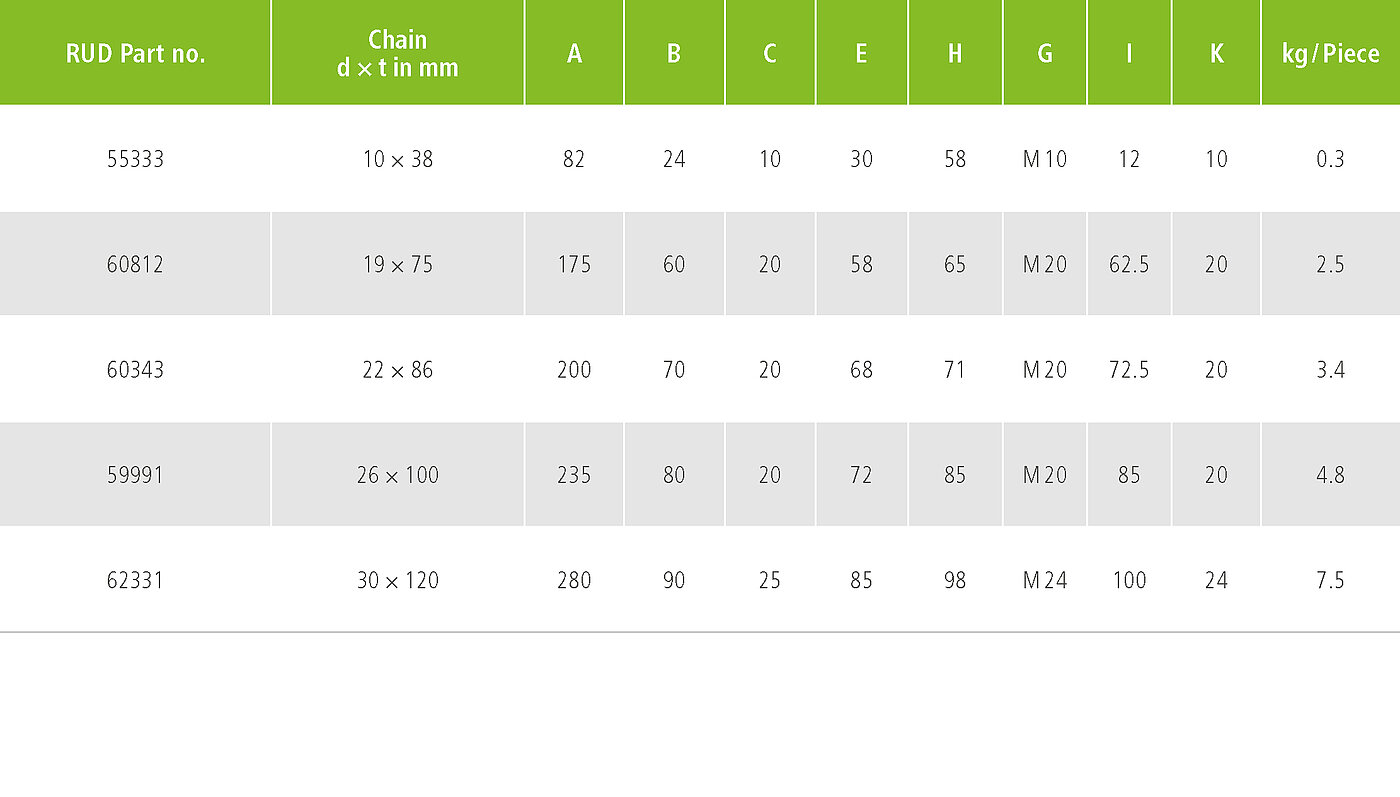

Attachment-System SSR

For difficult operating conditions

Advantages of the RUD attachment system SSR:
• For double-strand conveyors
• Reverse operation possible
• Robust and easy
• Run over sprocket wheels (single-part or multi-part) and reversion wheels (type A or B)

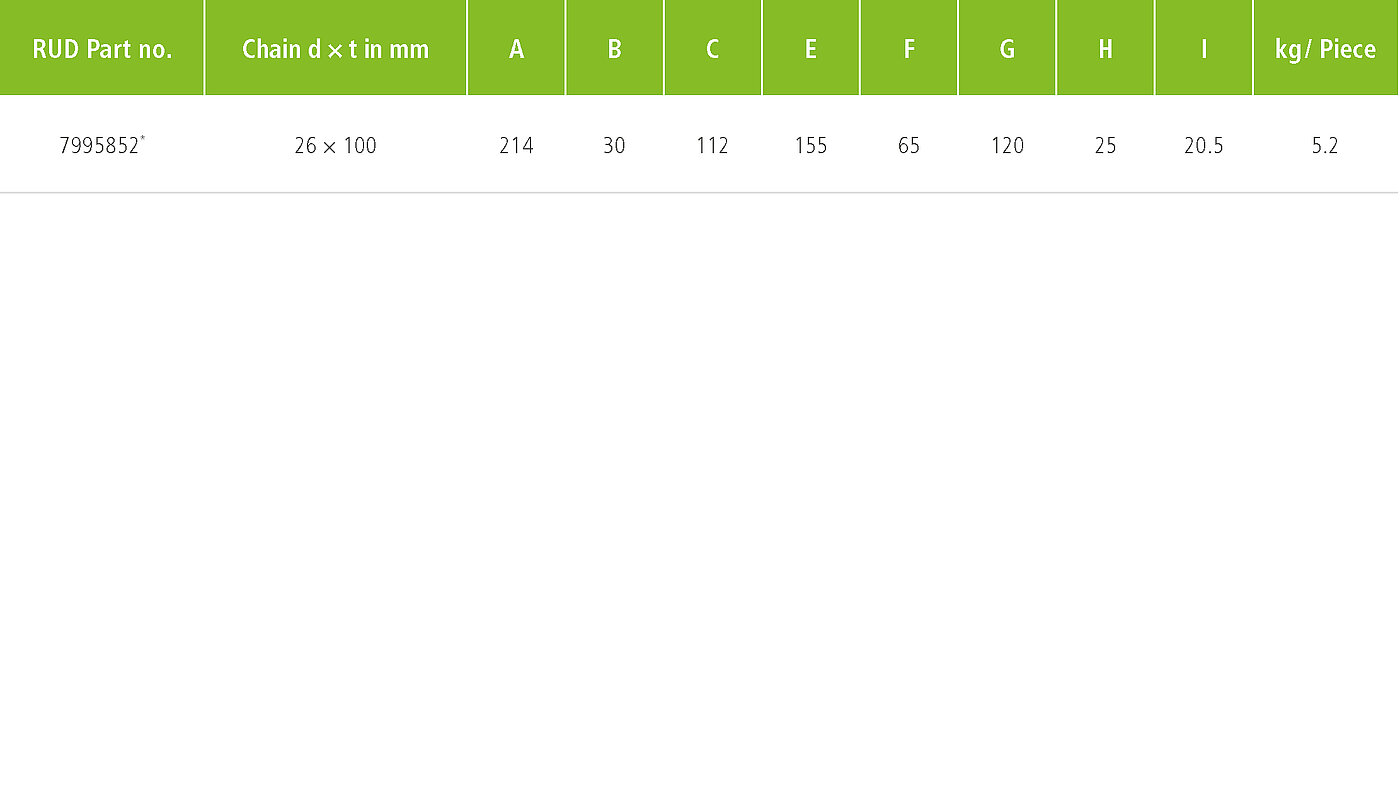

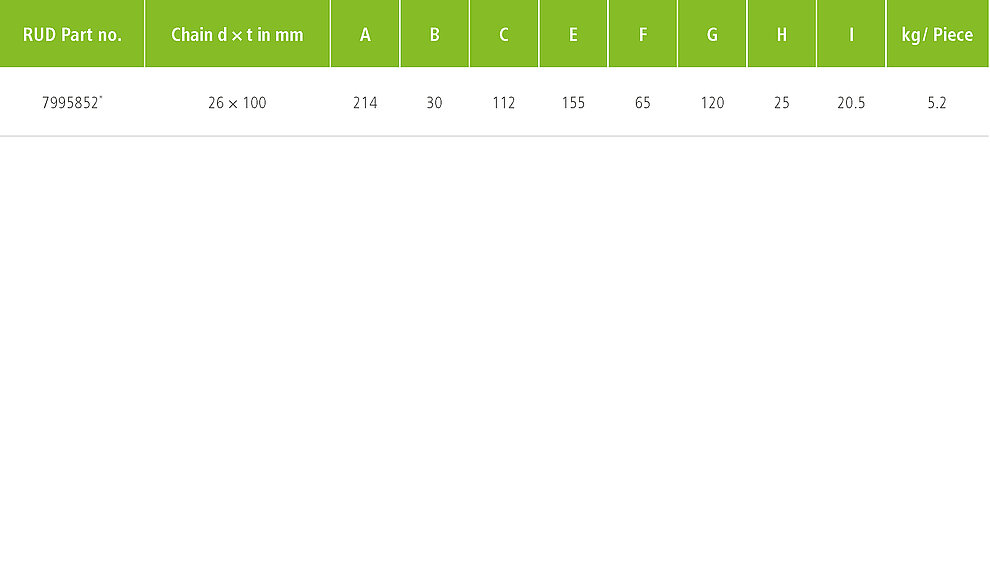

Attachment-System DUOMOUNT

For very high conveyance capacities

Advantages of the RUD attachment system DUOMOUNT:
• Multiple link attachment
• For scraper height up to 2.5 times the outer chain link width
• Can be tensioned in the tensioned chain belt
• Scraper profiles of any shapes possible
• Variable scraper distance possible
• Highly wear-resistant
• Run over sprocket wheels (single-part or multi-part) and reversion wheels (type A or B)
