RUD single link attachments for round link chains

RUD's extensive range of single link attachments has bespoke solutions for every occasion. RUD can supply attachments and scrapers for conveyor chains/round steel chains, such as those used in wet ash removal systems, that can handle even the most challenging tasks.

Specially designed attachment systems for moving the plates in apron conveyors and transporting material into coaling plants are also available.

RUD offers attachments & scrapers for small to very high conveying capacities in conveyor systems based on the round link chain.

Single link attachment: F, FM, MEZ-Z, MEZ-T, MEE-T

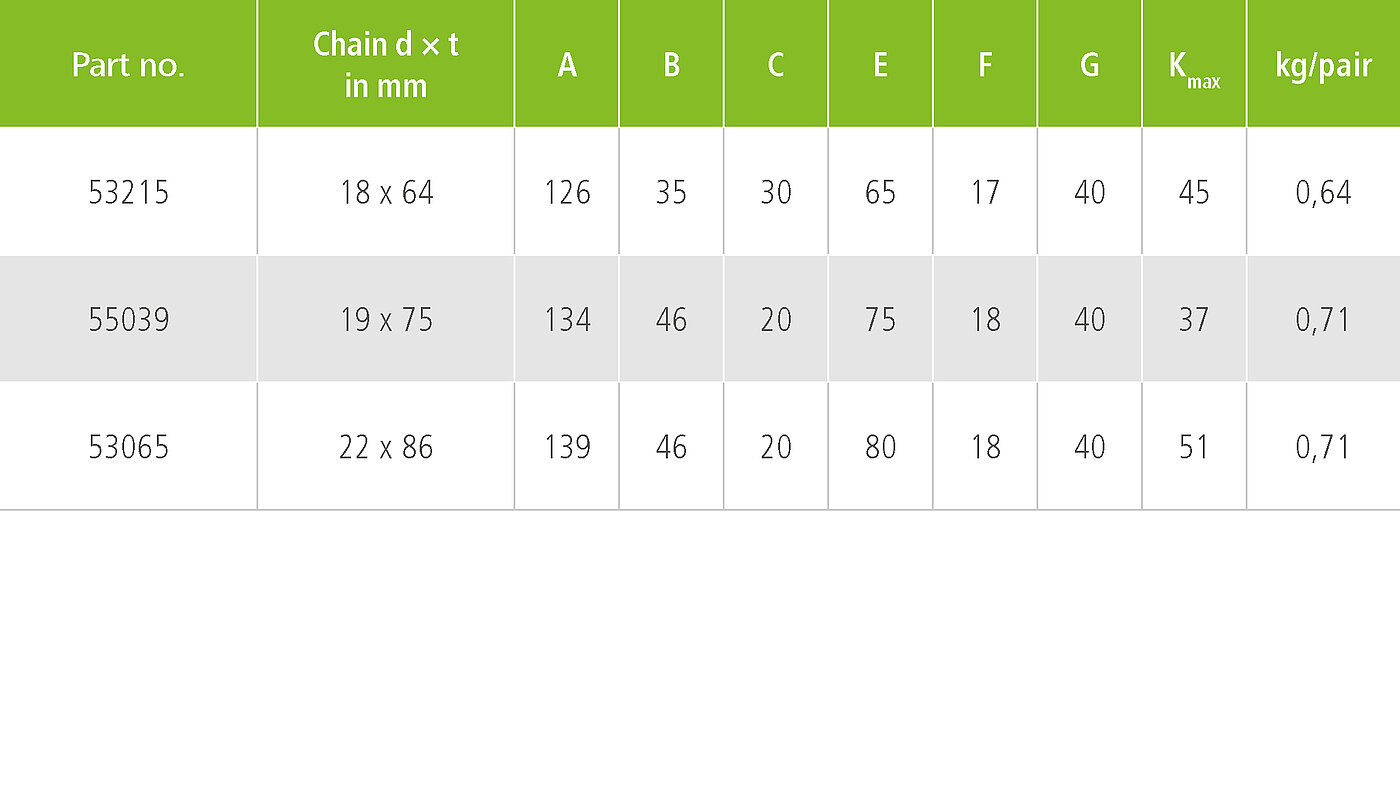

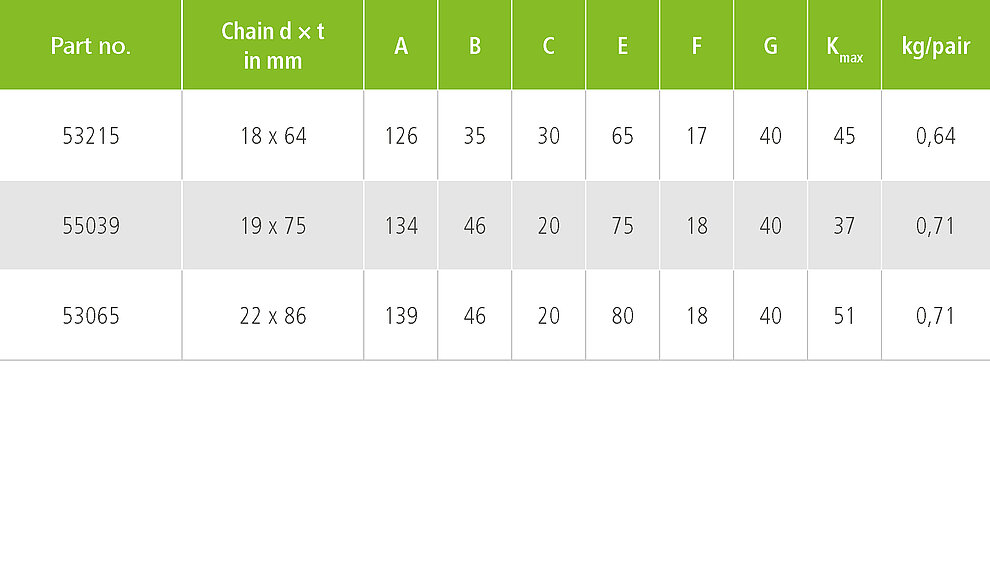

Attachment system F

For medium to difficult operating conditions

Advantages of the RUD attachment system:
• For scraper height up to 1.5 times the outer chain link width
• Assembly and disassembly in case of tensioned chain possible
• Run over sprocket wheels (single-part or multi-part) and reversion wheels type C

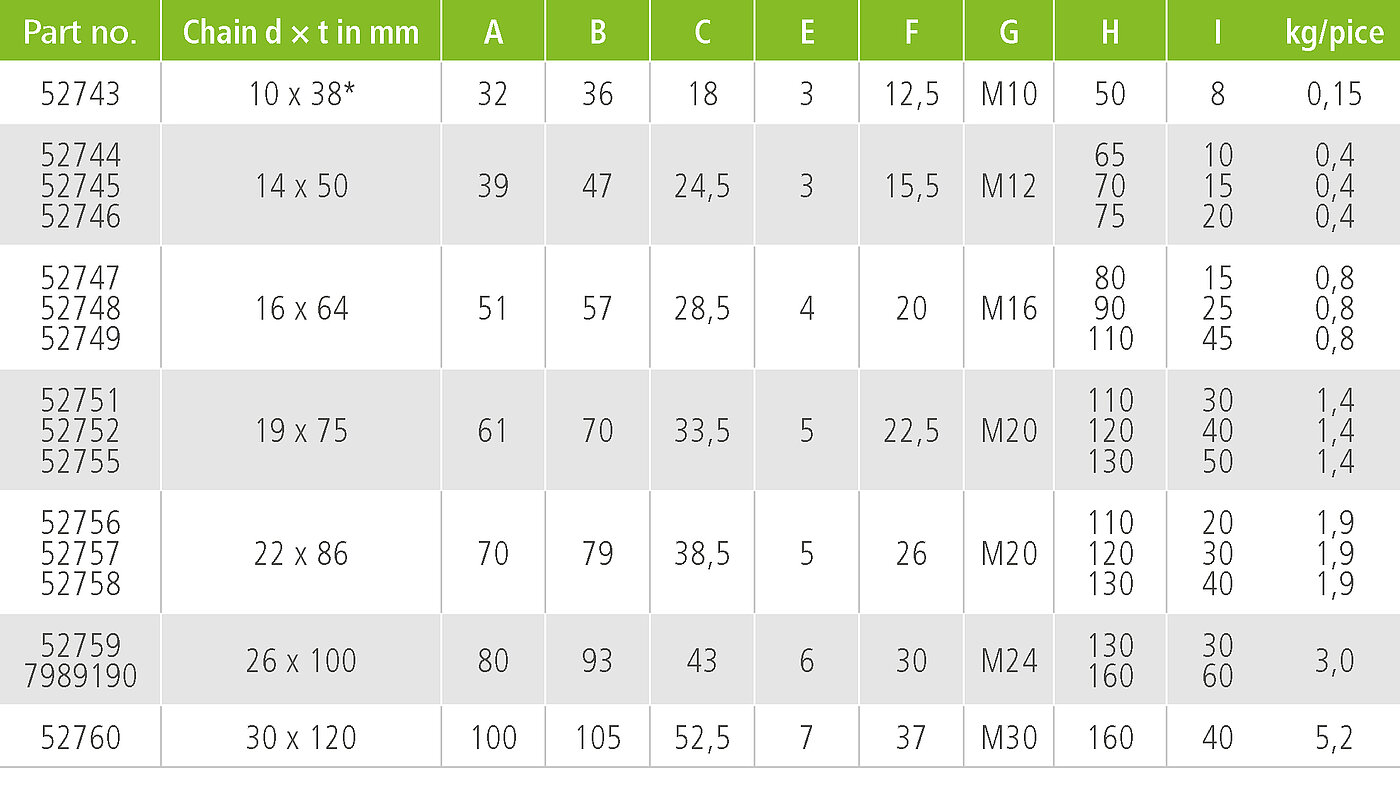

Attachment system FM

For sprocket wheel| For rough operating conditions

Advantages of the RUD attachment system FM:
• Screwed and can be clamped / screwed in the tensioned chain strand
• For scraper height up to 1.8 times the outer chain link width
• Variable scraper distance possible
• Run over sprocket wheels (single-part or multi-part) and reversion wheels type C

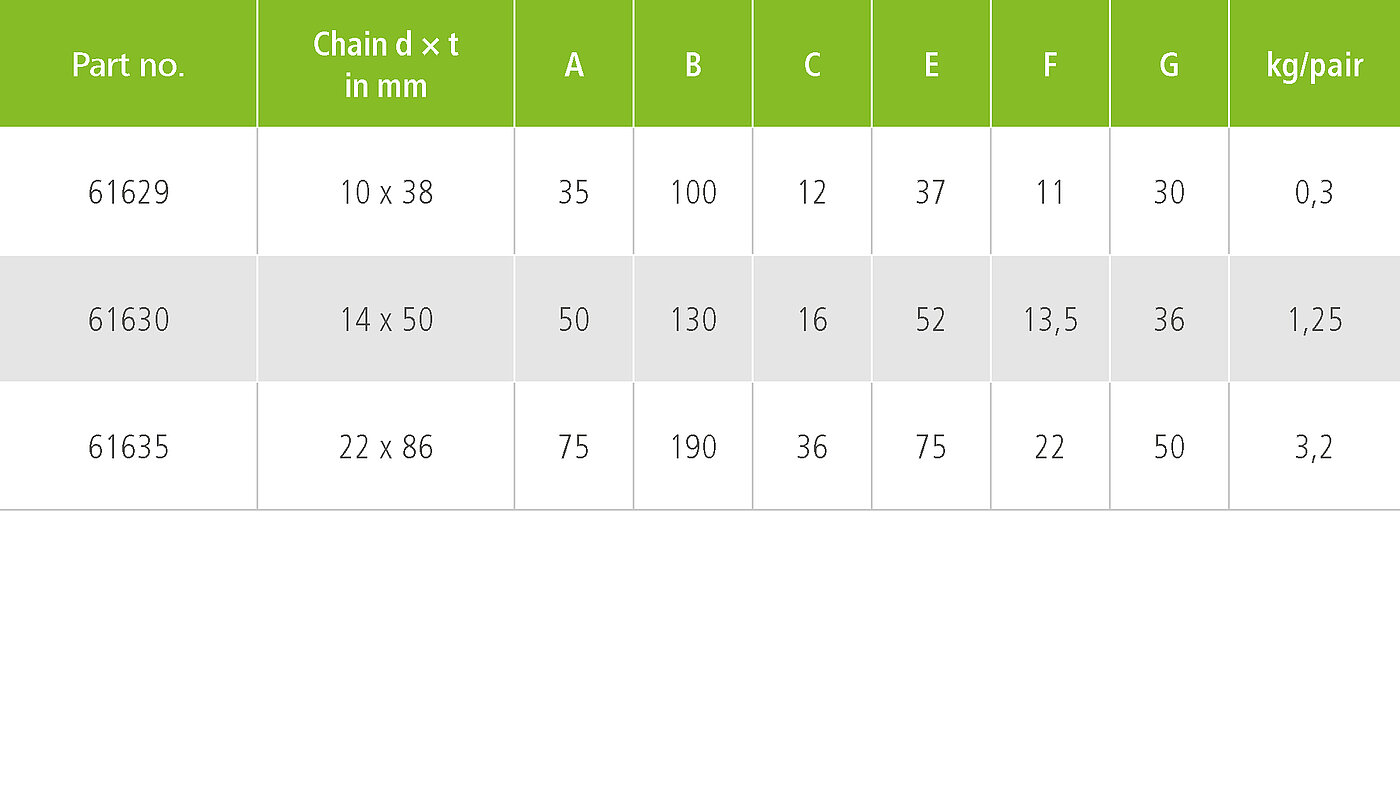

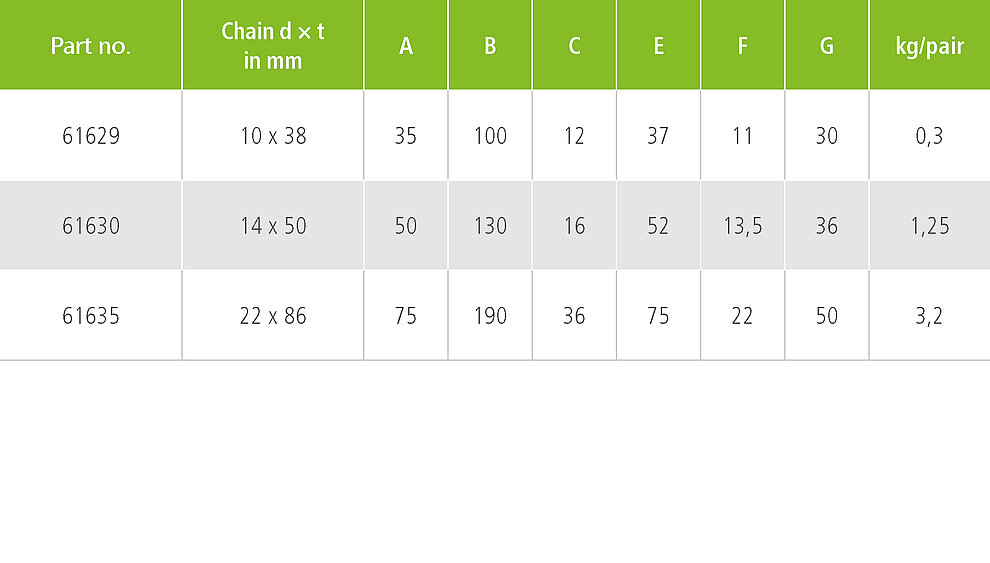

Attachment system MEZ-Z

FOR system pocket wheel | For medium to difficult operating conditions

Advantages of the RUD attachment system MEZ-T:
• For scraper height up to 1.5 times the outer chain link width
• Assembly and disassembly in case of tensioned chain possible
• Double-strand conveyor and multiple-strand conveyor systems
• Run over pocket wheels (single-part or multi-part) and reversion wheels type C

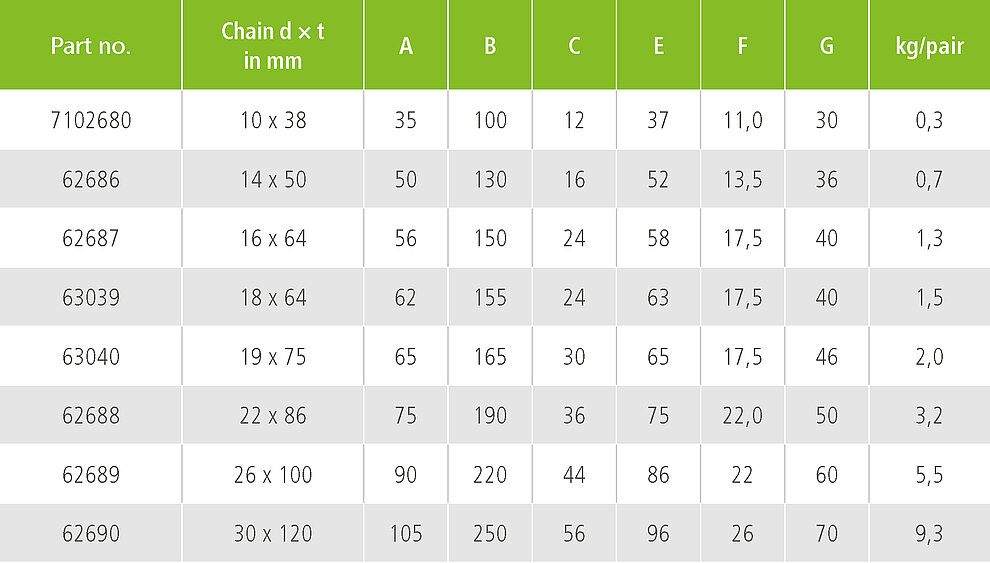

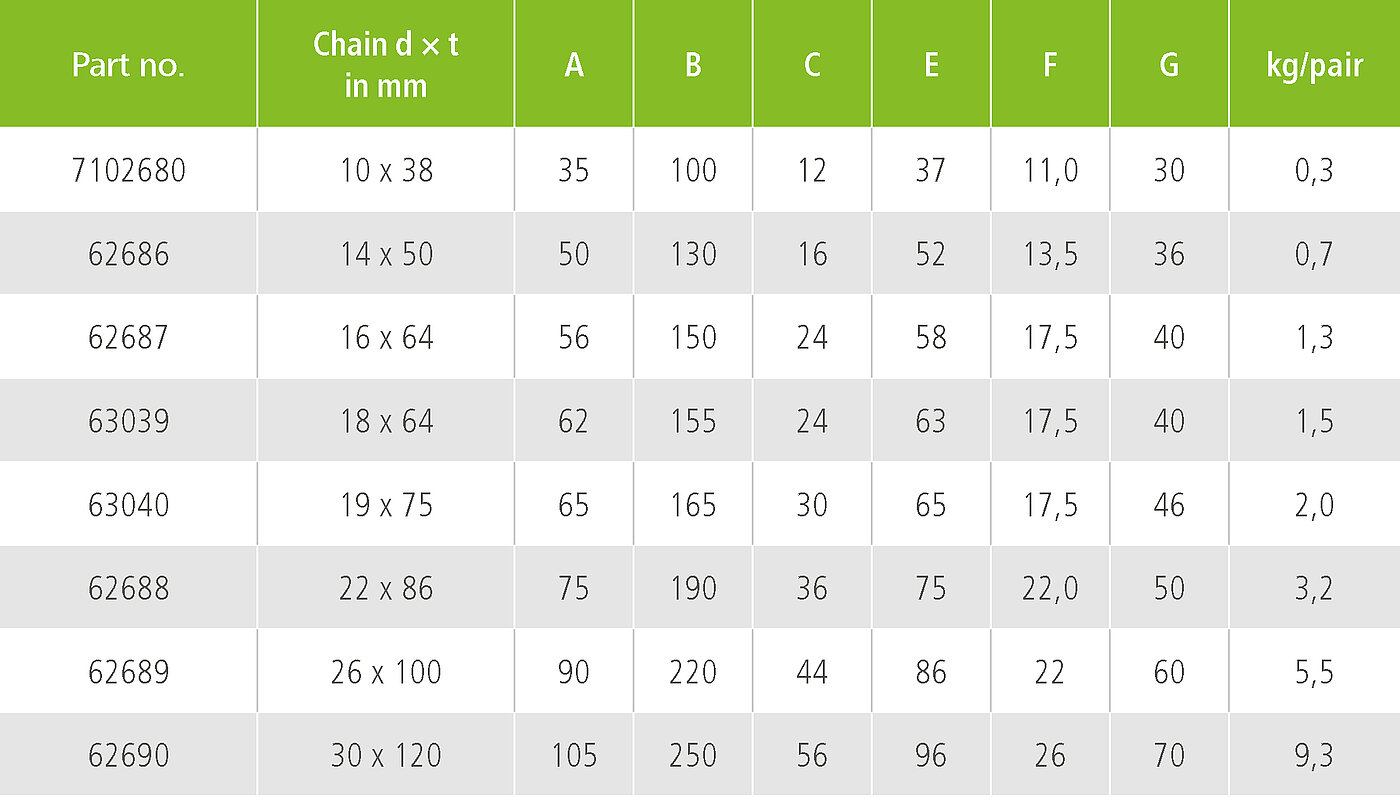

Mitnehmer-System MEZ-T

FOR system pocket wheel | For medium to difficult operating conditions

Advantages of the RUD attachment system MEZ-T:
• For scraper height up to 1.5 times the outer chain link width
• Assembly and disassembly in case of tensioned chain possible
• Double-strand conveyor and multiple-strand conveyor systems
• Run over pocket wheels (single-part or multi-part) and reversion wheels type C

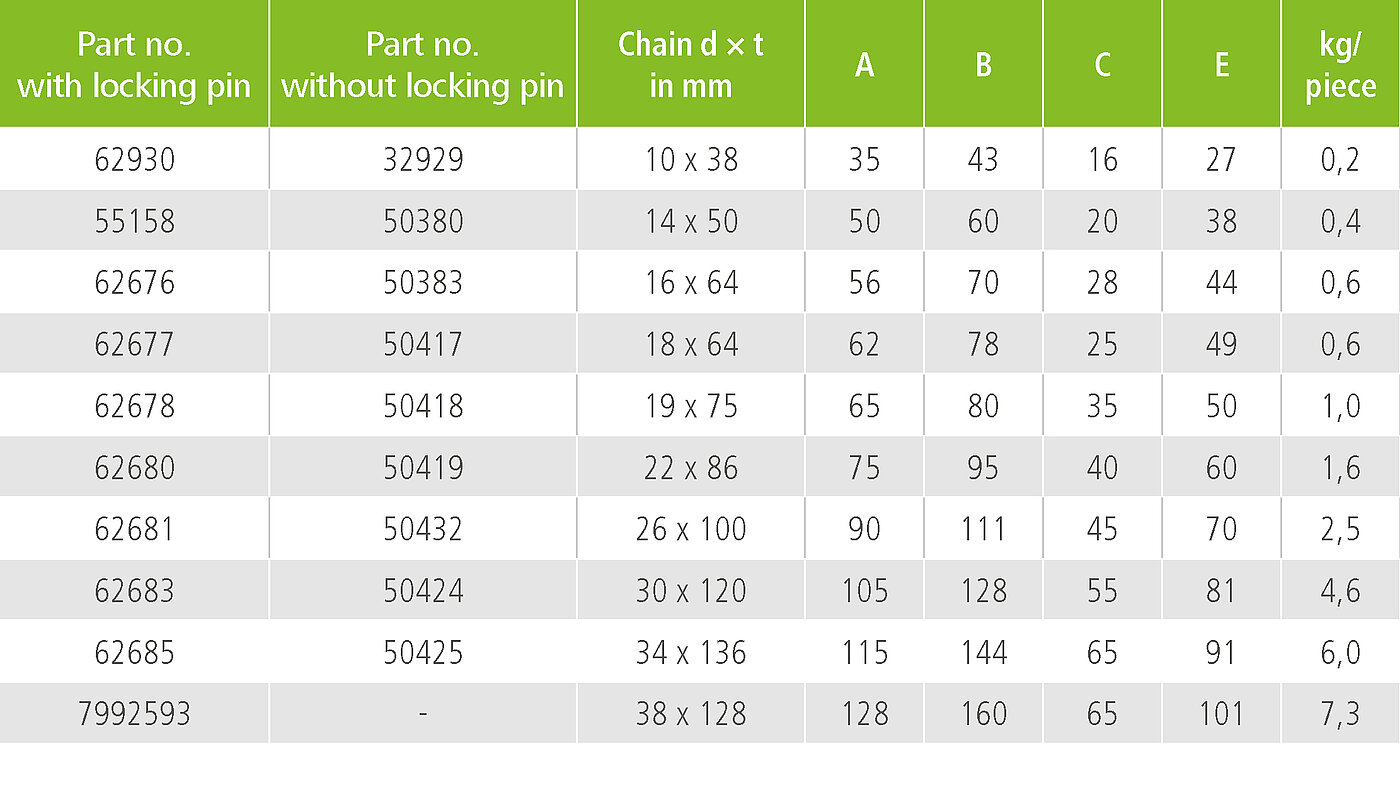

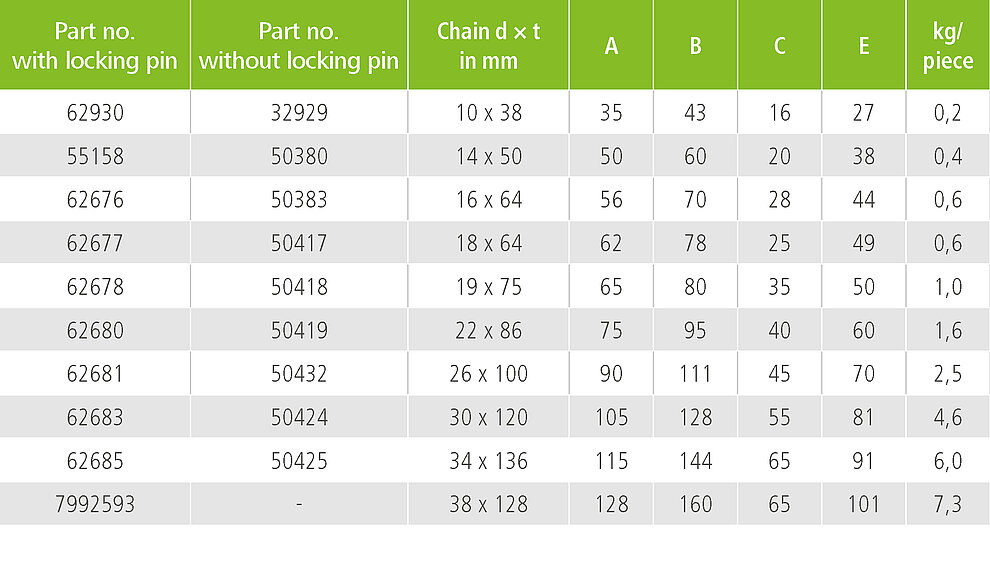

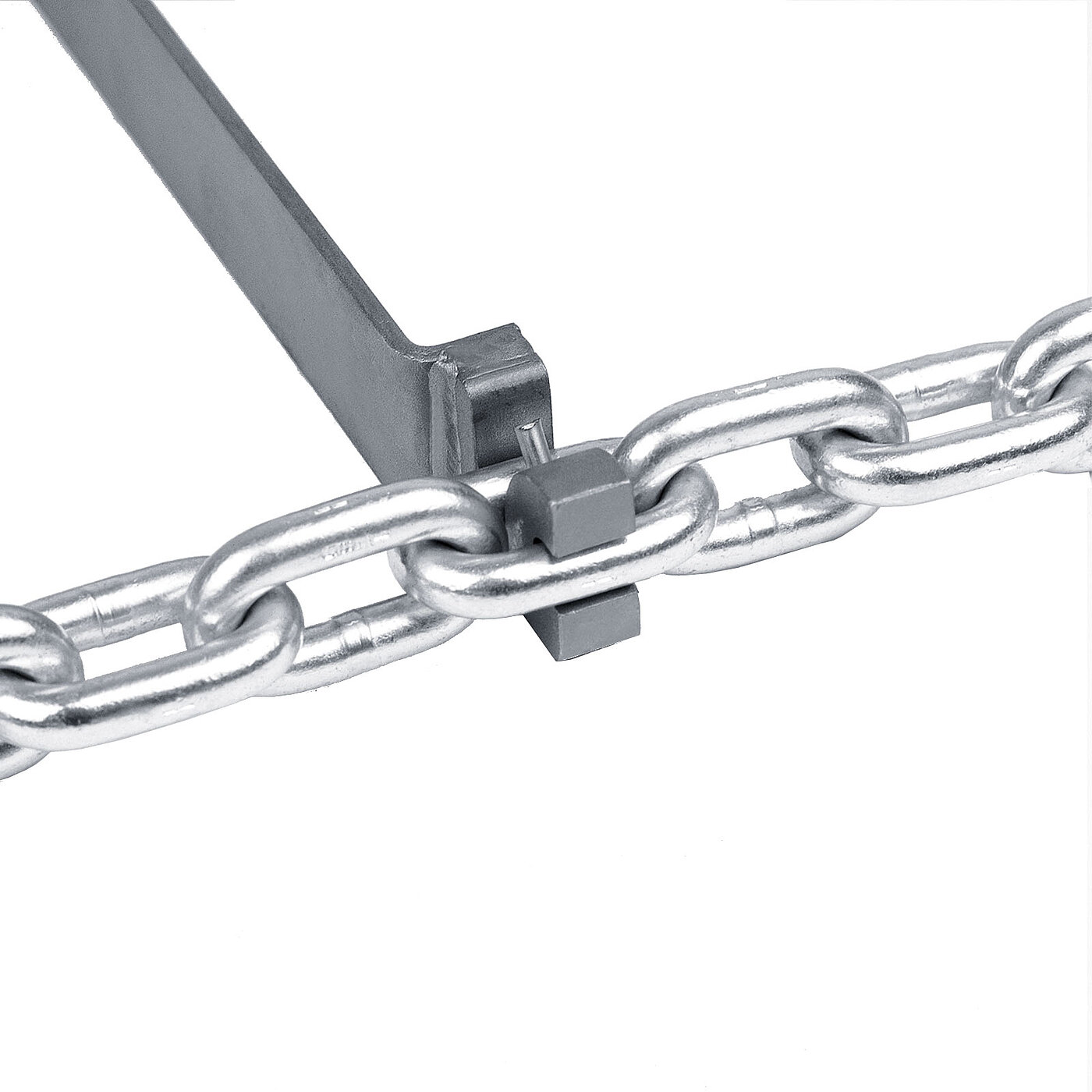

Attachment system MEE-T

FOR system pocket wheel | For difficult operating conditions

Advantages of the RUD attachment system MEZ-T:
• mee-t in one part
• Scraper height up to 1.5 times the chain link width
• Double-strand conveyor and multiple- strand conveyor systems
• Can be welded to anything
• Securing with locking pin if necessary
• Run over pocket wheels (single-part or multi-part) and reversion wheels type C
• Deliverable with and without pin locking
