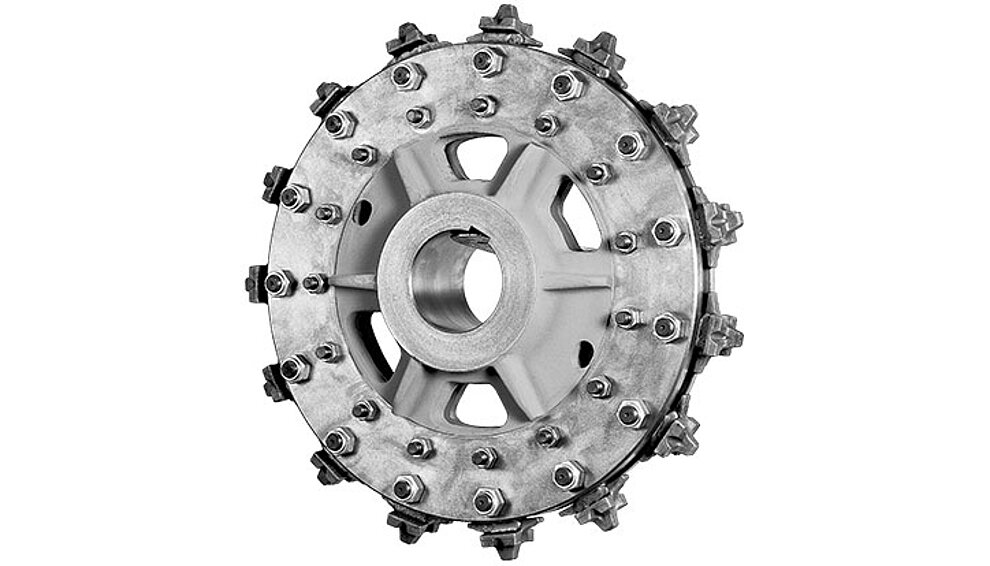

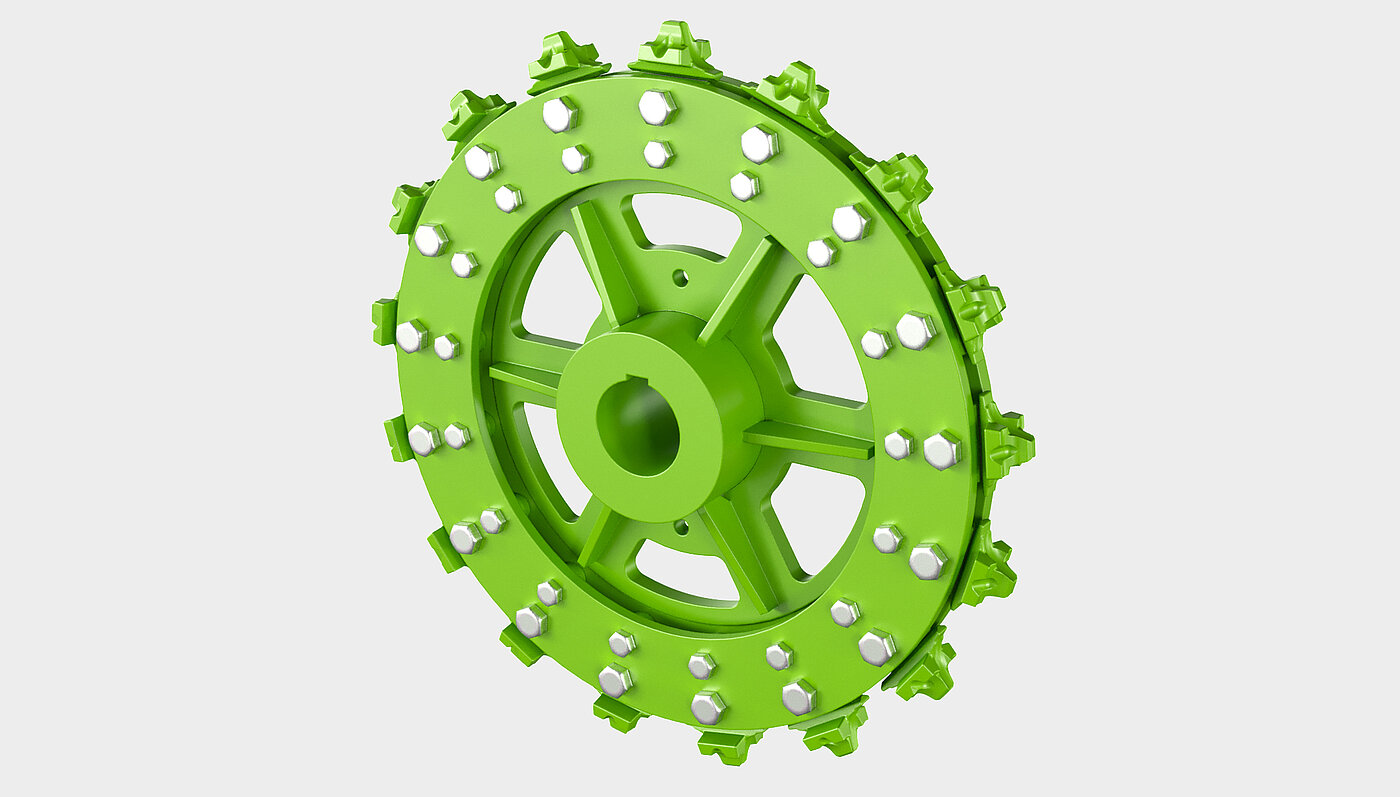

RUD conveyor technology - sprocket wheel with replaceable individual teeth

The reversing wheel / Sprocket wheel for the System 65 for bucket elevators has interchangeable single teeth made of MnCr-special steel. For best possible wear protection, the teeth are highly wear-resistant. Hub and secondary sheaves are welded construction.

Applications of reversing wheel / sprocket wheel

• Chain bucket elevators
• Difficult operating conditions

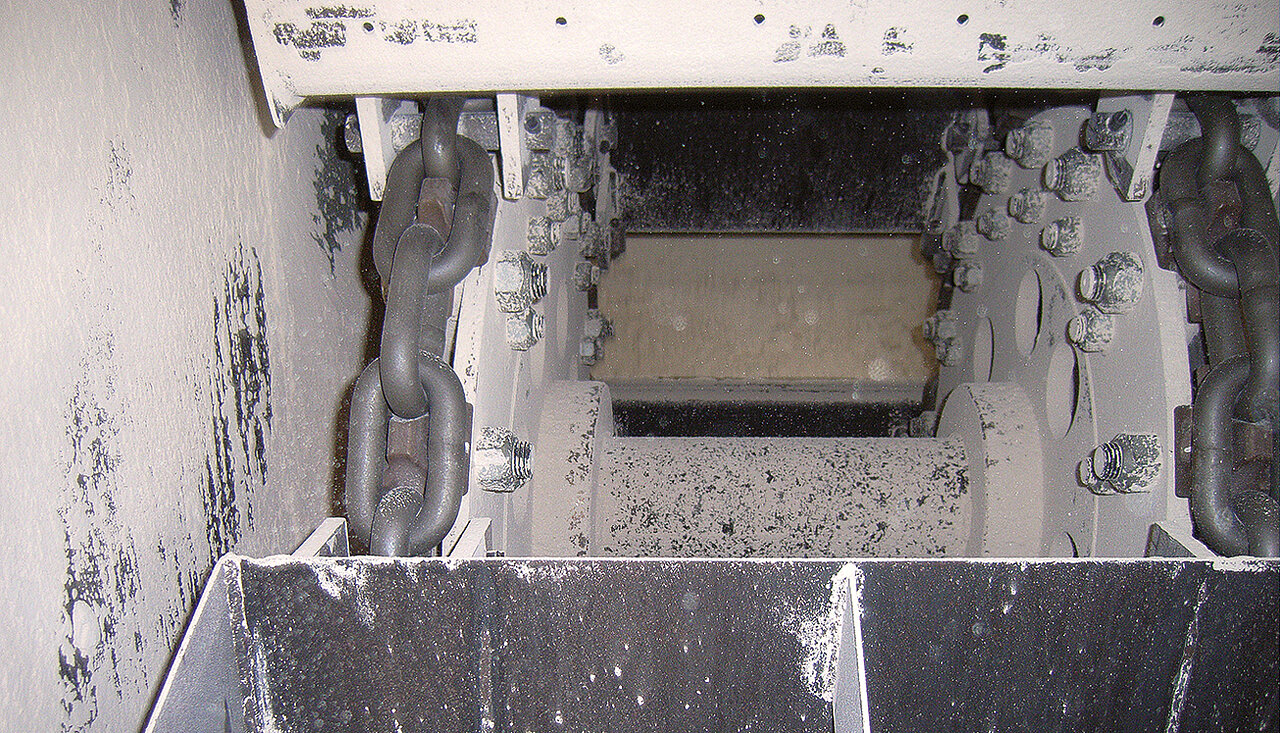

Zahnkettenrad mit auswechselbaren Einzelzähnen im Einsatz.

Advantages of the reversing wheel / sprocket wheel

• Sprocket wheel with replaceable individual teeth
• Replaceable individual teeth are made of mnCr special steel
• The teeth are highly wear-resistant
• Surface hardened
• Hub and secondary sheaves are welded construction

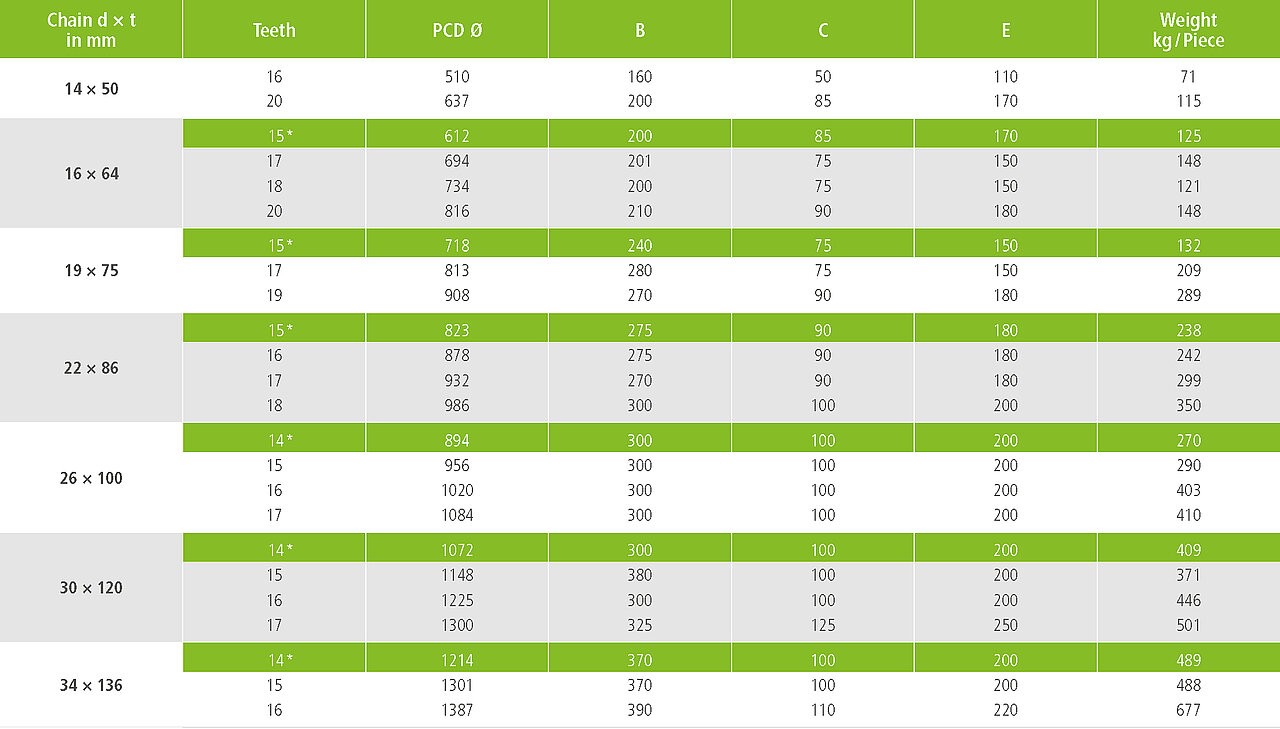

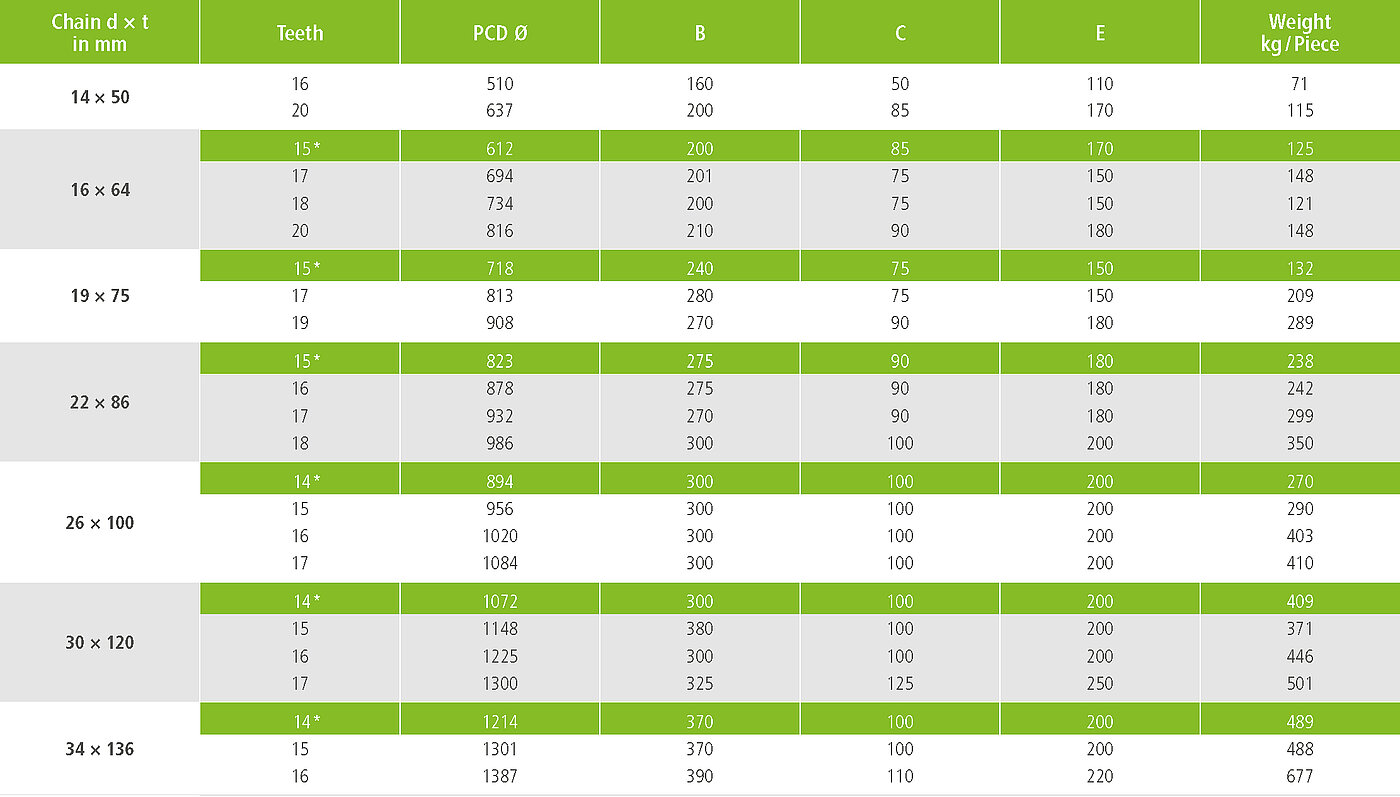

Product variants and technical data of the reversing wheel / sprocket wheel
