RUD conveyor technology - Submerged Overhung Idler (SOI)

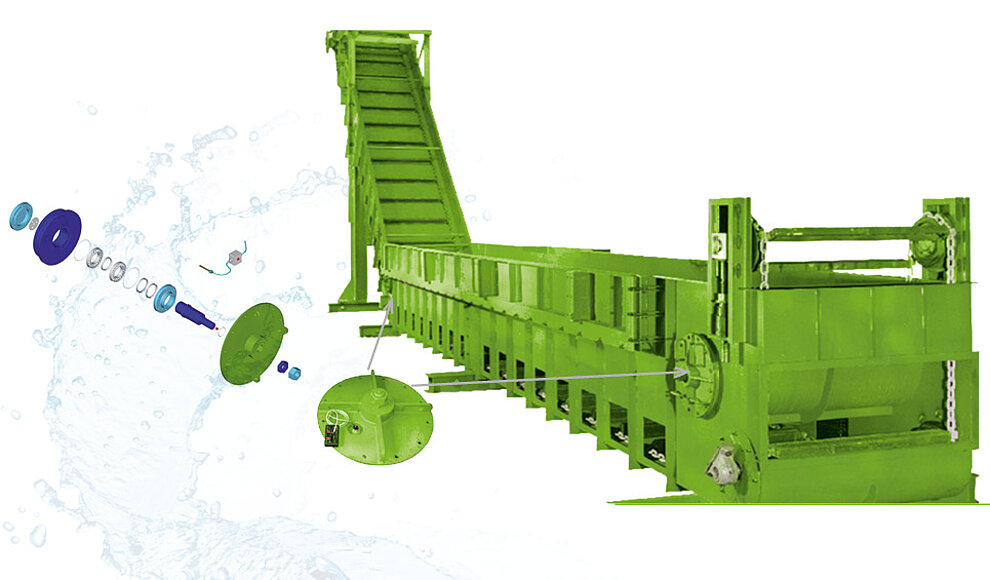

The Submerged Overhung Idler (SOI) is in contrast to the normal reversion wheel a complete component, which was designed by RUD optimally for use at wet de-ashers. It consists of the interchangeable bearing shield, the RUD reversion wheel, the complete “flying” shaft bearing and optionally the electronic circulation control.

Numerous applications worldwide prove their high availability.

Application areas of the submerged overhung idler (SOI)

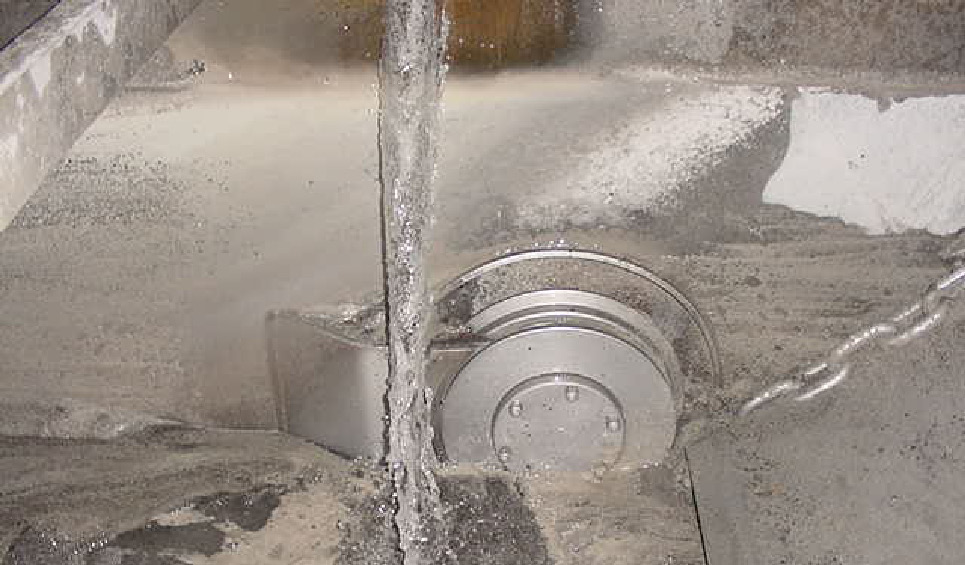

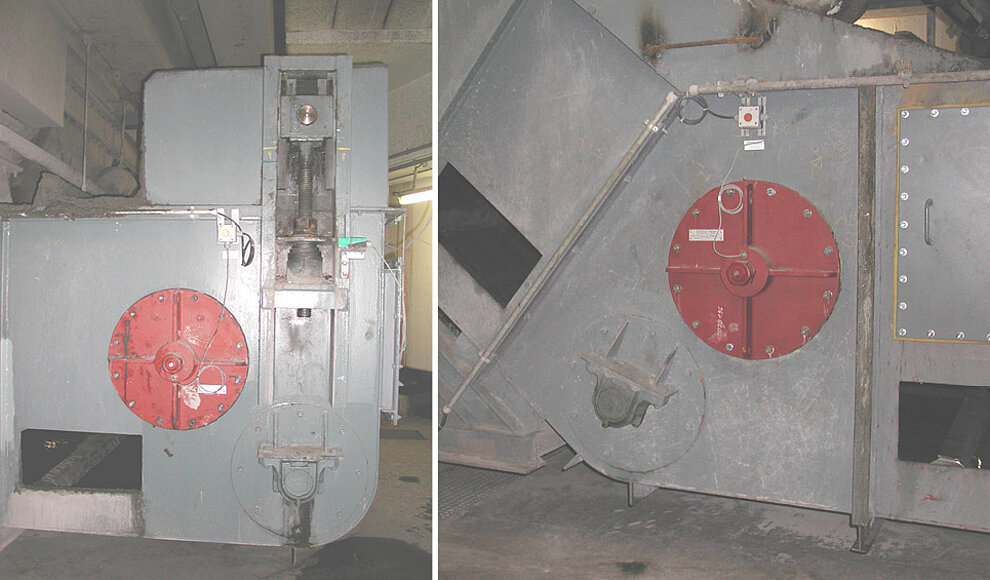

• Wet de-ashing systems, for example coal power station
• Deflection for chains

Advantages of the Unterwasserrollen submerged overhung idler (SOI)

• High-quality, robust and easy-running bearing technology
• Optimised bearing seal
• Ideal for wet de-ashing systems
• Suitable for modifying old systems
• design of the “flying” shaft bearing
• Easily accessible for maintenance works
• Deliverable in all reversing wheel dimensions

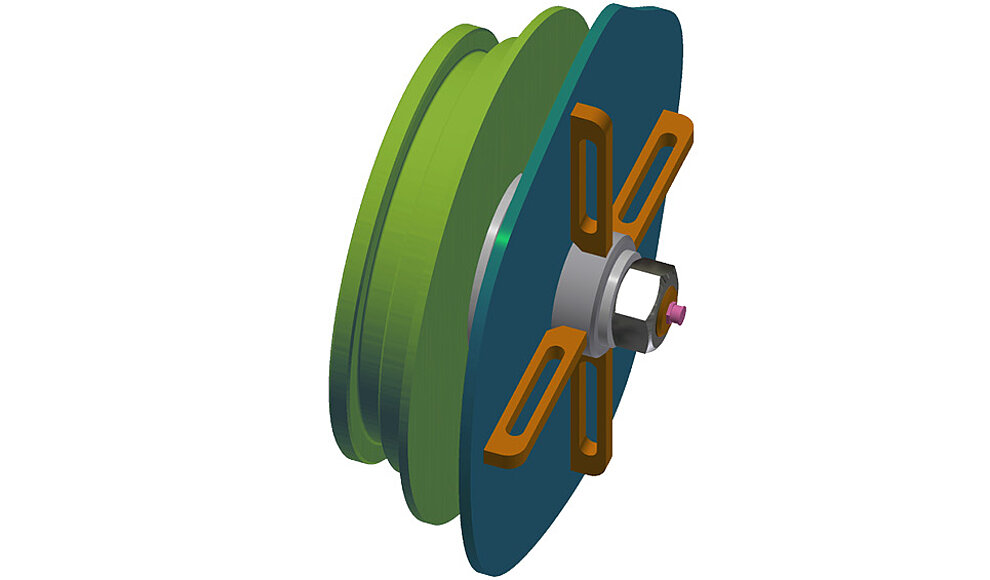

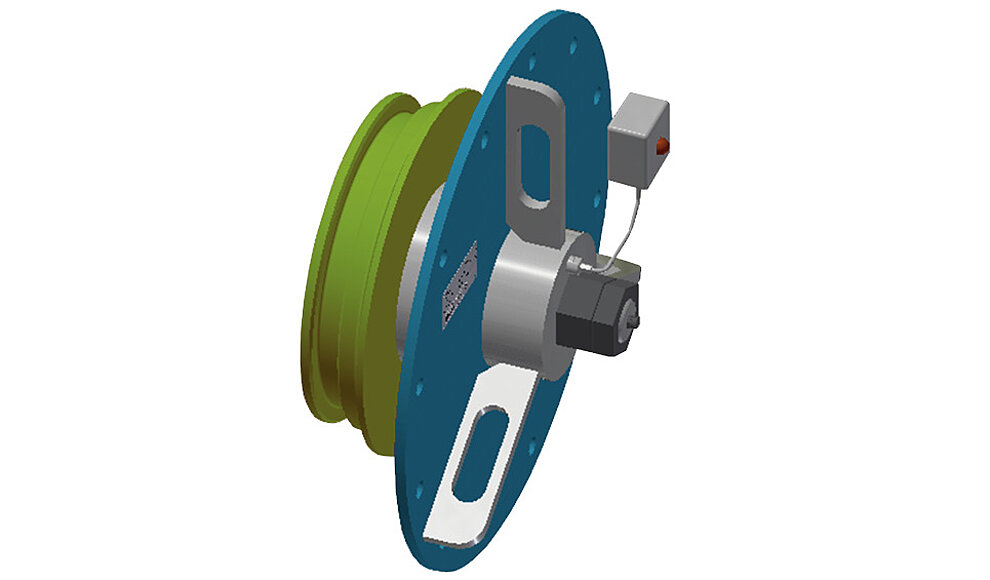

• Two design versions: with or without bearing shield in fixed casing hub
• Electronic circulation control optionally possible
• Assembly of outer wall at the trough

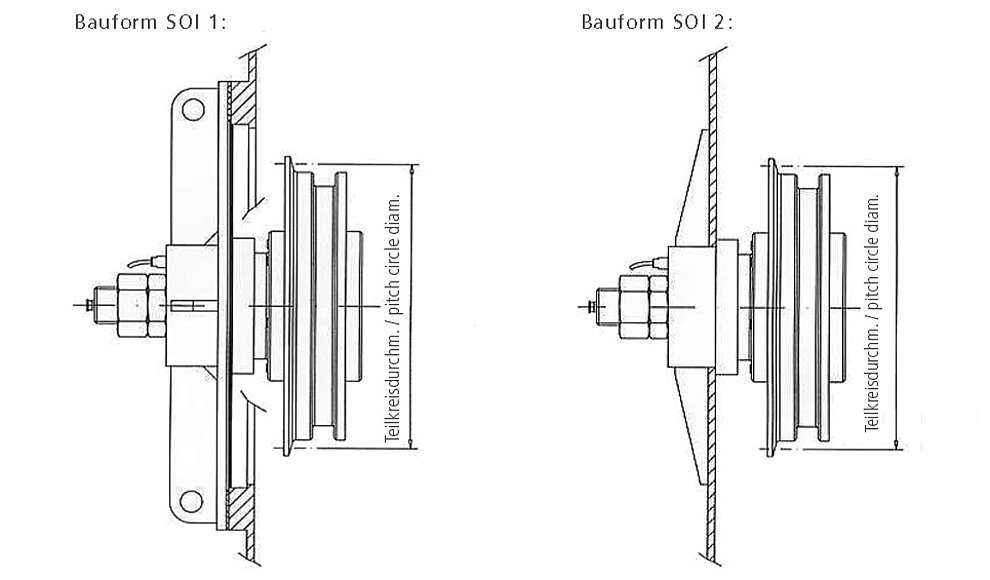

Product variants and technical data of submerged overhung idler SOI

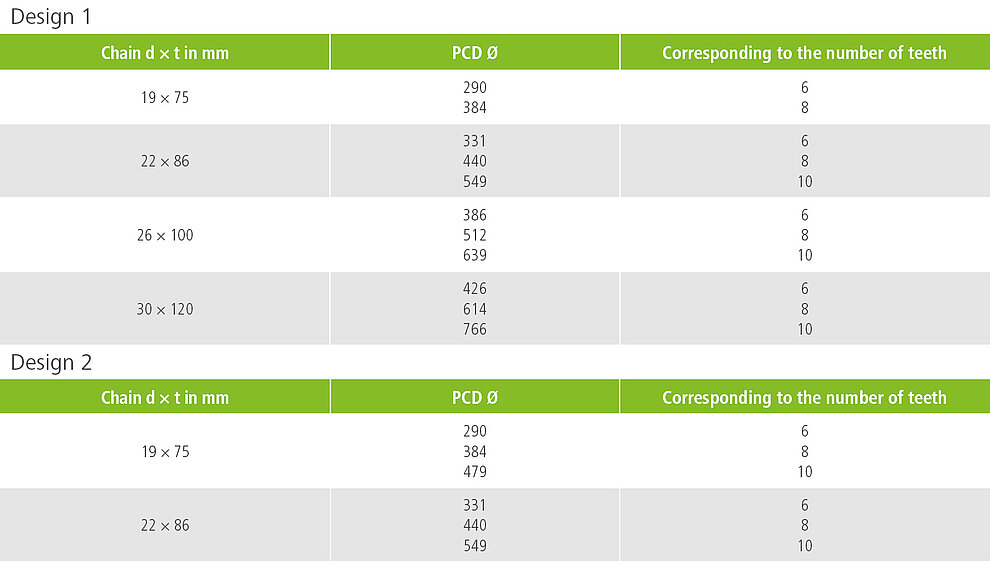

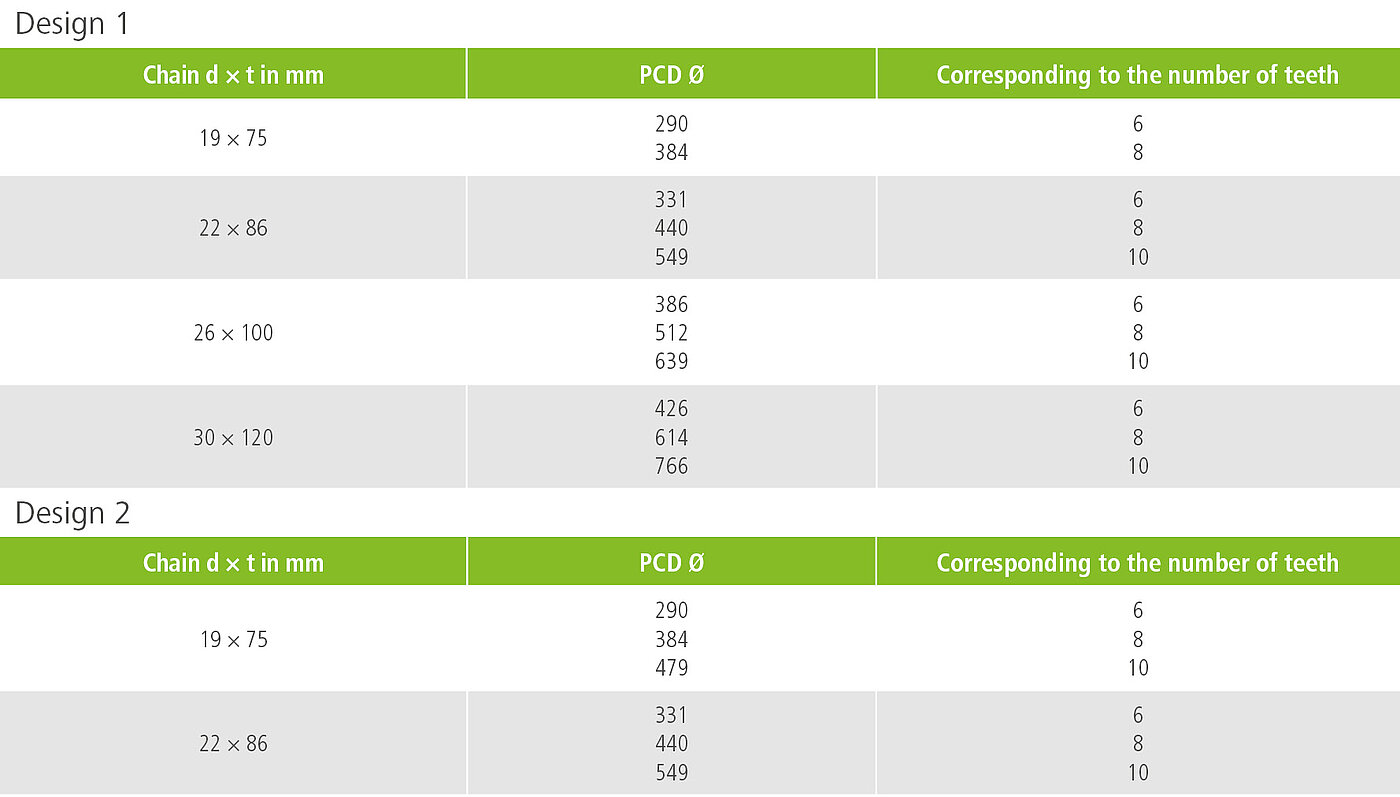

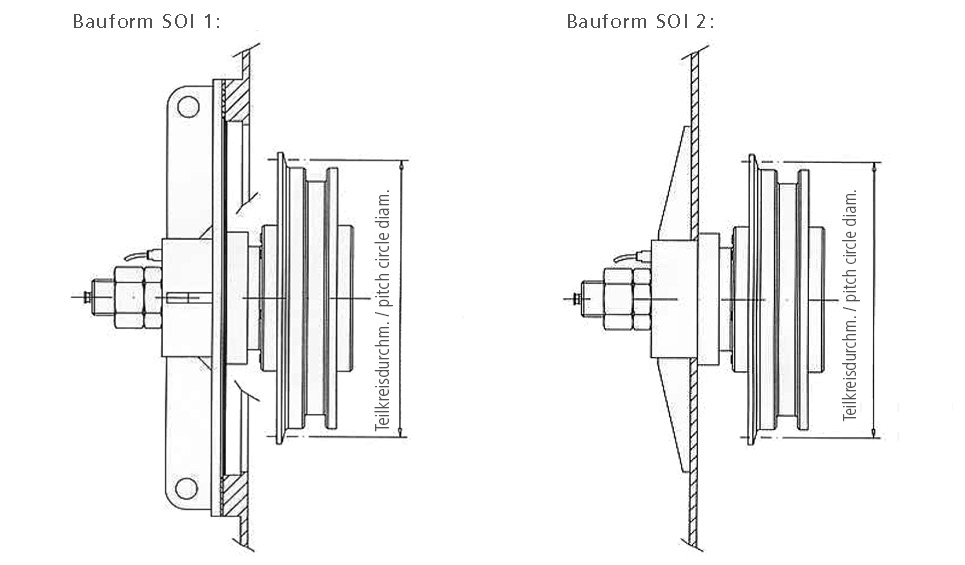

Technical data of RUD submerged overhung idler(SOI) design 1 and 2
