RUD conveyor technology - system SWA

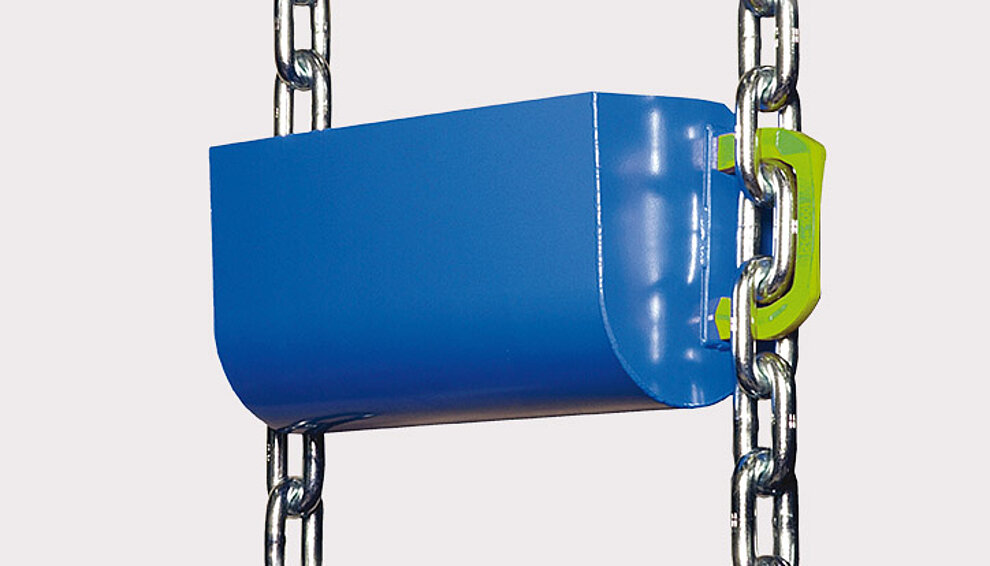

The SWA bucket side-wall attachment system serves as a two-link attachment for use in bucket elevators in the bulk materials industry with gravity discharge systems such as centre discharge bucket elevators and reclaim bucket elevators.







Application of System SWA

• For use in slow-running bucket elevators with:
    → gravity discharge,
    → Center discharge bucket elevators and
    → return bucket elevators
• Small conveyance capacities
• highly abrasive materials to be transported that are difficult to empty
• After replacing the chain, the bracket can be reused
• Endless chain strands can be used
• Easy installation at every point of the chain
•Two-link bucket attachment for a smooth run across the sprocket wheels

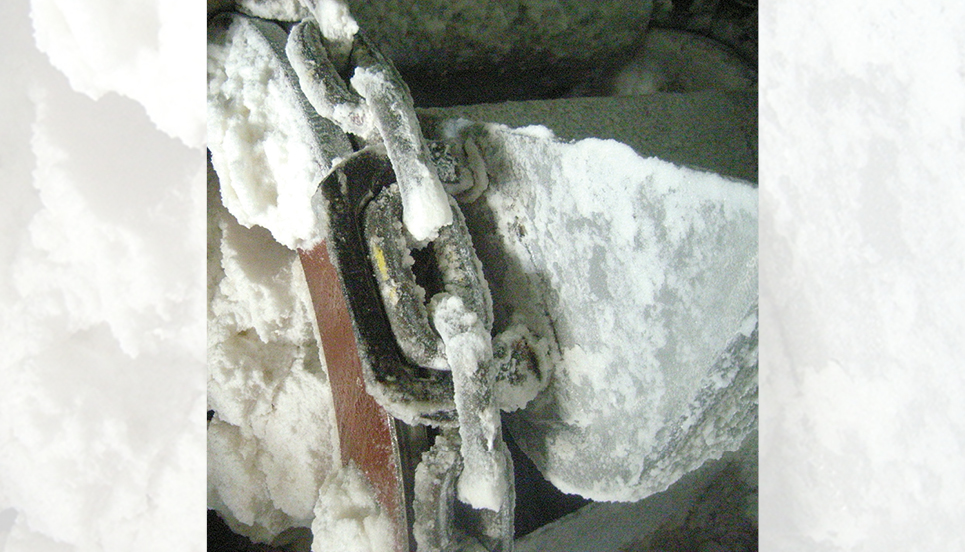

Einsatzbeispiel der Becherbefestigung System SWA

Advantages of Systems SWA

• For using in slow-running bucket elevators with gravity drain, central discharge bucket conveyors and return-feed bucket conveyors
• Endless chain strands can be used
• Easy assembly in case of variable bucket distance
• Two-link bucket attachment for a smooth run across the sprocket wheels

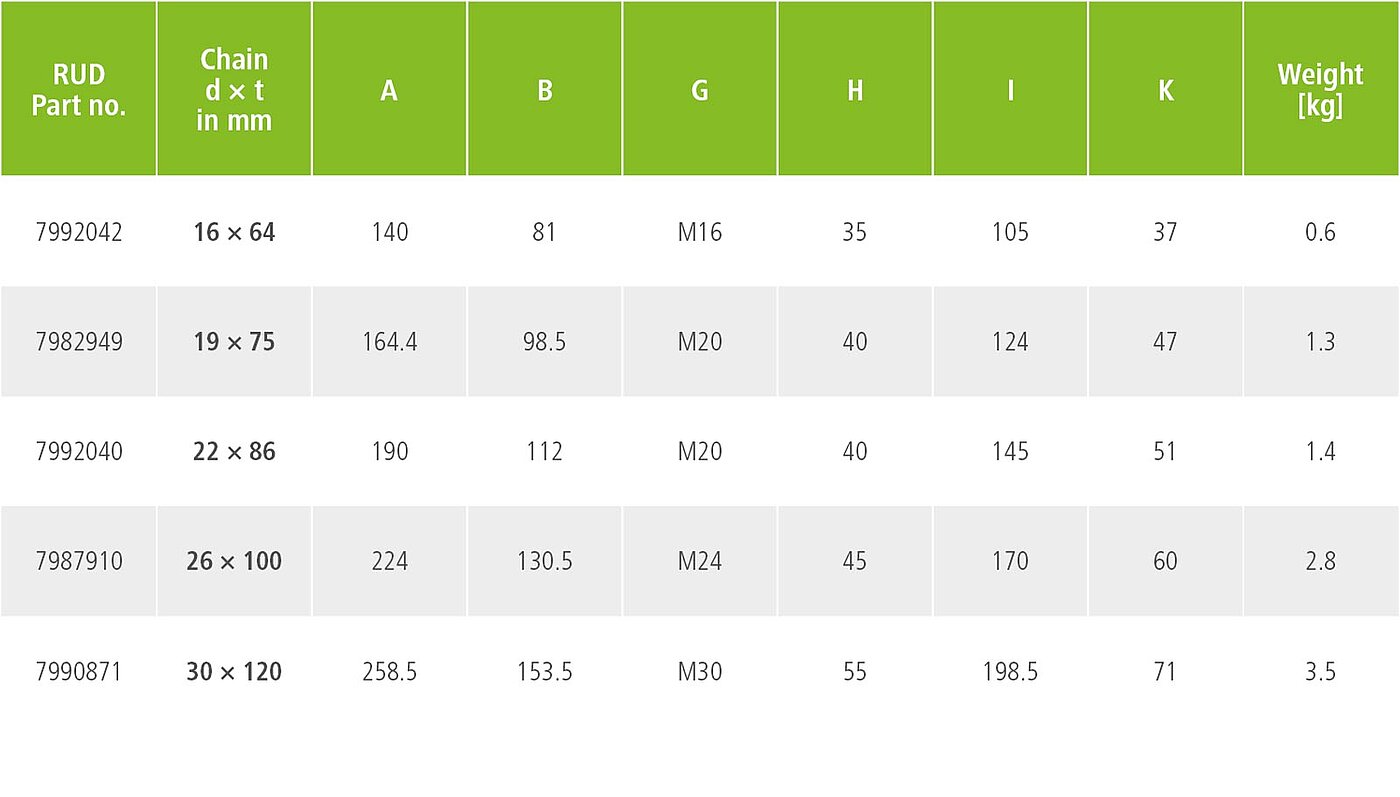

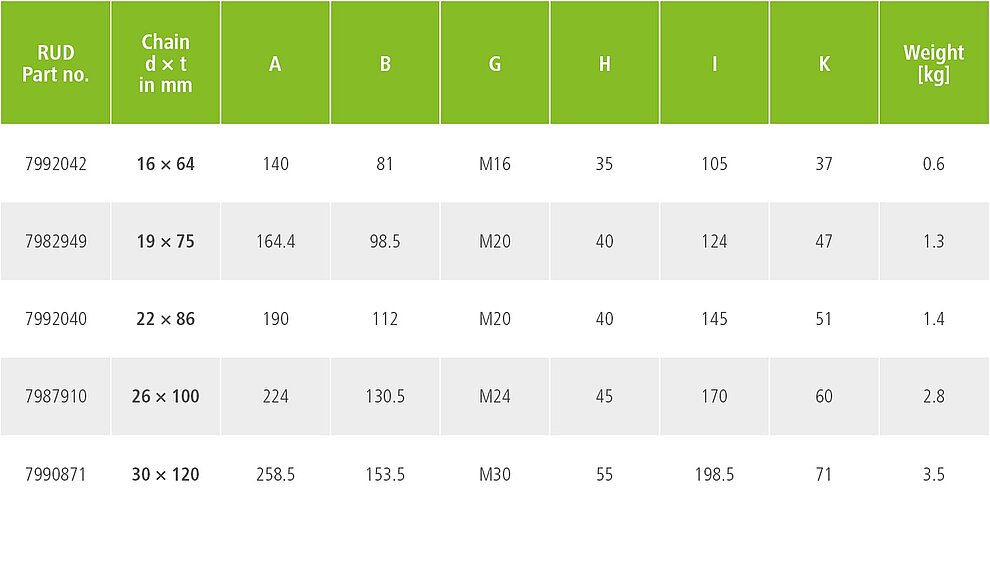

Product variants and technical data of the SWA system

Technische Zeichnung der Becherseitenwandbefestigung SWA

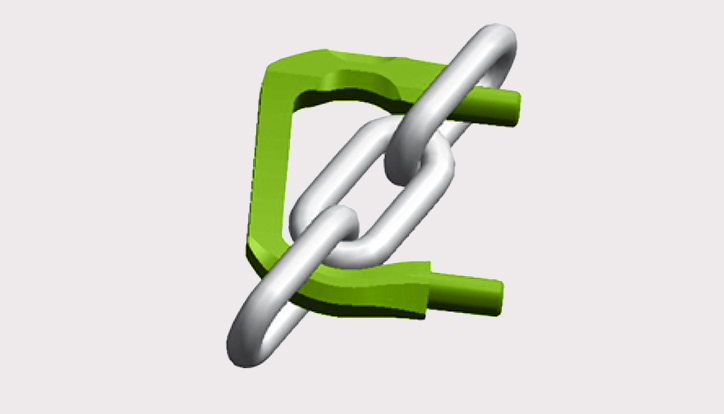

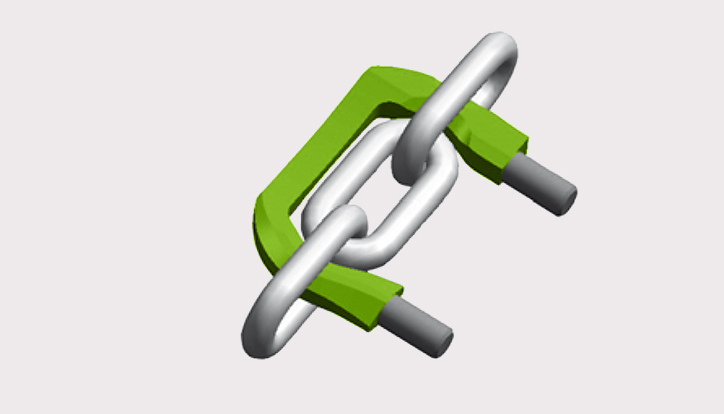

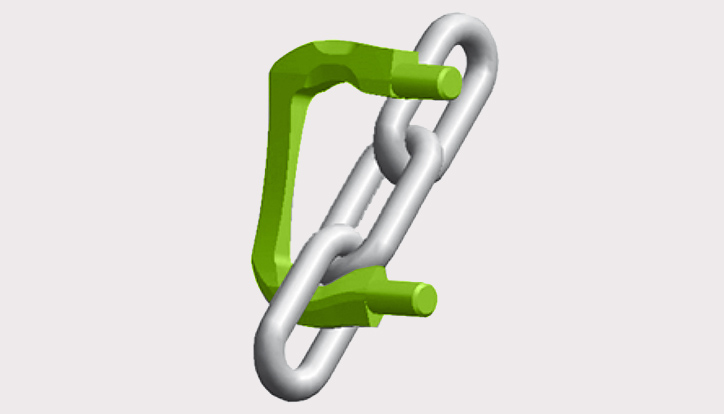

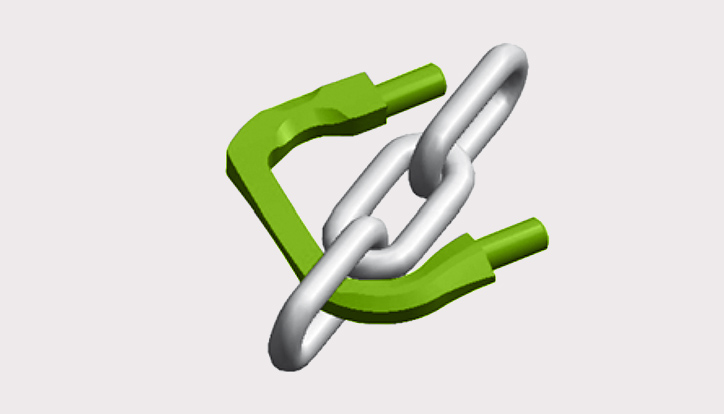

Assembly sequence: Side-wall attachments SWA
