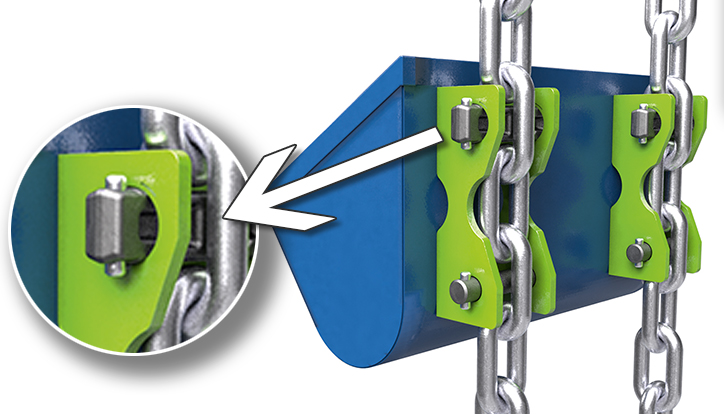

RUD conveyor technology - System 65

The improved System 65 - now with integrated wear mark for even more safety.

This system is particularly suitable for heavy operating conditions in the field of bucket elevators. Robust and highly wear-resistant, the System 65 optimizes your processes with easy assembly and disassembly of buckets on the chains.

Advantage:
A repeat order for individual parts such as flat steels and plug-in attachments can also be placed separately.

System 65 - Fields of application

• For heavy operating conditions in the bucket elevator area
• For sticky, coarse-grained bulk materials
• When using heavy-duty buckets and speeds of 1.35 ... 1.5 m / s

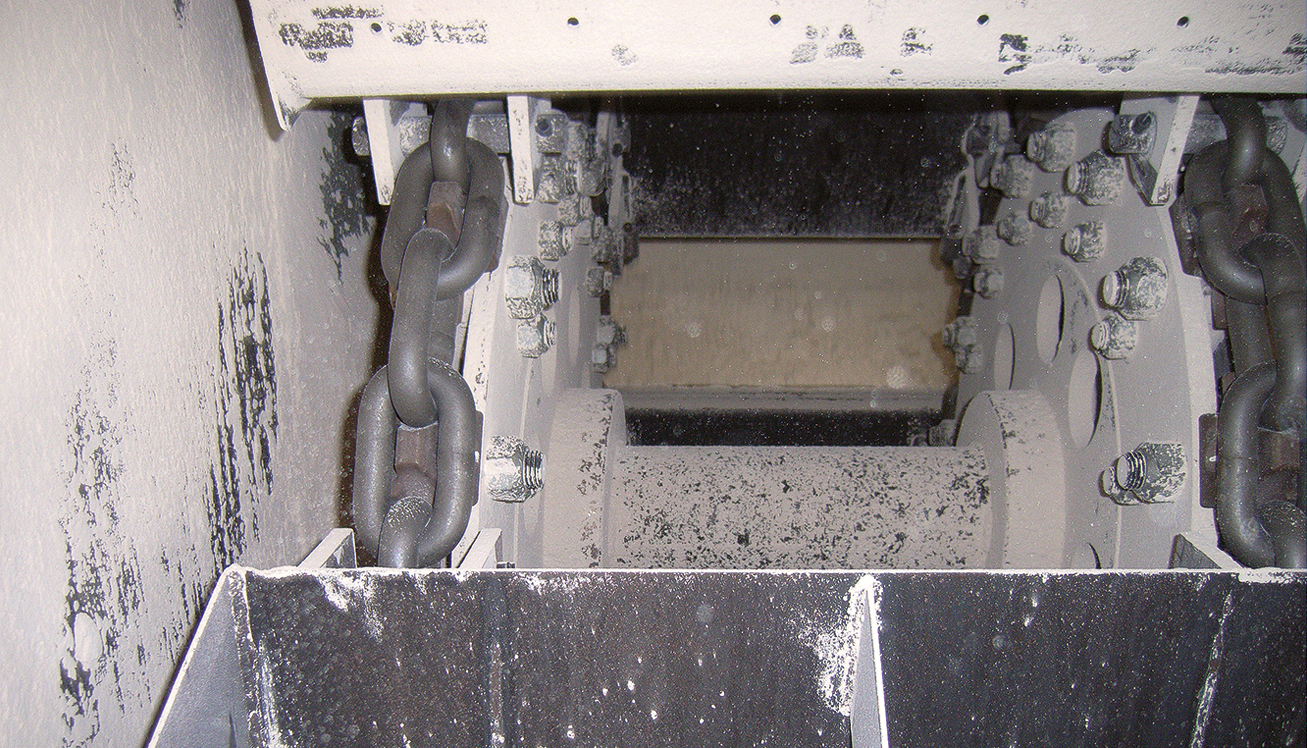

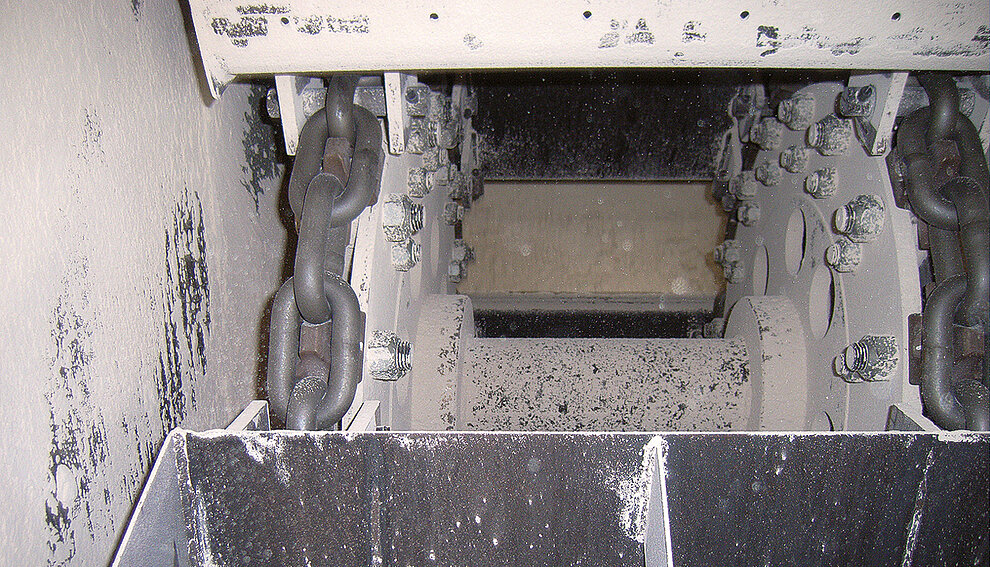

Anwendung der Becherbefestigung System 65

Advantages of systems 65

• For heavy operating conditions in the bucket elevator area
• Robust and highly wear-resistant
• Easy assembly and disassembly of buckets on the chain

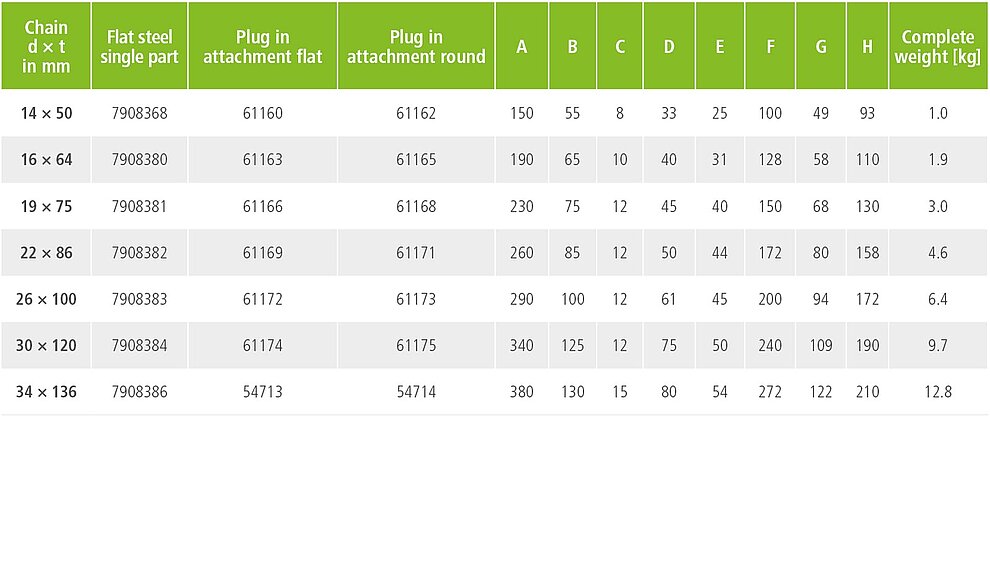

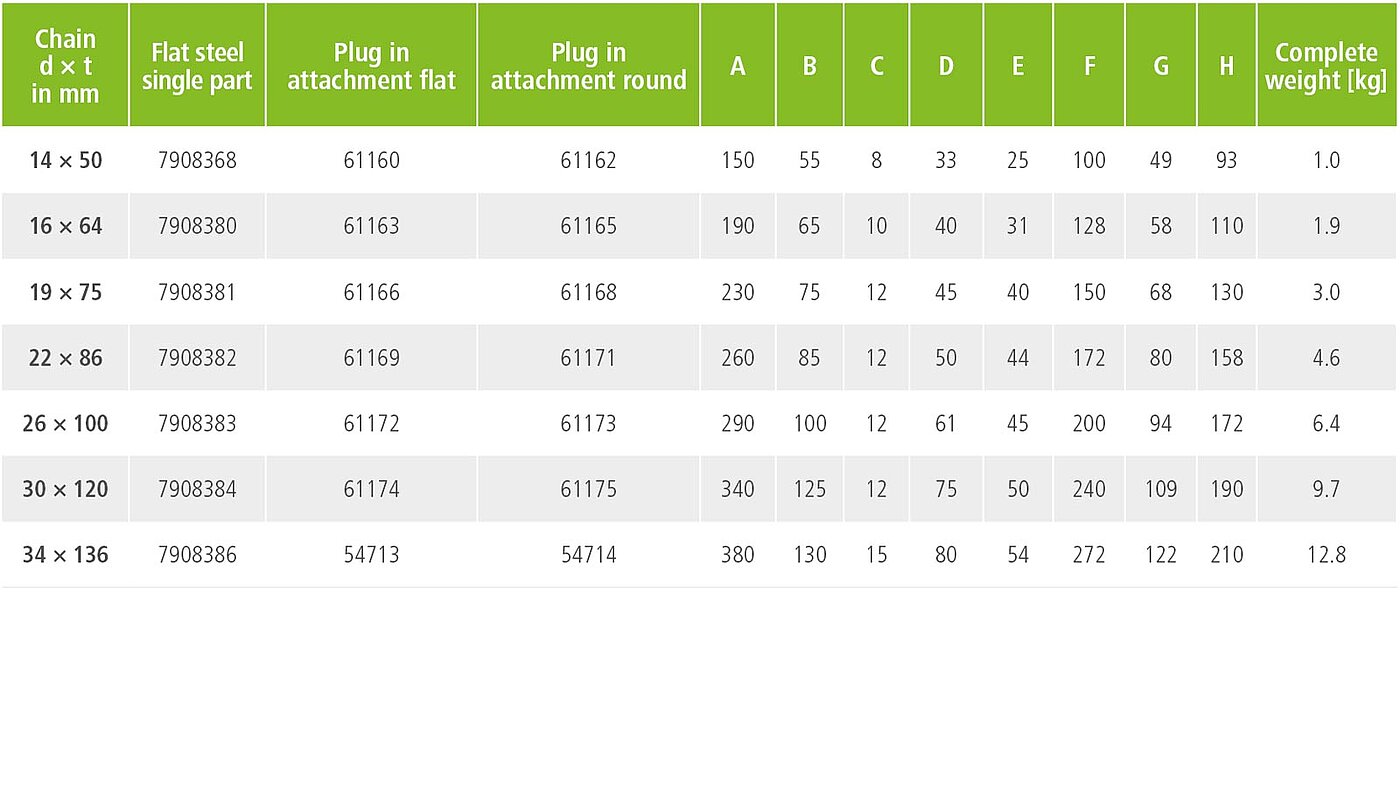

Product variants and technical data of the System 65

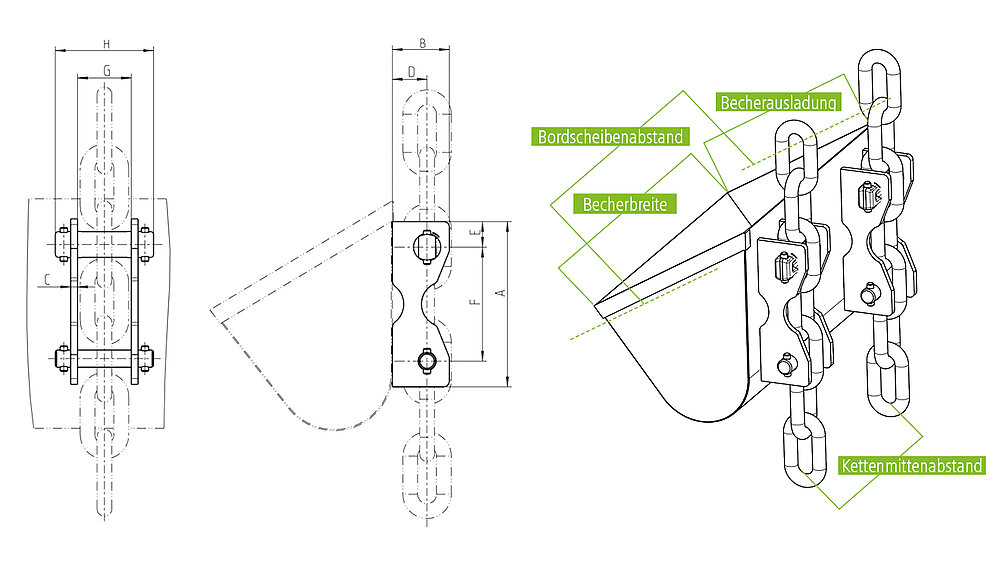

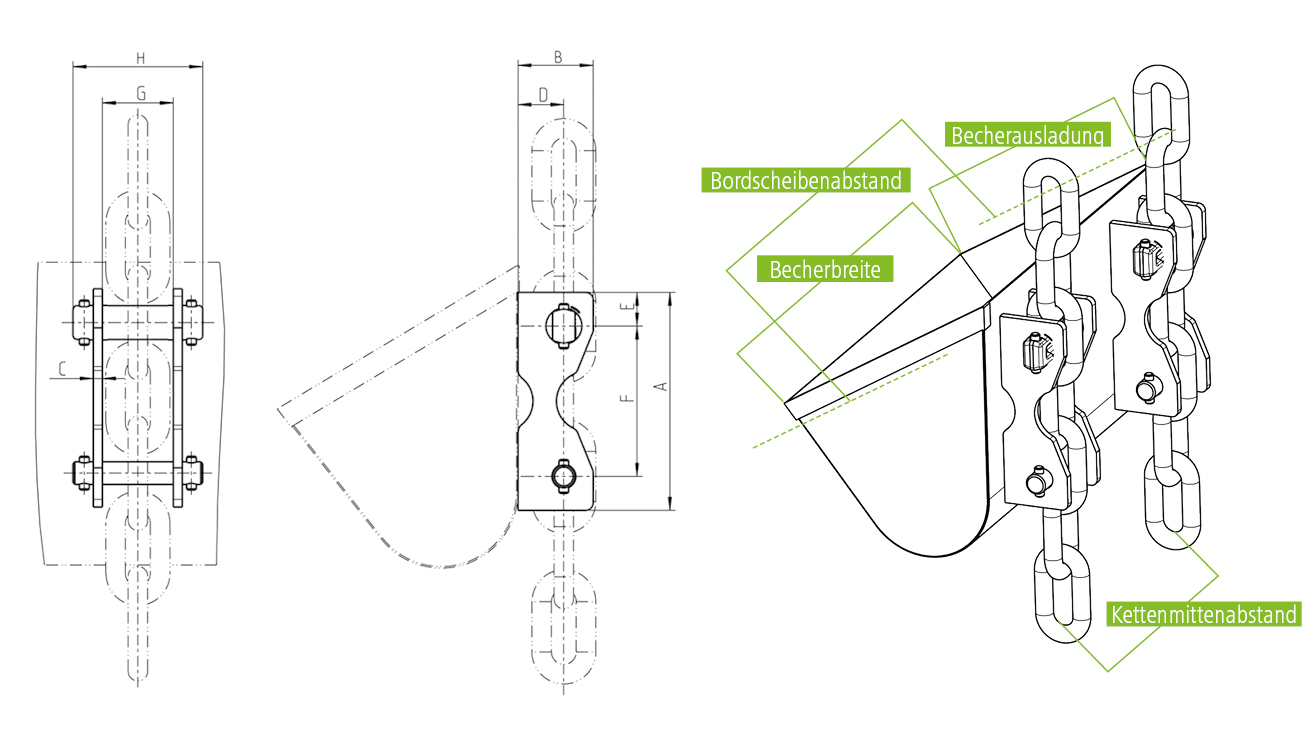

Technische Zeichnung der Becherbefestigung System 65
