RUD TECDOS drive technology PI-GAMMA

2-in-1 complete system. The new generation of drive technology.

Drive technology for horizontal, ascending & vertical applications

The PI-GAMMA 2-in-1 complete system is ideally suited for horizontal, ascending and vertical tasks, with its fixed 180 degree deflection (with insert), or its flexible deflection of between 90 and 180 degrees (without insert). Its versatility makes this drive system more efficient.

Versatile, reliable drive systems

Depending on the task, the versatile, quiet-running PI-GAMMA pocket wheel block is attached to the load to be moved, which it then pulls along the round steel chain or moves from a different location. Unlike chain drives, this drive system is completely unaffected by movements in the surface underneath it or the load itself due to thermal expansion and contraction, or any kind of twist.  The TECDOS round steel chain, designed for drive technology, fully compensates for these types of discrepancies.

Application areas of PI-GAMMA pocketwheel block

Drive technology for all kinds of applications

Typical uses for RUD drive technology:
• locks on blast furnaces or
• large industrial gates
• structural elements used in the entertainment industry/stage equipment in concert halls and musical theatres.

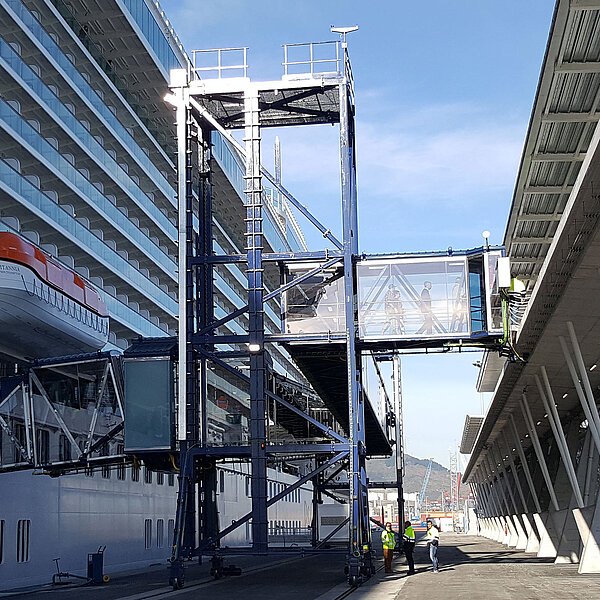

• gangways in port facilities
All of these involve elements that are moved reliably and quietly by PI-GAMMA drive systems (drive technology) over a long service life.

Advantages of PI-GAMMA drive

PI-GAMMA drive solutions. More than Products. Solutions.

• 2-in-1-solution | 10% lighter | narrower
• The TECDOS drive unit with insert enables a 180° redirection
• When the insert is removed, the drive unit enables a redirection between 90° and 180°
• Lift at several points
   ►The synchronization of the different lifting points is possible
• Durable, reliable and safe
• Flexible complete solutions for all requirements
• Easy installation of the drive and chain systems.
   ►Even with longer applications. No stable mounting base needed
• Small sizes & heavy loads | quiet running | also in black
• Competent on-site service
• galvanized surface (doesn´t apply to the entertainment area)

Product variants and technical data of PI-GAMMA drive
