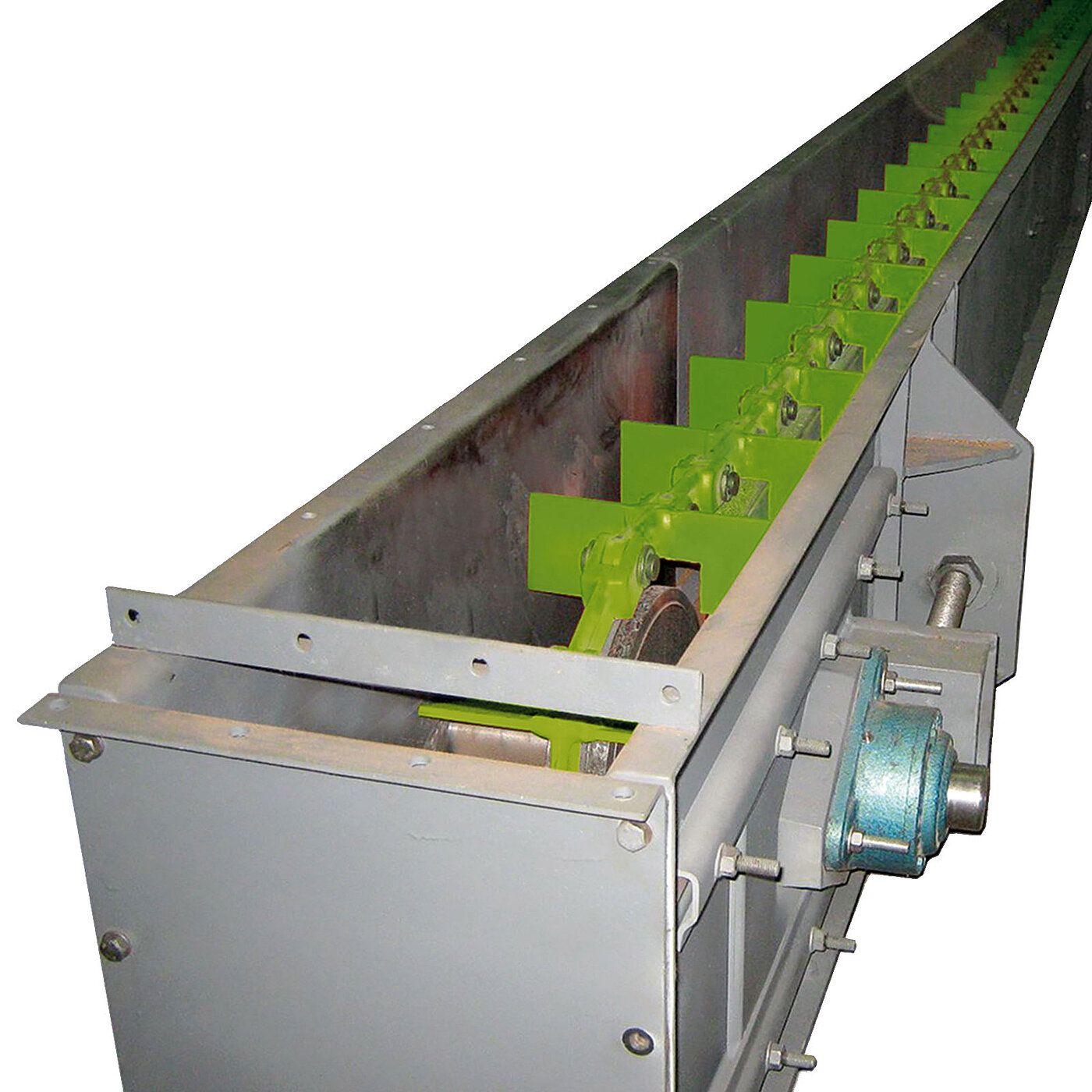

RUD conveyor technology - Trough chain conveyor

Trough chain conveyors are especially suitable for the dust-free, horizontal and moderately inclined transport and metering of bulk materials, including coarser type material. Trough chain conveyors combine high wear and heat resistance with the option of multiple inlets and outlets. We also supply a special version with cleaning scrapers.

ough chain conveyors can be equipped with round steel chains or forked link chain FORKY depending on the application.

The drive station has flange or pedestal bearings for the drive shaft, depending on the size. Sealing is provided by grease filled, double radial shaft seals. The entire drive station together with the inspection door can be dismounted for easy maintenance.

The drive consists of a standard geared motor unit mounted on the bracket attached to the side. Suitable safety clutches can be provided to prevent overloads.

Applications of trough chain conveyor

• suitable for the dust-free, horizontal and moderately inclined transport
• metering of bulk materials, including coarser type material
• at higher temperatures At higher temperatures
• we also supply a special version with cleaning scrapers

Advantages: trough chain conveyor

• high wear and heat resistance
• option of multiple inlets and outlets

Product variants and technical data of the trough chain conveyor

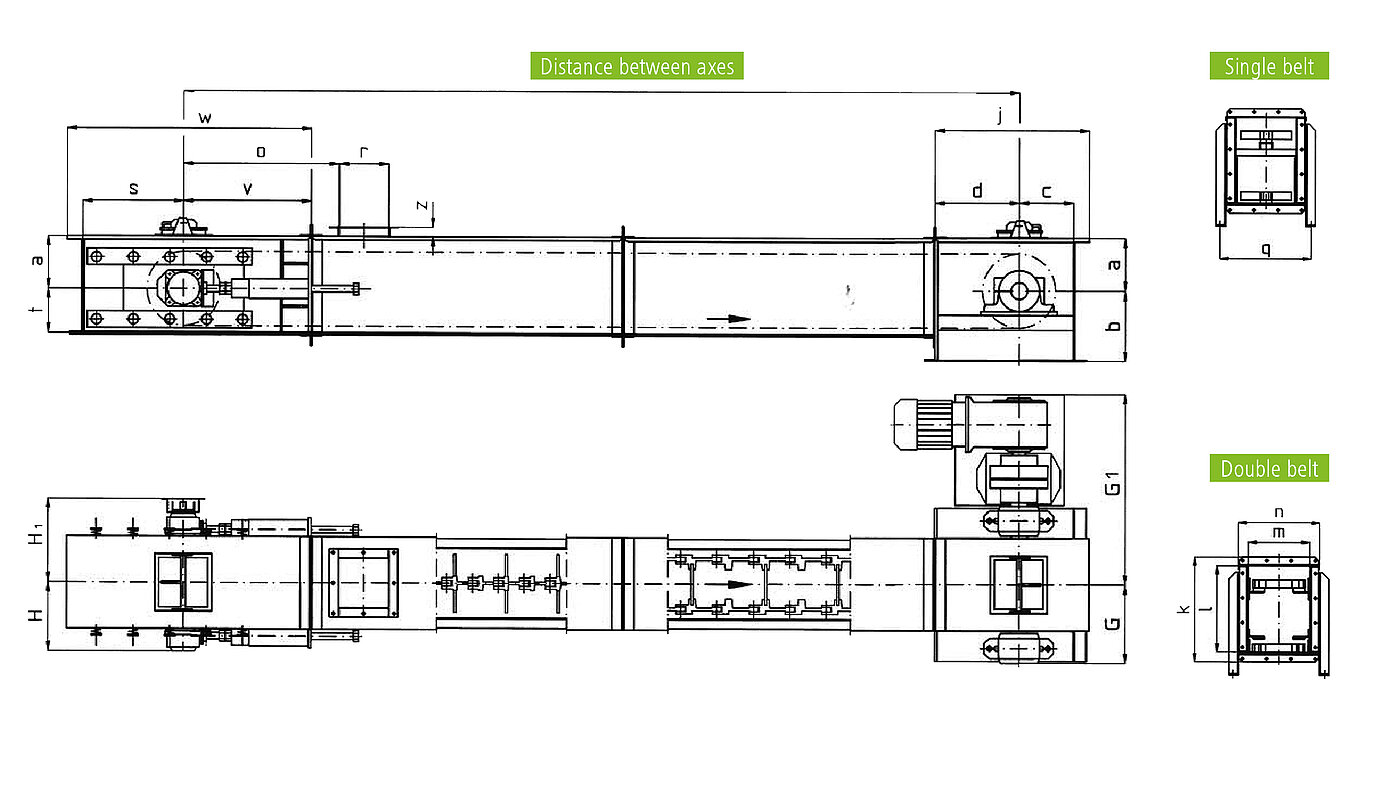

Technical drawing for trough chain conveyor

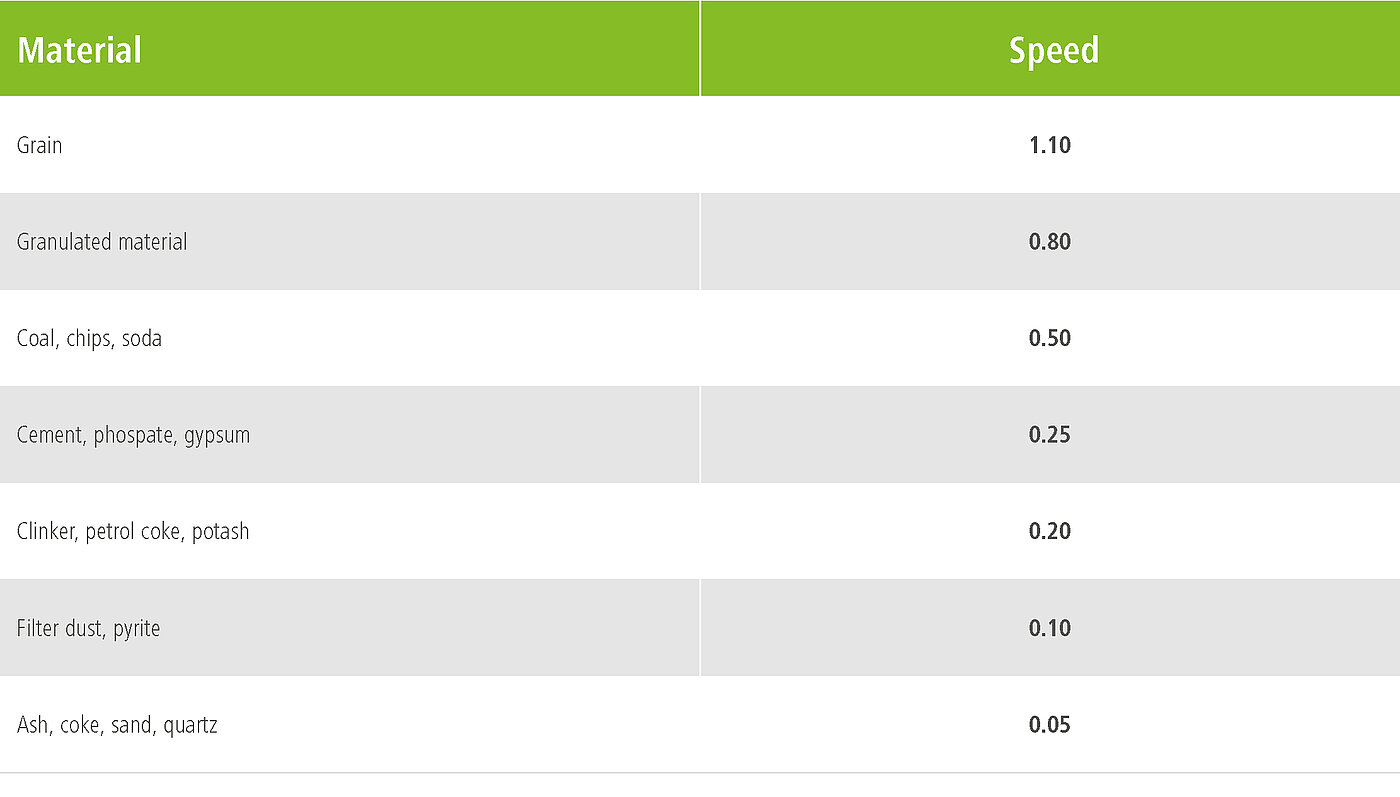

RUD trough chain conveyor conveying speeds [m/s]

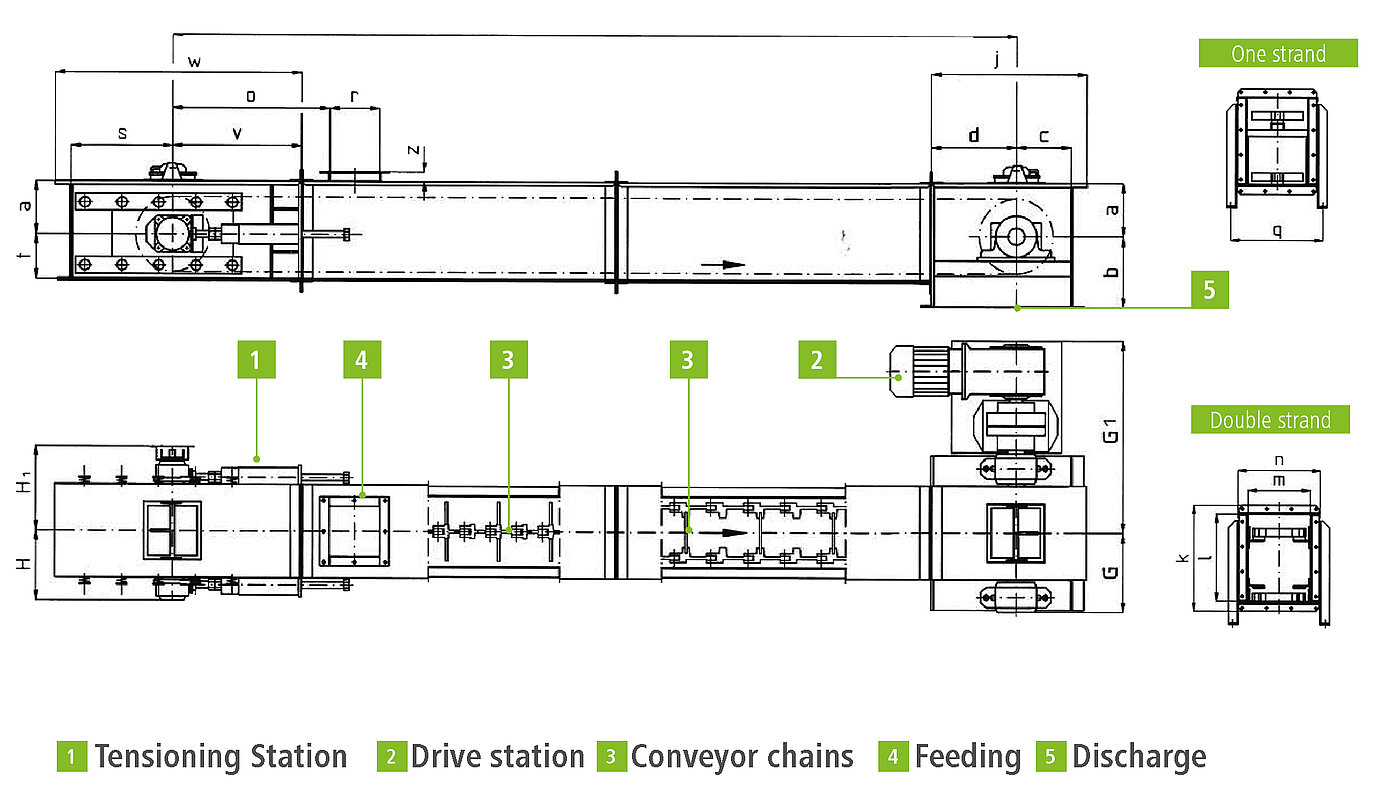

Technical drawing for trough chain conveyor with RUD fork link chain FORKY
