Spiral Gabion

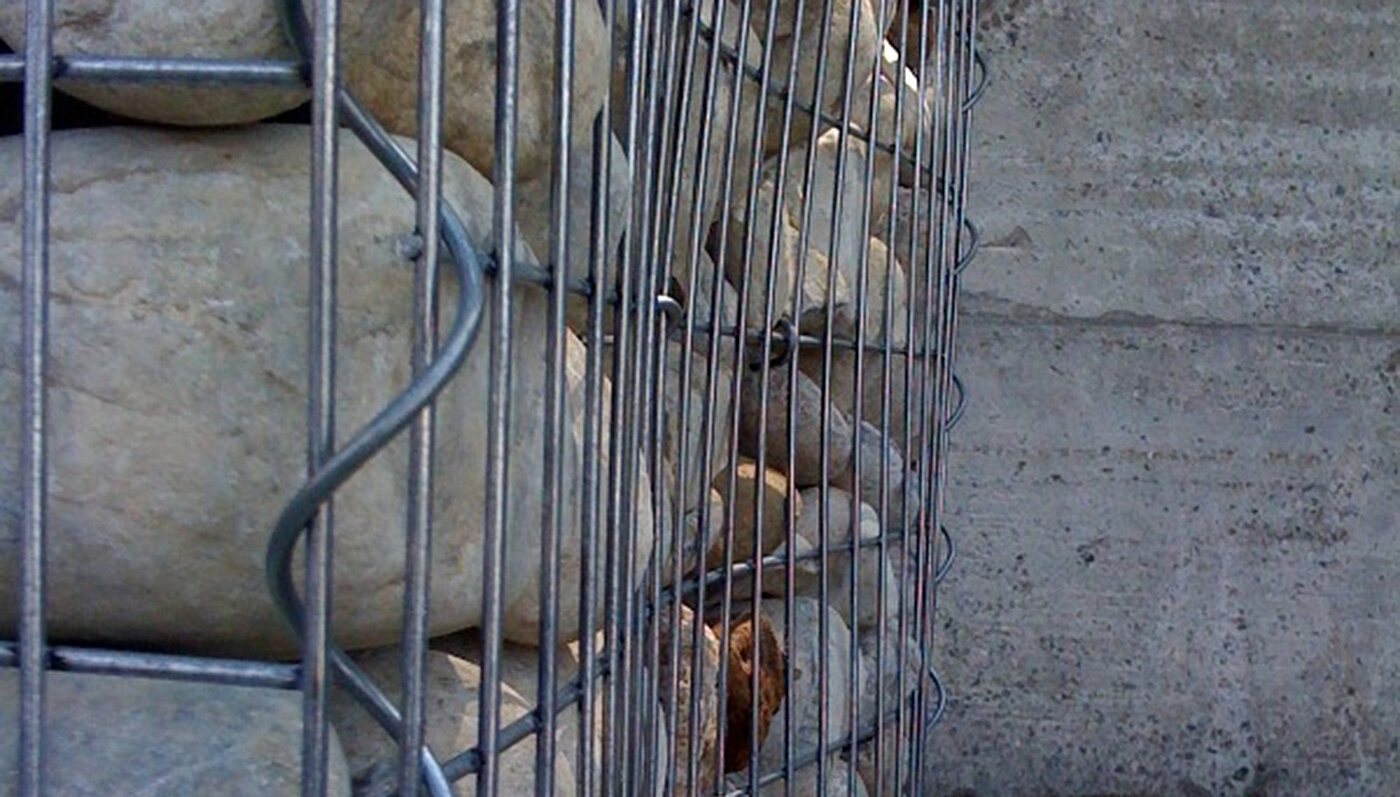

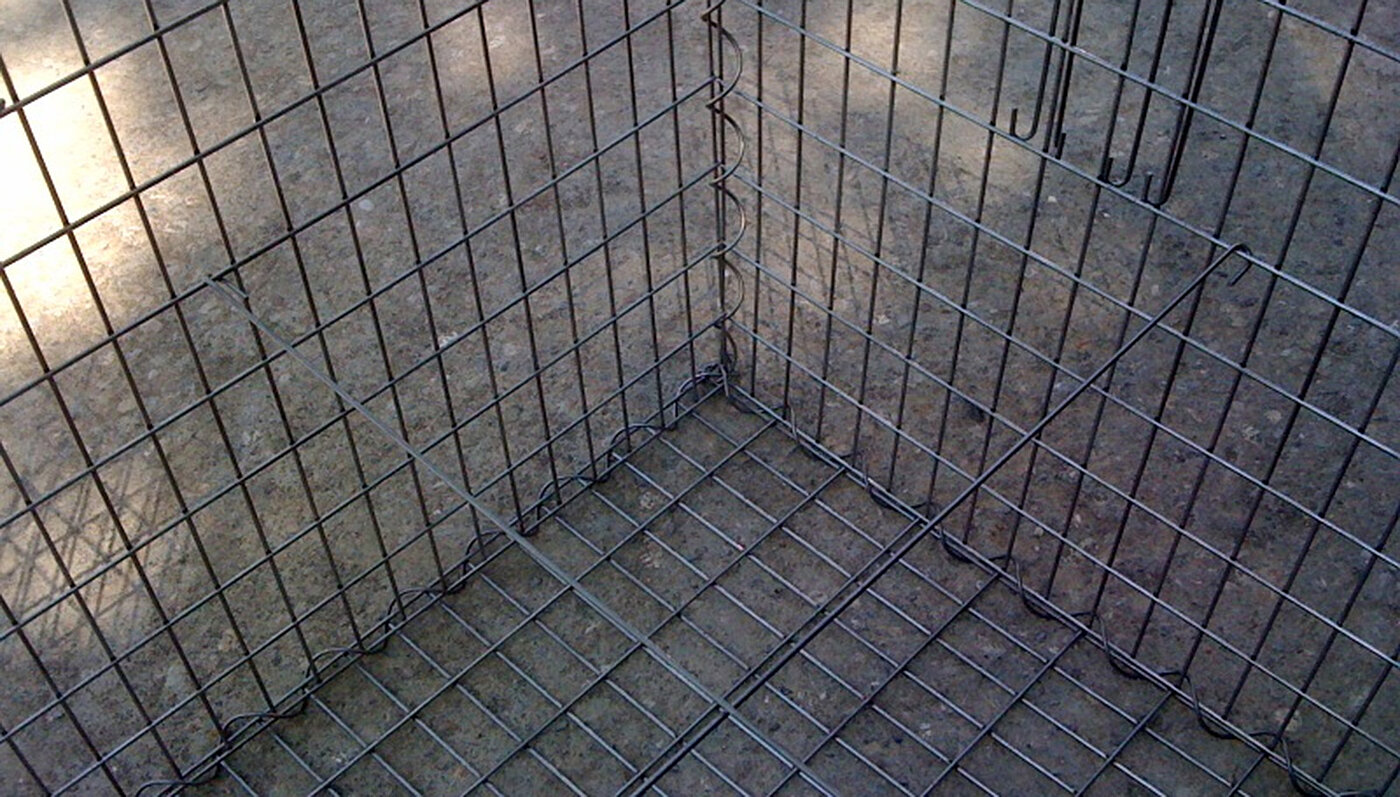

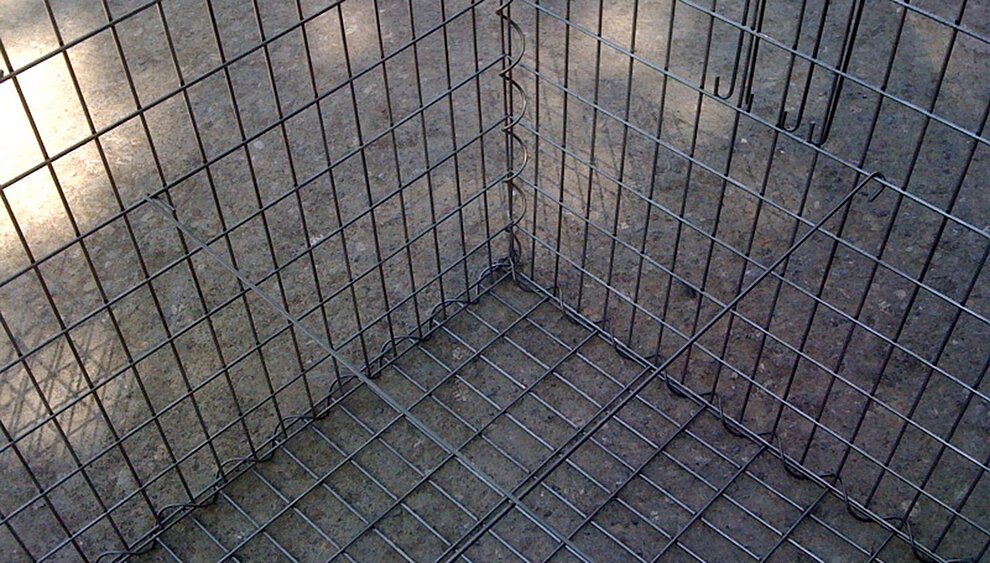

Spiral Gabion The wire mesh mats are connected with spirals and the complete basket is stabilized with spacers.

Technical Data

  • electrically spot welded wire mesh mats with ZnAl coated wire (Zn95%, Al5%) with 3,000 hours salt spray test according to DIN EN ISO 9227:2006-10 and a minimum coat thickness 350 g/mm² according to EN 10244-2
  • standard wire-Ø 4.5 and 5.0 mm - other wire sizes on request
  • spirals with 100 mm and wire Ø 4.5 mm
  • spacer with wire Ø 5.0 mm
