RUD belt type bucket elevators

Belt type bucket elevator designs using textile or steel reinforced belts transport materials dust-free without difficulty, even to great heights and are especially suitable for the continuous vertical conveyance of free flowing bulk materials. Suitable adaptations are made to handle coarse-grained or higher temperature materials.

Areas of application of the belt bucket elevators

• If great heigths have to be overcome
• For the continuous vertical conveying of ladled bulk goods
• For transporting coarse-grained or temperature-sensitive goods

Anwendungbeispiel eines RUD Gurtbecherwerks bzw. Elevators / Becherwerks.

Advantages of belt type bucket elevator

RUD belt bucket elevators offer advantages in the following applications when:
• large centre distances are required
• higher conveying capacity is needed,
• smooth running of the traction mechanism is required
• very abrasive materials are conveyed (quartz, sand, corundum)
• use in explosion protection areas is required

Other advantages:
• Bucket elevator housings are self-supporting
• Belt bucket conveyors carry items smoothly and without generating dust even at greater conveying heights
• almost noiseless running

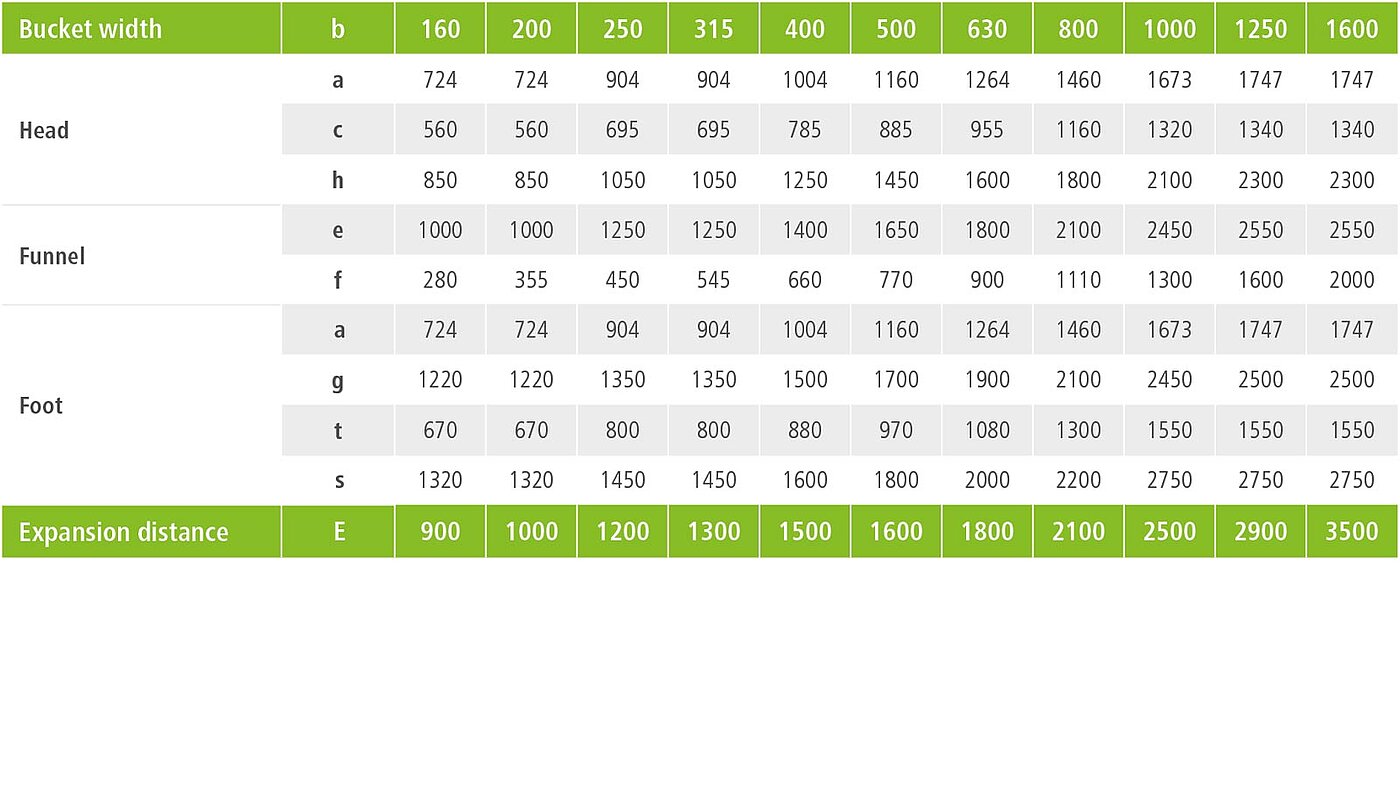

Product variants and technical data of belt type bucket elevators
