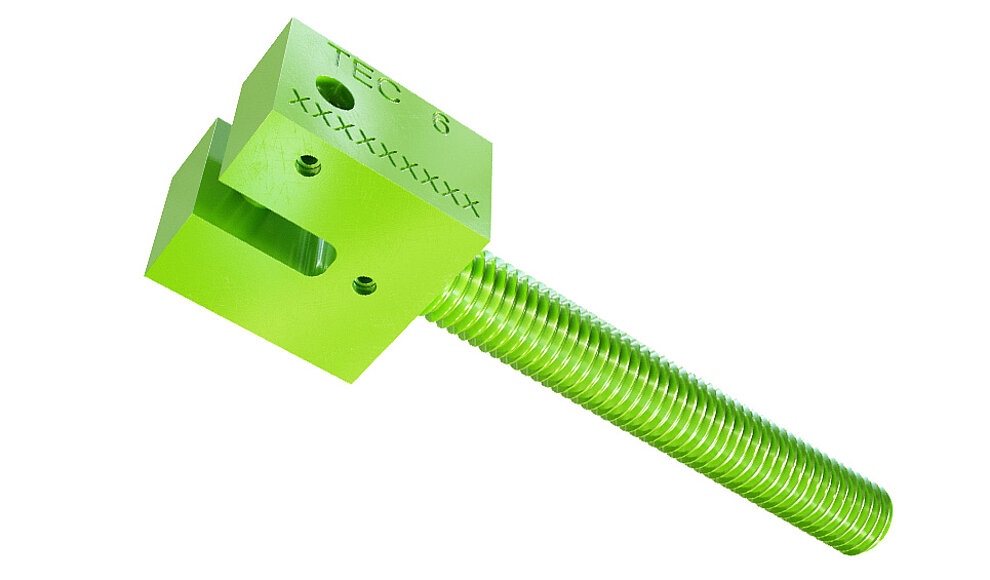

RUD TECDOS chain end fixing

The chain end fixing for connecting chains to supporting structures in the field of drive technology, transfers 100% of the TECDOS chain operating forces. Thanks to its adjustable axis, it ensures maximum flexibility during use.

Application areas of the chain end fixing

• Gangways
• Hubeinrichtung für die Fahrzeugendmontage
• Bandschleifenwagen/ Abwurfwagen
• Rail Wagon Unloading System
• Skidding

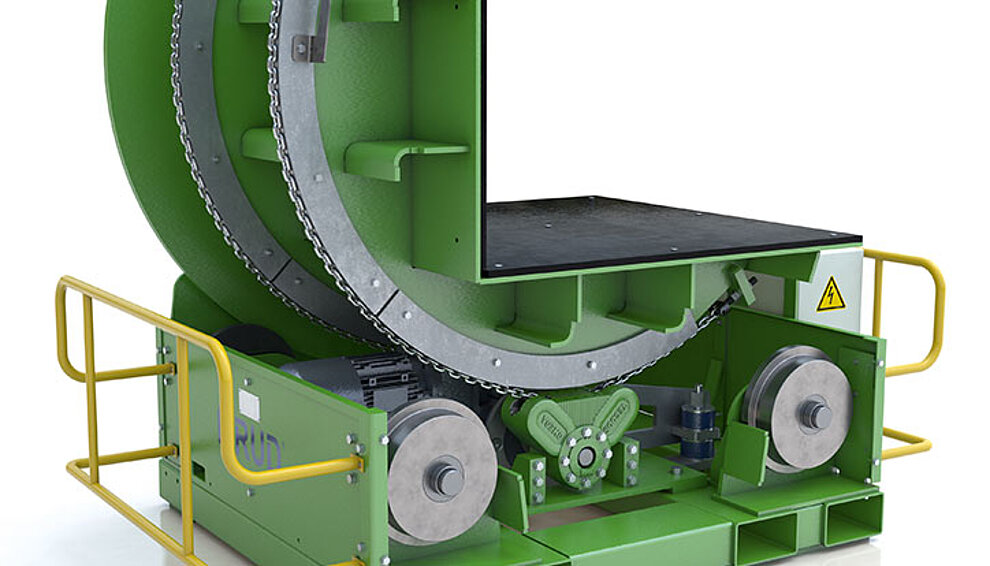

• TOOL MOVER PRO

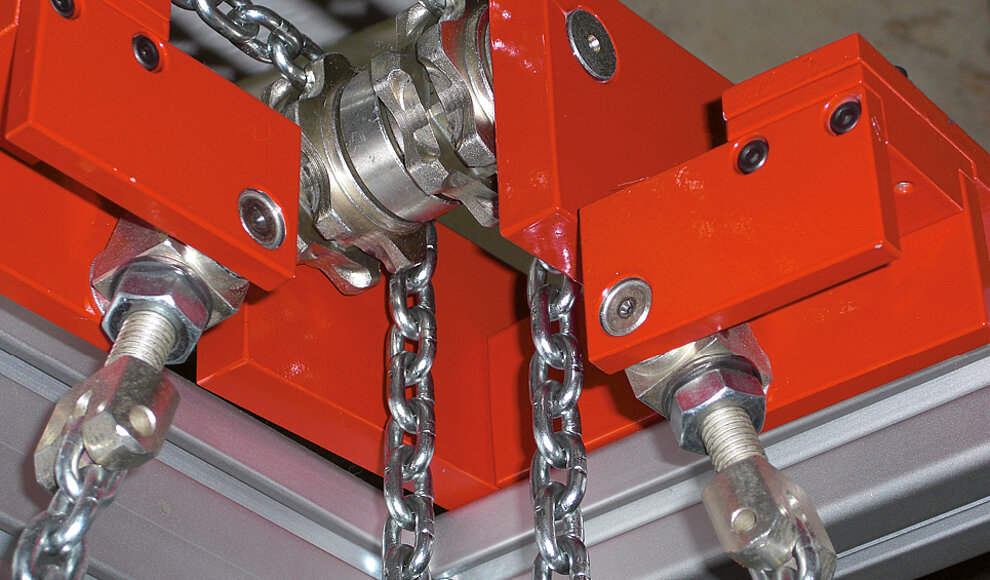

Application of the chain end fixing for TECDOS applications: Skidding Reliable solution for moving loads from one point to another

Advantages of TECDOS end fixing

Features - TECDOS End fixing:
• Transfers 100 % of the TECDOS chain operating forces
• axially adjustable

Product variants and technical data of TECDOS end fixing

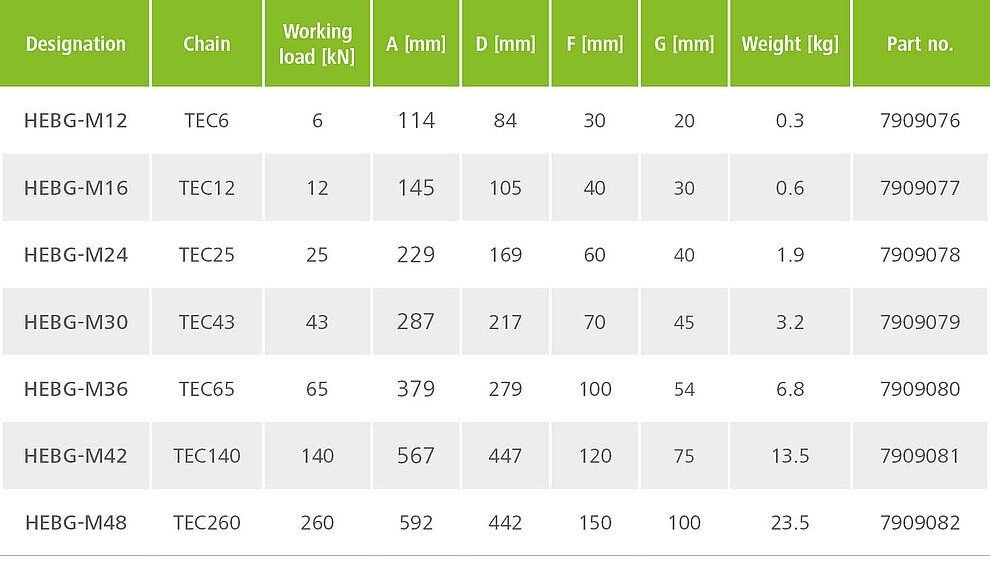

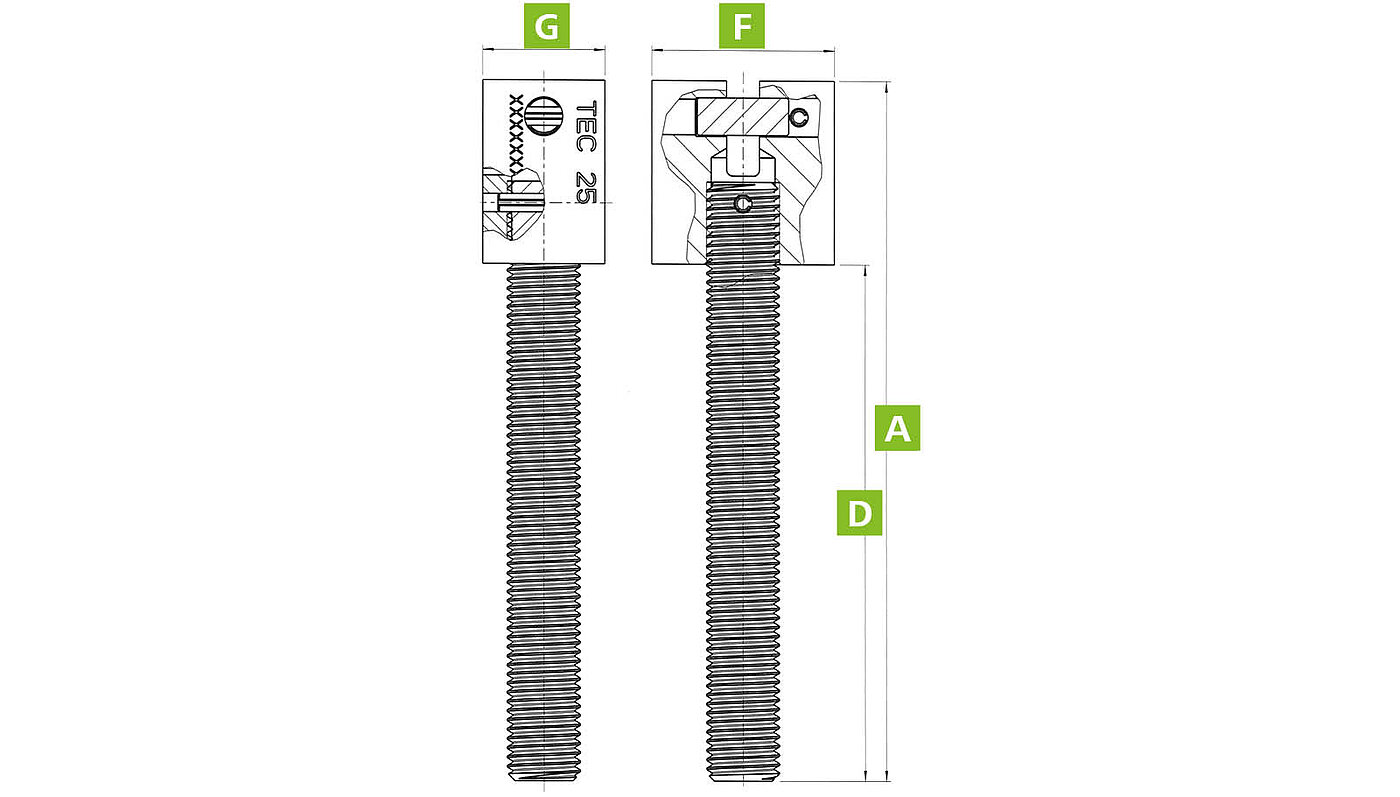

Technical chart TECDOS chain end fixing
Technical chart TECDOS chain end fixing

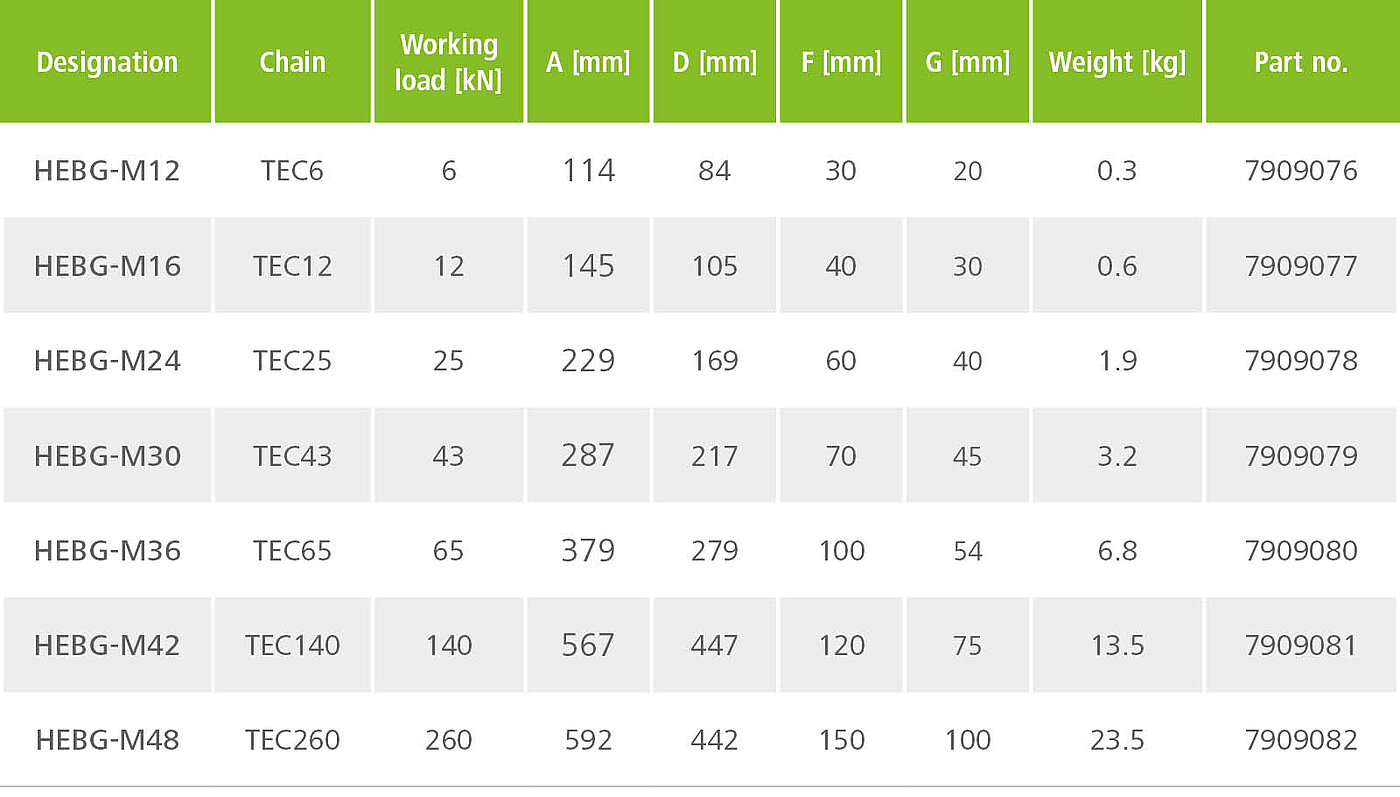

RUD TECDOS chain end fixing | technical chart
RUD TECDOS chain end fixing | technical chart
