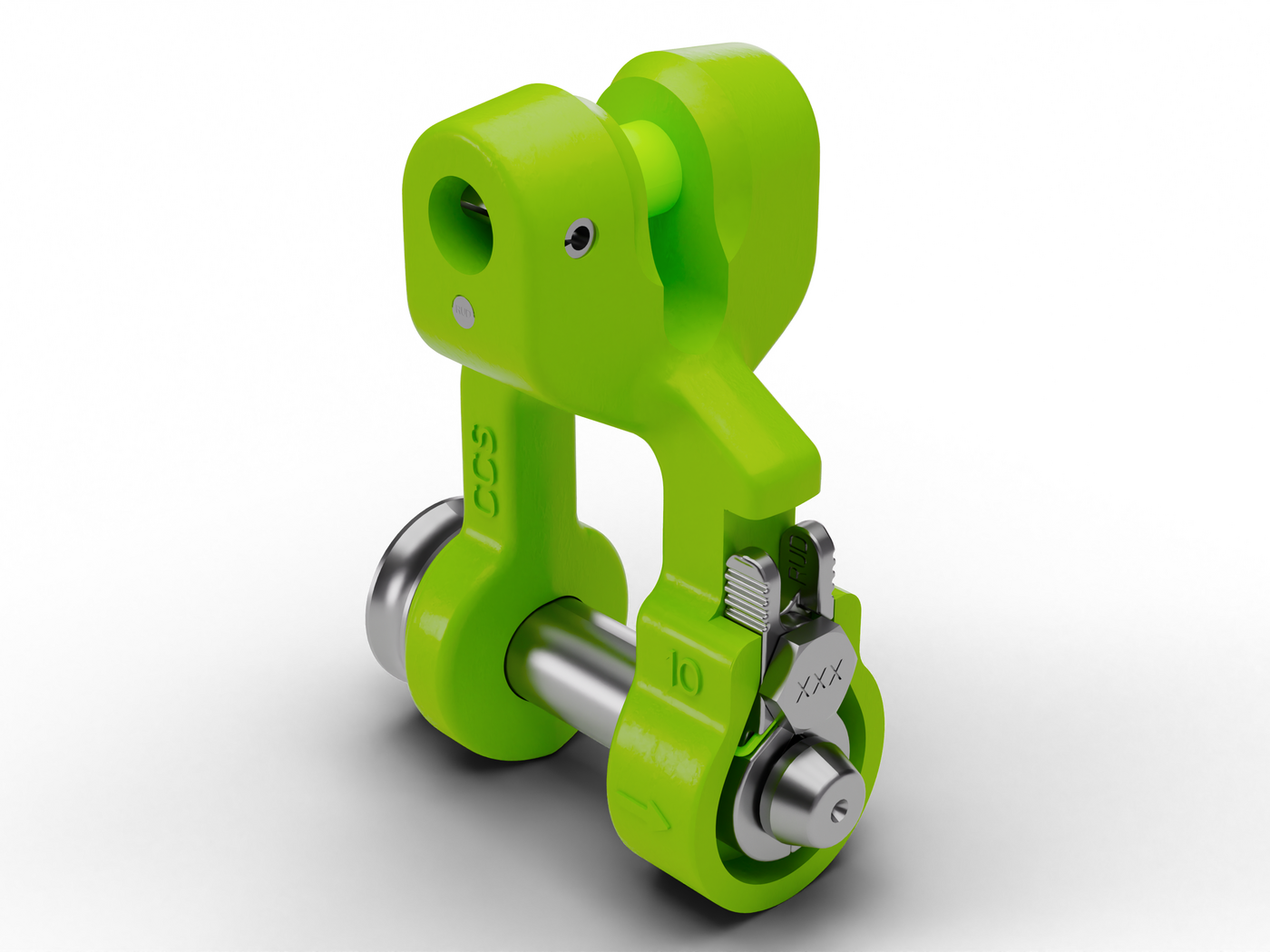

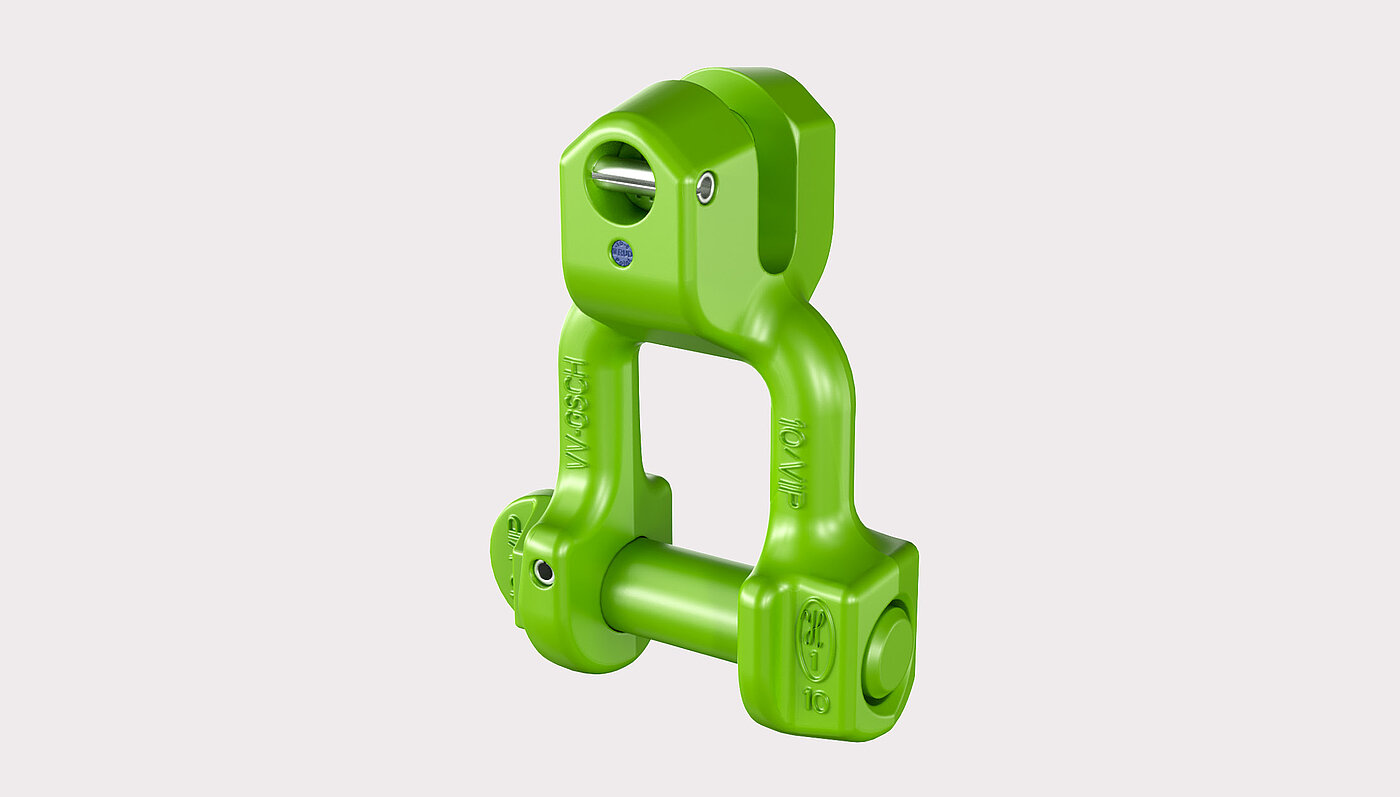

RUD TECDOS drive technology - foolproof high dynamic shackle

The high tensile high dynamic shackle of TECDOS drive technology have an integrated safety thread in the shackle bracket. Smooth bolt support in the shackle on both sides (bolt is turnable).
Owing to the turned clevis connection, it is extensively resistant to bending.
The shackle bolt with special thraed, thus distinctive in comparison to other shackle bolts, is delivered to you completely pre-assembled with TECDOS connecting bolt and tensioning sleeve.

Advantages of RUD foolproof high dynamic shackle

• Smooth bolt support in the shackle on both sides. The bolt is turnable
• No bending strength in the thread (only a securing function)
• Optimal adaptation - max. mouth width with the smallest shackle bolt
• Owing to the turned clevis connection, it is extensively resistant to bending
• Long term securing by driving in the pre-assembled tensioning sleeve
• Special thread, thus distinctive in comparison to other shackle bolts
• Pre-assembled connecting bolt and tensioning sleeve

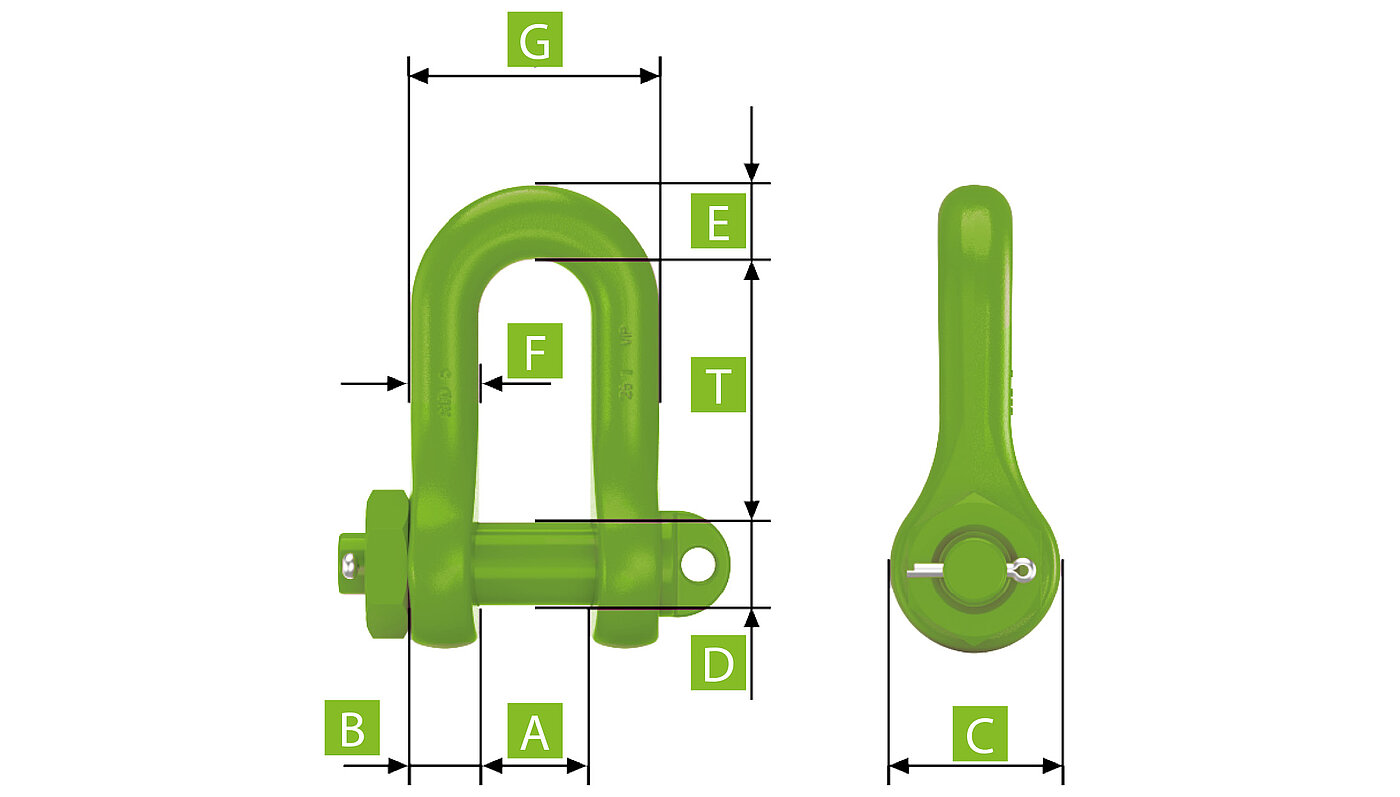

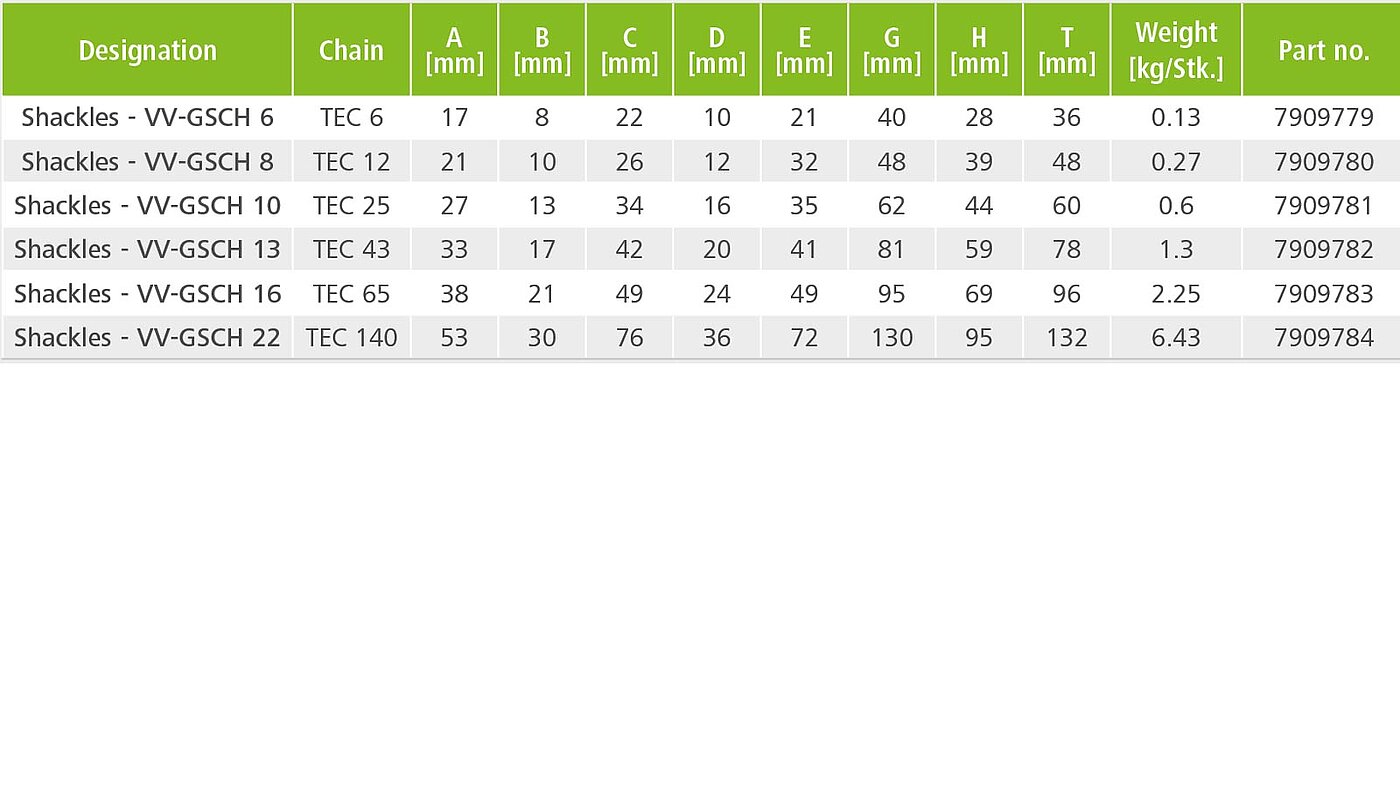

Product variants and technical data of RUD foolproof high dynamic shackle

Attention, this component has been modified for TECDOS applications.
Standard components from the RUD VIP Family are suitable for TECDOS drive chains.
